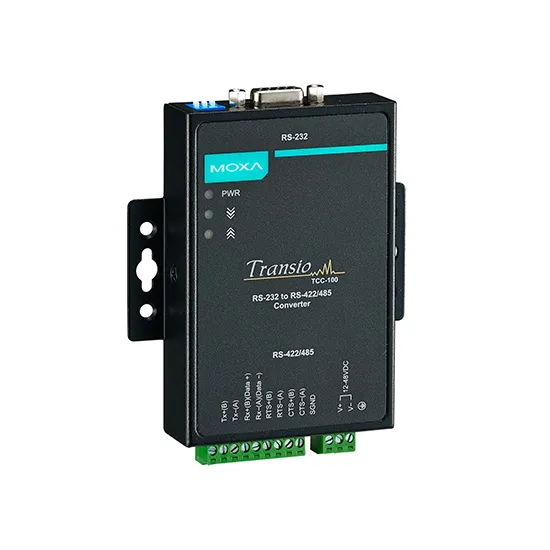

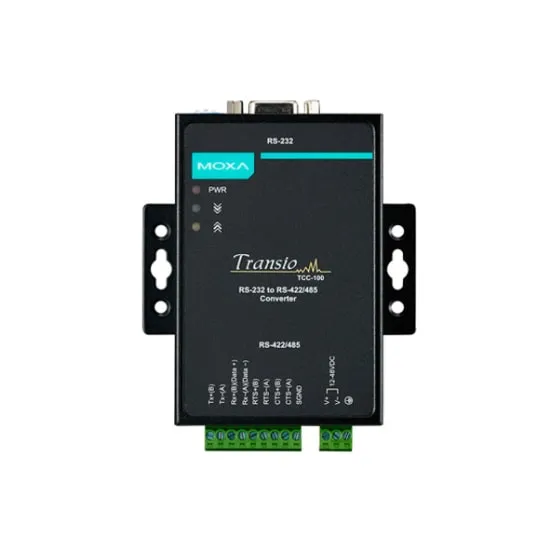

MOXA TCC-100I RS-232 to RS-422/485 Converter

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction

The TCC-100/100I Series of RS-232 to RS-422/485 converters increases networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, an external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I Series converters are ideal solutions for converting RS-232 signals to RS422/485 in critical industrial environments.

Certifications




Features


  • RS-232 to RS-422 conversion with RTS/CTS support
  • RS-232 to 2-wire or 4-wire RS-485 conversion
  • Metal housing
  • -20 to 60°C operating temperature
  • 2 kV isolation protection
Serial Converters : RS-232 port specifications
Serial connection type DB9 female
Signal TxD, RxD, RTS, CTS, GND
Serial Converters : RS-422/RS-485 port specifications
Serial connection type Terminal input
Signal TxD+, TxD-, RxD+, RxD-, RTS, CTS, GND Data+, Data
RS-485 Flow Control ADDC
Serial Converters : Converter Specifications
Data transfer speed ( Baudrate ) 0.05Kbps to 921.6Kbps
Protection against electrostatic discharge 4KV
Electrical isolation Yes : 2KV
Serial Converters : Power Requirements
Type of power input Terminal input
Input Power 12V DC to 48V DC, 0.15A
Power Consumption 12V DC, 0.15A
Protection against reverse voltage Yes
Protection against overflow Yes : Protection against two short signals
Serial Converters : Physical Characteristics
Dimensions 67x100.4x22mm
Standards and Certifications FCC Class A , UL, CE, UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone2 Ex nA nC op is IIC T4 Gc, IECEx Ex nA nC IIC T4 Gc , : EN 55022/24 , CISPR 22, EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-8 (PFMF) , EN 61000-4-11 , RoHS, CRoHS, WEEE , IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, DNV, GL
Housing Metal
Operating Temperature -20 to 60 ° C
Storage Temperature -40 to 85 ° C
Operation Humidity 5% to %95 non-condensing
Weight 0.148Kg
