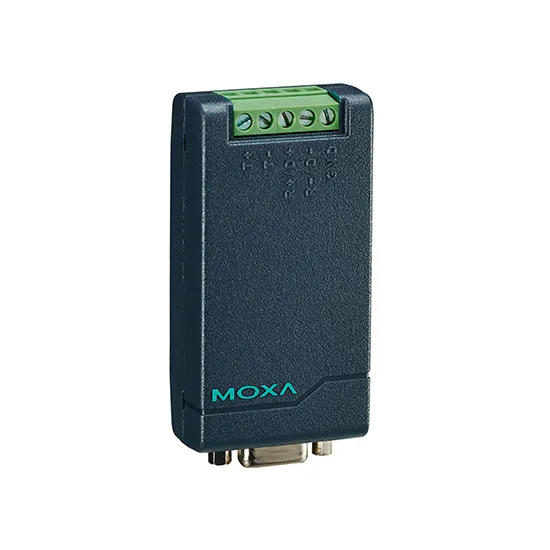

MOXA TCC-80 RS-232 to RS-422/485 Converter
MOXA TCC-80 RS-232 to RS-422/485 Converter
- Model: TCC-80
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The TCC-80/80I media converters provide complete signal conversion between RS-232 and RS-422/485, without requiring an external power source. The converters support both half-duplex 2-wire RS-485 and full-duplex 4-wire RS-422/485, either of which can be converted between RS232’s TxD and RxD lines.
Automatic data direction control is provided for RS-485. In this case, the RS-485 driver is enabled automatically when the circuitry senses the TxD output from the RS-232 signal. This means that no programming effort is required to control the transmission direction of the RS-485 signal. Moreover, the TCC-80I’s patented LED port power indicator lets you check whether or not the TCC-80I is receiving enough power.
Certifications
Features
- Converts RS-422 and both 2-wire and 4-wire RS-485
- Terminal block serial connector
- housing: Plastic top cover, metal bottom plate
- 0 to 60°C operating temperature
Serial Converters : RS-232 port specifications | |
Serial connection type | DB9 Male |
Signal | TxD, RxD, GND, Loop-back wiring: RTS to CTS, DTR to DSR and DCD |
Serial Converters : RS-422/RS-485 port specifications | |
Signal | TxD+, TxD-, RxD+, RxD-, GND, Data+, Data |
RS-485 Flow Control | ADDC |
Serial Converters : Converter Specifications | |
Data transfer speed ( Baudrate ) | 0.05Kbps to 115.2Kbps |
Protection against electrostatic discharge | Contact: 4 kV , Air: 8 kV |
Electrical isolation | No |
Serial Converters : Power Requirements | |
Type of power input | Terminal input |
Input Power | 5V DC to 12V DC |
Power Consumption | 5V DC, 0.01A |
Protection against reverse voltage | No |
Protection against overflow | No |
Serial Converters : Physical Characteristics | |
Dimensions | 42x80x22mm |
Standards and Certifications | RoHS, CRoHS, WEEE, Safety: UL 60950-1, EMC: EN 55022/24, EMI: CISPR 22, FCC Part, EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge) , EN 61000-4-6 (CS), EN 61000-4-8 (PFMF) |
Housing | ABS + PC Plastic |
Operating Temperature | 0 to 60 ° C |
Storage Temperature | -20 to 75 ° C |
Operation Humidity | 5% to %95 non-condensing |
Weight | 0.05Kg |
