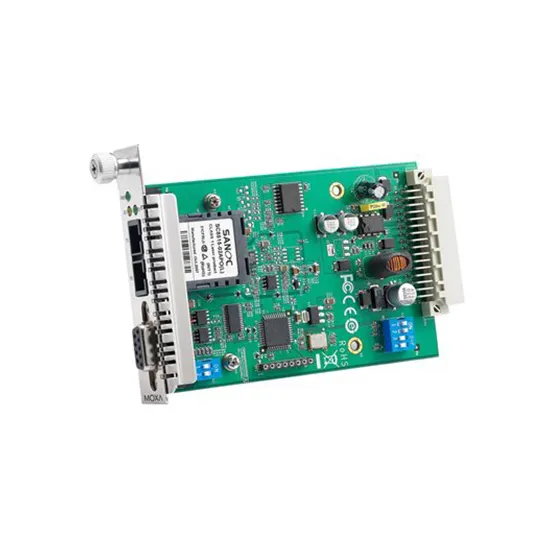

MOXA TCF-142-S-SC-RM Serial to Fiber Converter

MOXA TCF-142-S-SC-RM Serial to Fiber Converter
  • Model: TCF-142-S-SC-RM
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction

The TCF-142-RM Series slide-in modules are serial-to-fiber converters that work with the TRC-190 chassis. The modules convert from the RS-232, RS-422, or RS-485 signal to a fiber-optic signal.

Automatic Baudrate Detection

The TCF-142-RM Series can automatically detect the serial baudrate. This is an extremely convenient feature. Even if a device’s baudrate is changed, the signal will still be transmitted through the media converter without any problem.


Certifications




Features


  • 2 x RS-232/422/485 ports,1 x 100Mbps F(x) single-mode port with SC connector
  • Metal body
  • 0 to 60°C operating temperature
  • slide-in modules for the NRack System
  • Supports ring and point-to-point transmission
converter : Converter specifications
Data transfer speed 50 bps to 921.6 kbps (supports non-standard baudrates)
Maximum data transmission distance 40 km
Minimum output power converter -
Sensitivity to receiving information -
Wavelength TX : 1290 to 1330, RX : 1100 to 1650
converter : Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) 150 mA @ 12 VDC
Power Input Plugin ( Redundant ) No
converter : Standards and protocols
Point-to-point topology Yes
Ring topology Yes
RS-232 Signals TxD, RxD, GND
RS-422 Signals Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals Tx+, Tx-, Rx+, Rx-, GND
converter : Interface
10/100Mb RJ45 (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports Yes : 1 x single-mode port with SC connector
10/100/1000Mb (Gigabit) POE Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
Number of 10/100Mb PoE port No
USB No
DSL No
Serial port Yes : RS-232/422/485 ports
Other ports No
converter : General
Fan / Fanless Fanless
MTBF 514,926 hrs
Require cable diameter G.652
converter : Physical Characteristics
Dimensions 86.8 x 136.5 x 21 mm (3.42 x 5.37 x 0.83 in)
Housing Metal
Installation -
Isolation No
Operating Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Protection against excessive consumption -
Protection against reverse flow -
Standards and Certifications EMC, EMI, EMS, Environmental Testing, Safety, Vibration
Storage Temperature -20 to 75°C (-4 to 167°F)
Weight 0.1Kg
converter : LED Indicators
LED Per Port Yes
Power Yes
converter : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
