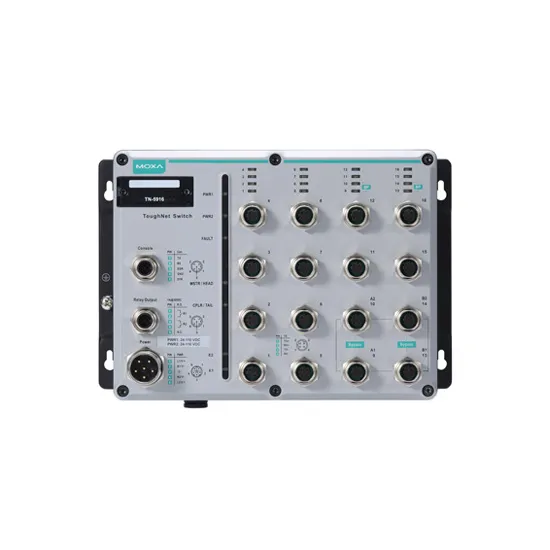

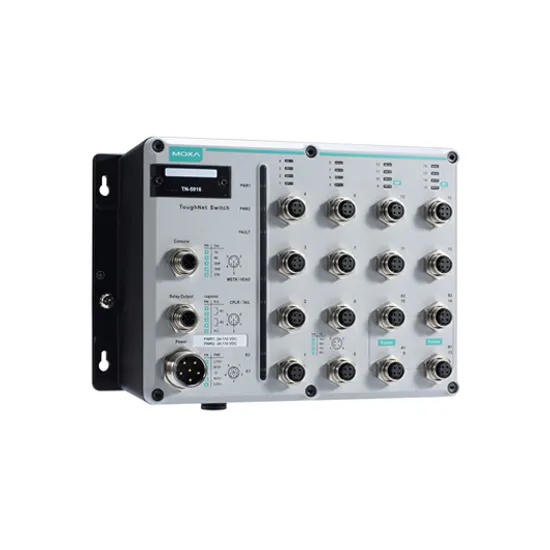

MOXA TN-5916-WV-T NAT Router

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction

The ToughNet TN-5900 Series, designed for rolling stock backbone networks, are high-performance M12 routers with four bypass relay backbone ports. They support NAT and routing functionality to facilitate the deployment of applications across networks. The TN-5900 Series routers use M12 and other circular connectors to ensure tight, robust connections that guarantee reliability against environmental disturbances, such as vibration and shock.

The TN-5900 Series routers provide a wide power input range of 24 to 110 VDC. TN-5900 Series switches operate in an extended operating temperature range of -40 to 75°C and are compliant with the mandatory requirements of EN 50155/50121-4, making them suitable for a variety of industrial applications.


Certifications




Features

  • 12 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector), 4 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector with bypass relay)
  • Designed for rolling stock backbone networks
  • Dual bypass relay
  • Isolated power input range from 24 to 110 VDC
  • Complies with all EN 50155 mandatory test items1
  • Turbo Ring and RSTP/STP for network redundancy
Router : Interface
Ethernet Ports 12 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector), 4 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector with bypass relay)
Serial Ports 1 x Console Port (M12 A-coded male connector)
Input/Output Channels 2 x relay Alarm Contact output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
Router : LED Interface
LED Indicators STATE, PWR1, PWR2, FAULT, 10/100M
Router : General
Supported Protocols Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/ SSH, Web Browser (HTTP/HTTPS), Windows Utility, 802.1Q, IGMP v1/v2, Static Multicast, Back Pressure Flow Control, DHCP server, Flow control, HTTP, IPv4, LLDP, Port Mirror, QoS/CoS/ToS, RARP, SMTP, SNMP Inform, SNMP Trap, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Account Management, RFC1213, Link Aggregation, RSTP, Static Port Trunk, STP, Turbo Ring v2, VRRP, Broadcast storm protection2, HTTPS/SSL, Local Account Accessibility, TACACS+2, Port Lock, SSH, NTP Server/Client, SNTP, Static Route, RIPV1/V2
MTBF 556,025 hrs
Router : Power Requirements
Input Voltage 24/36/48/72/96/110 VDC, Redundant dual inputs
Input Current 0.85 A @ 24 VDC, 0.17 A @ 110 VDC
Operating Voltage 16.8 to 137.5 VDC
Overload Current Protection Yes
Reverse Polarity Protection Yes
Power Connector M23 connector
Router : Physical Characteristics
Housing Metal
IP Rating IP54
Dimensions 250 x 175.8 x 116.3 mm (9.84 x 6.92 x 4.58 in)
Installation DIN-rail mounting (optional), Wall mounting
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC, EMS, Freefall, FCC, EN 50121-4, EN 50155, IEC 60571, Railway Fire Protection, Safety, Shock, Vibration
