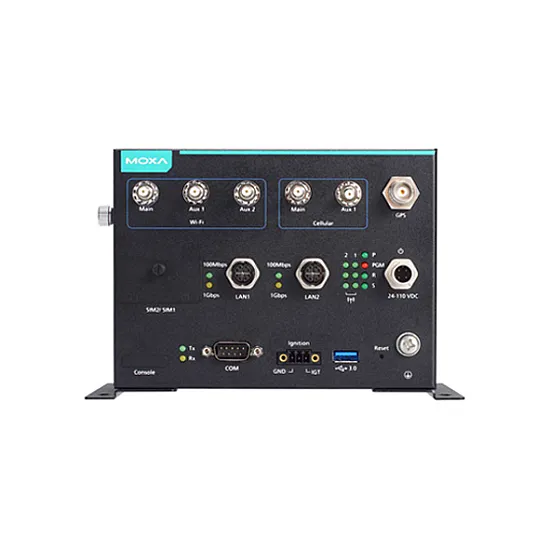

MOXA UC-8540-LX Industrial Computer
MOXA UC-8540-LX Industrial Computer
- Model: UC-8540-LX
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
Moxa’s UC-8540 is an innovative computing platform designed specifically for transportation applications. Its single-sided I/O design is ideal for
vehicle applications, which typically do not have enough room for installing communication devices. Front-side access makes it easy to install or
change SIM cards and wiring cables. Users can install or change wireless modules, mSATA cards, and the RTC battery from the top or the bottom
for easy maintenance.
The UC-8540 has 1 mini-PCIe slot with a USB signal to support a 4G/LTE module and 1 slot with PCIe/USB signal to support a Wi-Fi module. The 4G/
LTE module has two SIM card slots, which can be used to enable redundant cellular network communications or geo-fencing SIM card selection by
leveraging the built-in MIRF 2.0, a Moxa device remote-management platform with wireless management.
The UC-8540 can be used as a communication-centric computing platform in applications such as vehicle-to-ground communication gateway,
TCMS T2G (train-to-ground) gateway, mobile condition monitoring unit, Ethernet Consist Network T2G gateway and onboard wireless automated
fare collection unit.2
The UC-8540 uses an open platform based on Debian 8 with Linux kernel 4.1, allowing solution providers to manage software packages via
Debian’s APT (advanced packaging tools), or develop software applications with Moxa’s API Library and GNU C Library.
Certifications
Features
- Supports 1 WWAN connection with 2 SIM card slots
- Supports 1 WLAN (IEEE 802.11b/g/n/ac) connection
- Single-panel I/O design for reduced installation space and easier maintenance
- Front-side access panel for easy maintenance
- Isolated 24 to 110 VDC power input with power-ignition function suitable for vehicle applications
- EN 50155 Tx (-40 to 70°C) operating temperature for harsh environments
- Complies with all EN 50155 mandatory test items1
Industrial Computer : Computer | |
CPU | Armv7 Cortex-A7 dual-core 1 GHz |
DRAM | 1 GB DDR3L |
Flash | - |
OS (pre-installed) | Linux Debian 8 (Linux kernel v4.1) |
Industrial Computer : Interface | |
Console Port | RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1) |
LAN | 2 per port (10/100/1000 Mbps) |
Magnetic Isolation Protection | No |
Serial Standards | RS-232/422/485 |
ESD Protection | No |
Industrial Computer : Serial Signals | |
RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
Industrial Computer : LED Indicators | |
System | Power x 1, System Ready x 1, Programmable x 1 |
LAN | 2 per port (10/100/1000 Mbps) |
Serial | 2 per port (Tx, Rx) |
Industrial Computer : Power Requirements | |
Input Voltage | 24 to 110 VDC |
Input Current | 1.66 A @ 24 VDC, 0.36 A @ 110 VDC |
Power Consumption | 40 W (max.) |
Industrial Computer : Physical Characteristics | |
Dimensions | 190 x 120 x 125 mm (7.46 x 4.72 x 4.92 in) |
Housing | Metal |
Operating temperature | -25 to 55°C (-13 to 131°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Relative humidity | 5 to 95% (non-condensing) |
EMC | EN 55032/24 |
Weight | 1.6kg |
Anti-Vibration | IEC 60068-2-64, IEC 61373, EN 50155 |
Safety | EN 60950-1, UL 60950-1 |
Green Product | RoHS, CRoHS, WEEE |
Mounting | Wall mounting |
