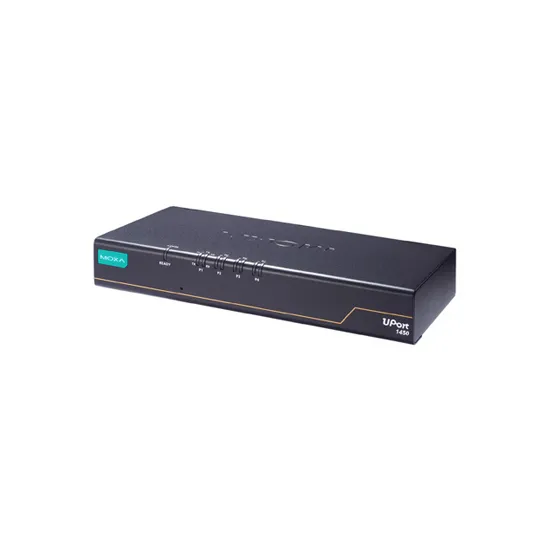

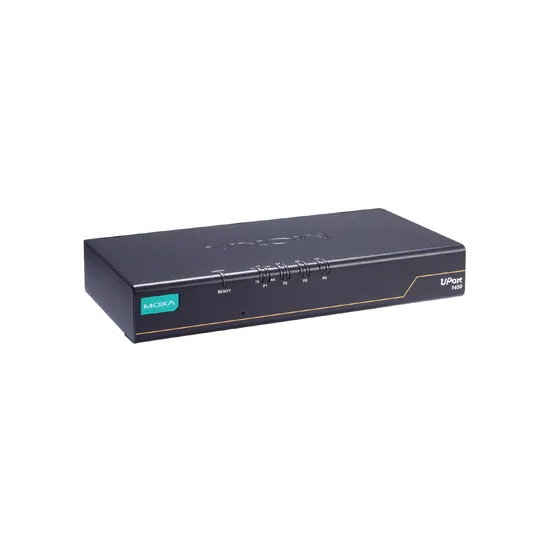

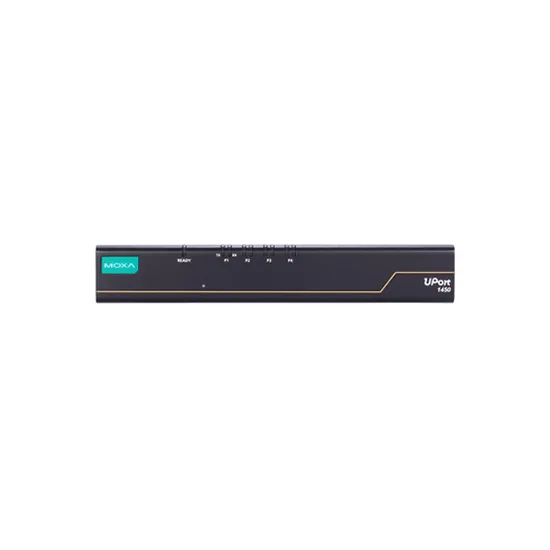

MOXA UPort 1450I-G2-T USB to Serial Converter

MOXA UPort 1450I-G2-T USB to Serial Converter
  • Model: UPort 1450I-G2-T
$0.00
Ex Tax: $0.00

MOXA UPort 1450I-G2-T FEATURES

  • USB 3.2 Gen 1 interface
  • Supports maximum 921.6 kbps baud rate
  • Power Input: USB bus power / Power adapter
  • Supports Speeds 5 Gbps, 480 Mbps, and 12 Mbps
  • 4 x RS-232/422/485 Serial port
  • Compatible Driver with Windows, Linux, macOS
  • 2KV Isolation
  • -40 to 75°C operating temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA UPort 1450I-G2-T INTRODUCTION

The UPort® 1400-G2 Series USB-to-serial converters are ideal for laptop or workstation computers that need serial port expansion. They are essential for computers that need to connect different serial devices in the field or need separate interface converters for devices without a standard COM port or DB9 connector. The computers also come with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer. The UPort® 1400-G2 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA UPort 1450I-G2-T USB to Serial Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the UPort 1410-G2, UPort 1450-G2-T, and UPort 1450I-G2 models in the MOXA UPort 1400-G2 Series.

MOXA UPort 1450I-G2-T CERTIFICATION



USB-to-Serial : USB Interface
Interface Type USB 3.2 Gen 1, USB 1.1/2.0 compliant
Connection type USB type B
Speed 5 Gbps, 480 Mbps, 12 Mbps
USB-to-Serial : Serial Interface
Total number of serial ports 4 x RS-232/422/485 Ports
Serial connection type DB9-M
Serial Communication Parameters Data Bits: 5, 6, 7, 8 and Stop Bits: 1, 1.5, 2 and Parity: None, Even, Odd, Space, Mark
Flow Control RTS/CTS, XON/XOFF
FIFO 512bytes
Data transfer speed ( Baudrate ) 0.05Kbps to 921.6Kbps
Protection against electrostatic discharge -
Electrical isolation Yes: 2KV
USB-to-Serial : Compatible Operating Systems
Windows 98 , Windows ME No
Windows 2000 Yes
Windows XP x86, x64 , Windows 2003 x86, x64 Yes
Windows Vista x86, x64 Yes
Windows 7 x86, x64 Yes
Windows 8.1 x86,x64 , Windows 8 x86, x64 Yes
Windows 2012 x64 Yes
Windows 2008 Yes
WinCE 5.0 , WinCE 6.0 Yes
Linux 2.4.x Yes
Linux 2.6.x Yes
Linux 3.0.x Yes
USB-to-Serial : Power Requirements
Power Consumption (Output Adapter) 12V DC, 0.445A on USB 2.0 and 0.633A on USB 3.2
USB-to-Serial : Physical Characteristics
Dimensions 185 x 30 x 90.6 mm (7.28 x 1.18 x 3.57 in)
Safety IEC 62368-1, EN 62368-1, UL 62368-1 (CB), KC
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV, IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz, IEC 61000-4-8 PFMF
Green Product Standard RoHS, CRoHS, WEEE
Housing Metal
Operating Temperature -40 to 75°C (32 to 140°F)
Storage Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Weight 373 g (0.82 lb)
