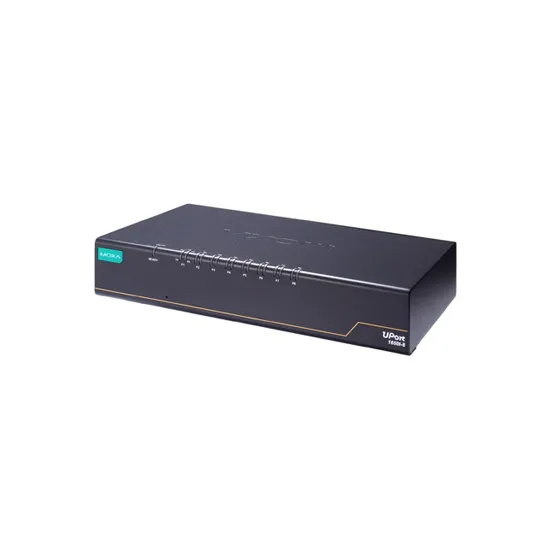

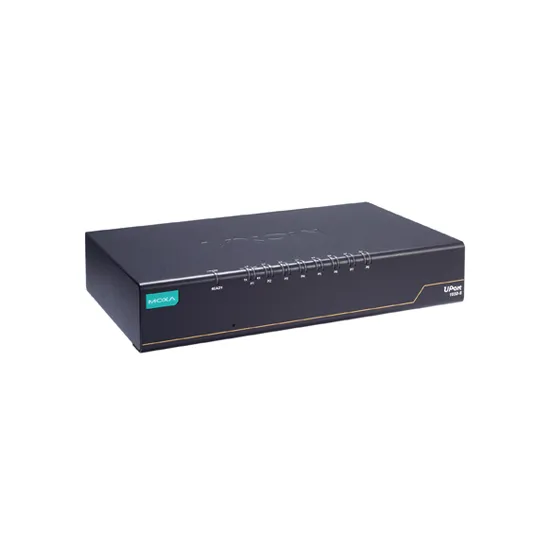

MOXA UPort 1610-8-G2 USB to Serial Converter






MOXA UPort 1610-8-G2 USB to Serial Converter
- Model: UPort 1610-8-G2
$0.00
Ex Tax: $0.00

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA UPort 1610-8-G2 INTRODUCTION
The UPort® 1600-8-G2 Series USB-to-serial converters are ideal for laptop or workstation computers that need serial port expansion. They are essential for computers that need to connect different serial devices in the field or need separate interface converters for devices without a standard COM port or DB9 connector. The computers also come with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer. With the cascading capability of the UPort® 1650-8-G2-Hub, you can link up to 32 serial ports without a power adaptor to the UPort. The UPort® 1600-8-G2 Series converts from USB to RS-232/422/485. All products are compatible with legacy serial devices and can be used with instrumentation and point-of-sale applications.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA UPort 1610-8-G2 USB to Serial Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the UPort 1650-8-G2 model in the MOXA UPort 1600-8-G2 Series.
MOXA UPort 1610-8-G2 CERTIFICATION
USB-to-Serial : USB Interface | |
Interface Type | USB 3.2 Super Speed capability |
Connection type | USB type B |
Speed | 480Mbps |
USB-to-Serial : Serial Interface | |
Total number of serial ports | 8 RS-232 Ports |
Serial connection type | DB9-M |
Serial Communication Parameters | Data Bits : 5, 6, 7, 8 and Stop Bits : 1, 1.5, 2 and Parity : None, Even, Odd, Space, Mark |
Flow Control | RTS/CTS, XON/XOFF |
FIFO | RTS/CTS, XON/XOFF |
Data transfer speed ( Baudrate ) | 0.05Kbps to 921.6Kbps |
Protection against electrostatic discharge | - |
Electrical isolation | No |
USB-to-Serial : Compatible Operating Systems | |
Windows 98 , Windows ME | No |
Windows 2000 | No |
Windows XP x86, x64 , Windows 2003 x86, x64 | No |
Windows Vista x86, x64 | No |
Windows 7 x86, x64 | Yes |
Windows 8.1 x86,x64 , Windows 8 x86, x64 | Yes |
Windows 2012 x64 | Yes |
Windows 2008 | Yes |
WinCE 5.0 , WinCE 6.0 | No |
Linux 2.4.x | No |
Linux 2.6.x | No |
Linux 3.0.x | No |
USB-to-Serial : Power Requirements | |
Power Consumption (Output Adapter) | 12V DC, 0.18A |
USB-to-Serial : Physical Characteristics | |
Dimensions | 216 x 41.5 x 121.6 mm (8.50 x 1.63 x 4.79 in) |
Safety | IEC 62368-1,EN 62368-1,UL 62368-1 (CB), KC |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV, Signal: 0.5 kV, IEC 61000-4-6 CS: 3 V; 150 kHz to 80 MHz, IEC 61000-4-8 PFMF |
Green Product Standard | RoHS, CRoHS, WEEE |
Housing | Metal |
Operating Temperature | 0 to 60°C (32 to 140°F) |
Storage Temperature | 0 to 60°C (32 to 140°F) |
Operation Humidity | 5 to 95% (non-condensing) |
Weight | 650 g (1.43 lb) |
