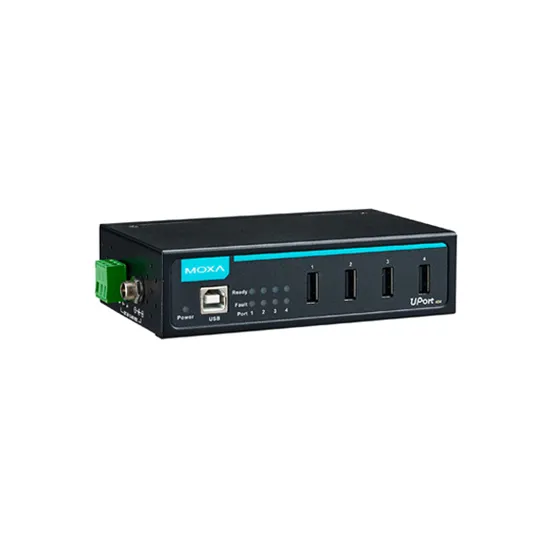

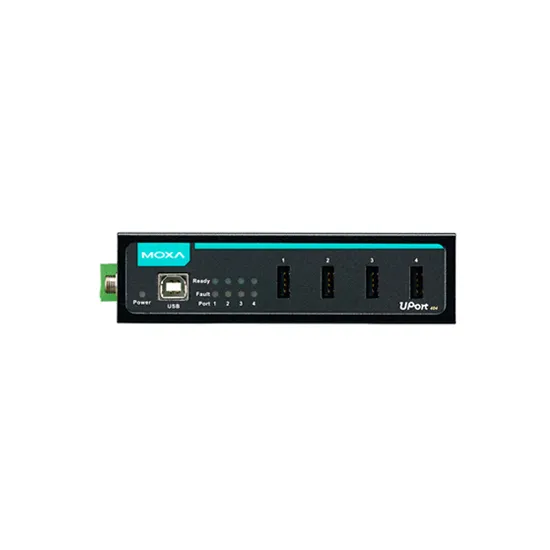

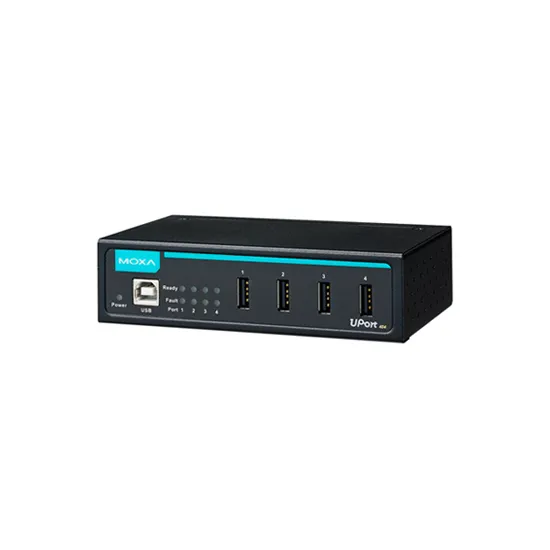

MOXA UPort 404 4-Port Industrial USB Hub
MOXA UPort 404 4-Port Industrial USB Hub
- Model: UPort 404
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs.
In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.
Certifications
Features
- 4 x USB 1.1/2.0 ports
- 12 to 40 VDC dual power inputs
- Aluminum body
- 0 to 60°C operating temperature
usb hub : Interface | |
USB | Yes : 4 USB type A Ports |
Micro USB | No |
USB interface | No |
Upstream USB | Yes : 1 USB type B Port |
usb hub : Standards and protocols | |
Interface and ports standards | USB 2.0, USB 1.1 |
usb hub : Features and capabilities | |
Maximum cable length between each hub | - |
Maximum number of connected devices | - |
usb hub : Communication details | |
Maximum cable data transfer speed | 480Mbps for USB 2.0 and 12Mbps for USB 1.1 |
usb hub : General | |
Compatible operating systems | - |
usb hub : Power Requirements | |
Output Power USB Port | For each port with a maximum flow of 0.5A |
Input Power | 12V DC 1.3A, 24V DC 0.69A, 36V DC 0.47A |
usb hub : Physical Characteristics | |
Housing | Aluminium |
Weight | 0.85Kg |
Dimensions | 80x35x130mm |
Operating Temperature | 0 to 60 ° C |
Operation Humidity | 5% to %95 non-condensing |
Standards and Certifications | Safety: UL 508, LVD; EMC: CE, FCC; EMI: EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4, FCC Part 15 Subpart B Class A; EMS: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11; Green Product: RoHS, CRoHS, WEEE |
usb hub : LED Indicators | |
Status indicator | Yes |
usb hub : Package Checklist | |
Power adapter | Yes |
USB cable | Yes |
Hardware installation guide | Yes |
