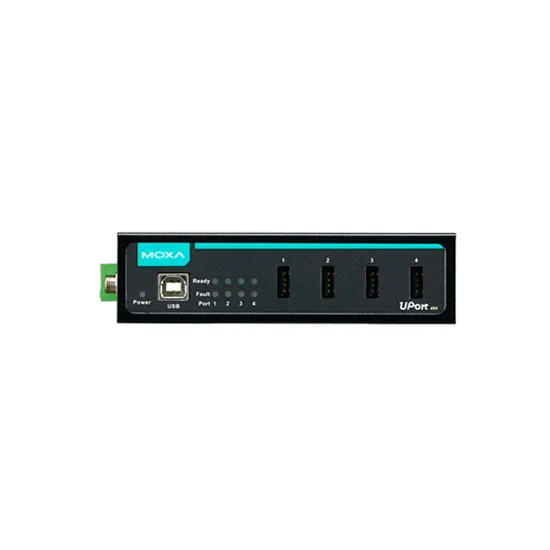

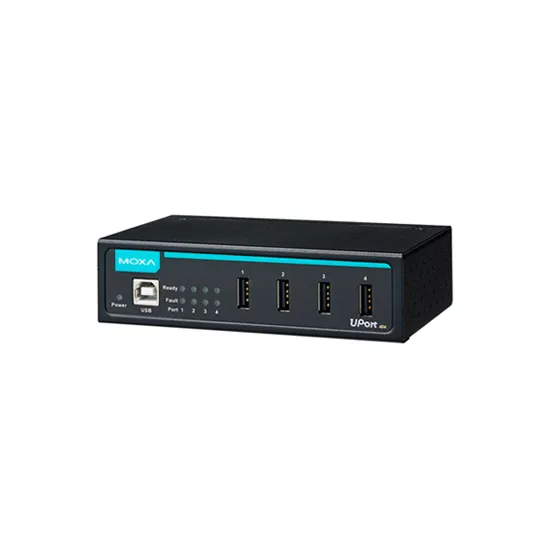

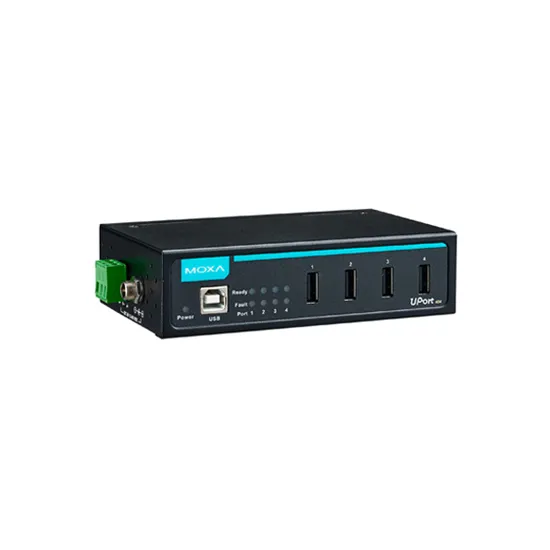

MOXA UPort 404-T 4-Port Industrial USB Hub

MOXA UPort 404-T 4-Port Industrial USB Hub
  • Model: UPort 404-T
$0.00
Ex Tax: $0.00

MOXA UPort 404-T FEATURES

  • 4 x USB 1.1/2.0 ports
  • 12 to 40 VDC dual power inputs
  • Aluminum body
  • -40 to 85°C operating temperature
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA UPort 404-T INTRODUCTION

The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs.

In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA UPort 404-T 4-Port Industrial USB Hub online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the UPort 407-T, UPort 404, and UPort 407 models in the MOXA UPort 404/407 Series.

MOXA UPort 404-T CERTIFICATION



USB Hub : Interface
USB Yes : 4 USB type A Ports
Micro USB No
USB interface No
Upstream USB Yes : 1 USB type B Port
USB Hub : Standards and protocols
Interface and ports standards USB 2.0, USB 1.1
USB Hub : Features and capabilities
Maximum cable length between each hub -
Maximum number of connected devices -
USB Hub : Communication details
Maximum cable data transfer speed 480Mbps for USB 2.0 and 12Mbps for USB 1.1
USB Hub : General
Compatible operating systems -
USB Hub : Power Requirements
Output Power USB Port For each port with a maximum flow of 0.5A
Input Power 12V DC to 40V DC, 12V DC 1.3A, 24V DC 0.69A, 36V DC 0.47A
USB Hub : Physical Characteristics
Housing Aluminium
Weight 0.85Kg
Dimensions 80x35x130mm
Operating Temperature -40 to 85 ° C
Operation Humidity 5% to %95 non-condensing
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 0 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1; Safety: UL 508; Freefall: IEC 60068-2-34; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB
USB Hub : LED Indicators
Status indicator Yes
USB Hub : Package Checklist
Power adapter Yes
USB cable Yes
Hardware installation guide Yes
