Introduction

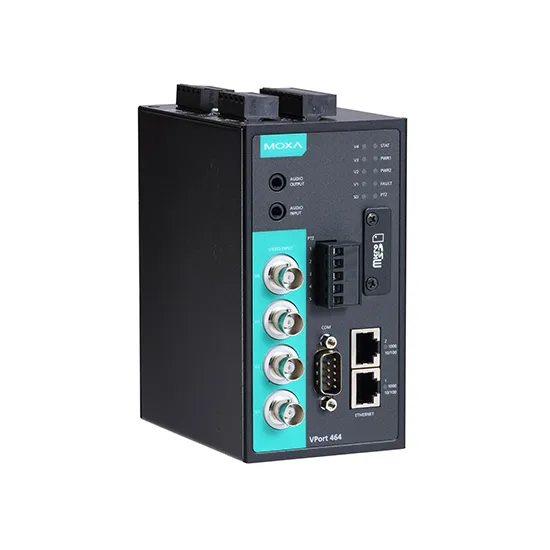

The VPort 464 4-channel industrial video encoder uses the H.264 video compression algorithm to provide the best video quality on the market but with a smaller bandwidth requirement than other video compression standards. In addition, to meet various requirements, each channel of the VPort 464 can support 2 video streams simultaneously or you can merge all 4 channels into 1 quad view stream using H.264 and MJPEG compression formats, providing greater flexibility for a variety of uses, including viewing, recording, and analysis. The rugged industrial design, which includes a -40 to 75°C operating temperature, IP30 protection, and industrial certifications, makes the VPort 464 suitable for harsh environments.
The VPort 464 comes with two Gigabit Ethernet ports and supports cascade mode and network redundancy. In addition, Moxa’s innovative DynaStream™ technology lets you change the video frame rate automatically, allowing you to control your network bandwidth budget and simplify network system management. The CBR Pro™ function guarantees the lowest packet loss for limited bandwidth transmissions to ensure that images will not exhibit the mosaic effect.
Certifications
Features
- Each channel supports 2 D1 30 fps streams simultaneously, or merges 1 quad stream 30 fps image into 4 channels
- Video latency under 200 ms
- DynaStream™ for optimized network efficiency
- ONVIF support for standardization and interoperability
- Local storage capability with microSD card slot
- 2 x 10/100Mbps T(x) ports
- 4 x Video Input, Video Output via Ethernet, 2 x independent H.264 or MJPEG video streams
- 1 x RS-232 or RS-422/485 PTZ port, and 1 x RS-232 or RS-422/485 COM port
- -25 to 60°C operating temperature
