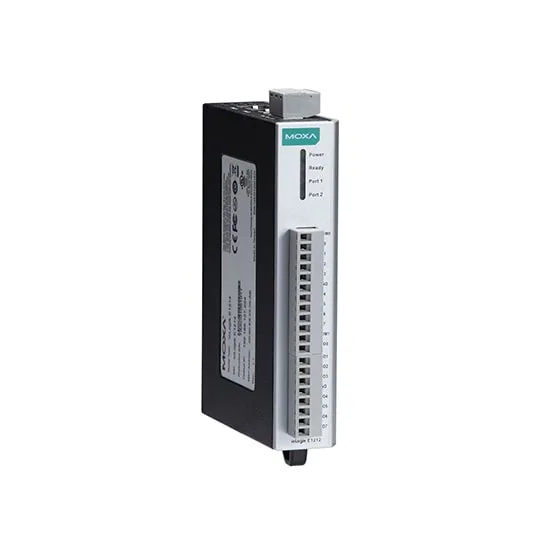

MOXA ioLogik E1211 Ethernet Remote I/O
- Model: ioLogik E1211
Introduction
The ioLogik E1200 Series supports the most often-used protocols for retrieving I/O data, making it capable of handling a wide variety of applications. Most IT engineers use SNMP or RESTful API protocols, but OT engineers are more familiar with OT-based protocols, such as Modbus and EtherNet/IP. Moxa's Smart I/O makes it possible for both IT and OT engineers to conveniently retrieve data from the same I/O device. The ioLogik E1200 Series speaks six different protocols, including Modbus TCP, EtherNet/IP, and Moxa AOPC for OT engineers, as well as SNMP, RESTful API, and Moxa MXIO library for IT engineers. The ioLogik E1200 retrieves I/O data and converts the data to any of these protocols at the same time, allowing you to get your applications connected easily and effortlessly.
Certifications
Features
- 16 x DO
- 2-port Ethernet switch for daisy-chain topologies
- 12 to 36 VDC power input
- Plastic body
- -10 to 60°C operating temperature
Remote I/O : Interface | |
Digital Input and Output | Yes : 16 digital inputs |
Adjustable digital input and output | No |
Analog Input and Output | No |
Relay Output | No |
Thermal sensor input (RTD) | No |
Thermocouple input | No |
LAN | Yes : 2 RJ-45 10/100Mbps switch ports |
Serial port | No |
Remote I/O : Standards and protocols | |
Protocols | Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, HTTP |
Remote I/O : General | |
Compatible Softwares | Active OPC Server, MX-AOPC UA Suite, DA-Center, ioSearch, MXIO, Peer-to-peer |
Remote I/O : Physical Characteristics | |
Standards and Certifications | Safety: UL 508; EMI: EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15, Subpart B, Class A; EMS: EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Hazardous Location: UL/cUL Class I Diision 2, ATEX Zone 2 |
Operating Temperature | -10 to 60 ° C |
Storage Temperature | -40 to 85 ° C |
Operation Humidity | 5% to %95 Non-condensing |
