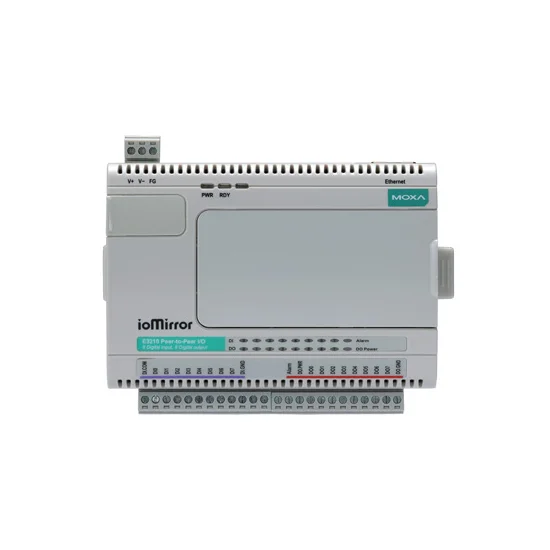

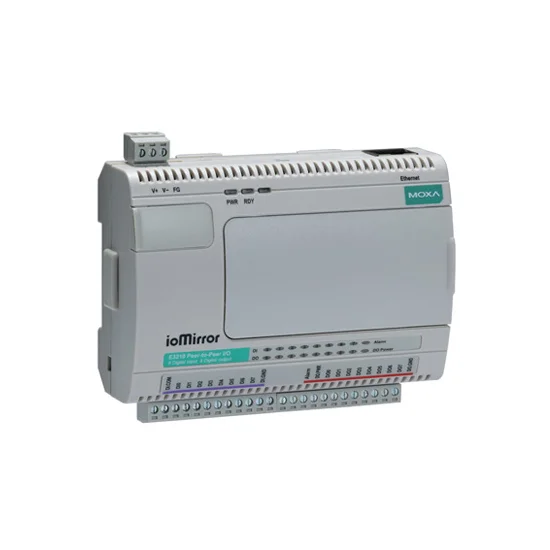

MOXA ioMirror E3210 Ethernet Peer-to-Peer I/O

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction

The ioMirror E3200 Series, which is designed as a cable-replacement solution to connect remote digital input signals to output signals over an IP network, provides 8 digital input channels, 8 digital output channels, and a 10/100M Ethernet interface. Up to 8 pairs of digital input and output signals can be exchanged over Ethernet with another ioMirror E3200 Series device or can be sent to a local PLC or DCS controller. Over a local area network, the ioMirror can achieve a low signal latency (typically less than 20 ms). With the ioMirror, remote sensors can be connected to local controllers or display panels over copper, fiber, or wireless Ethernet infrastructures, and signals can be transmitted over virtually unlimited distances, without noise problems.

Certifications




Features


  • 8 x DI, 8 x DO
  • 1 x RS-485 serial ports
  • 12 to 48 VDC power input
  • Plastic body
  • -10 to 60°C operating temperature
Remote I/O : Interface
Digital Input and Output Yes : 8 digital inputs and 8 digital outputs
Adjustable digital input and output No
Analog Input and Output No
Relay Output No
Thermal sensor input (RTD) No
Thermocouple input No
LAN Yes : 1 RJ-45 10/100Mbps port
Serial port No
Remote I/O : Standards and protocols
Protocols Modbus/TCP, TCP/IP, UDP, DHCP, Bootp, HTTP, SNTP
Remote I/O : General
Compatible Softwares -
Remote I/O : Physical Characteristics
Standards and Certifications Safety:UL 508; EMI:FCC Part 15, Subpart B, Class A, EN 55022 Class A; EMS:IEC 61000-4, IEC 61000-6; Shock:IEC 60068-2-27; Freefall:IEC 60068-2-32; Vibration:IEC 60068-2-6
Operating Temperature -10 to 60 ° C
Storage Temperature -40 to 85 ° C
Operation Humidity 5% to %95 Non-condensing
