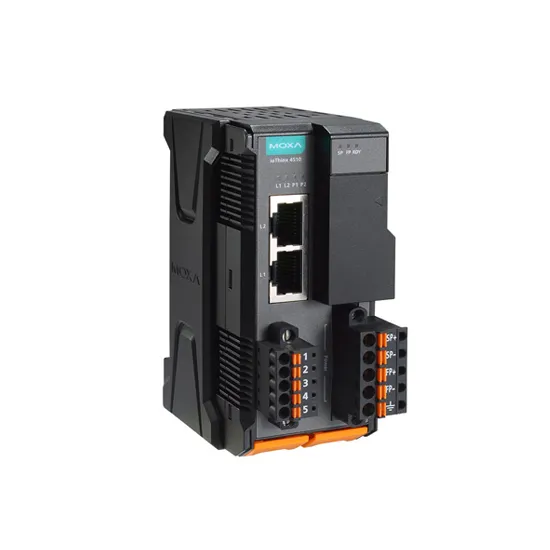

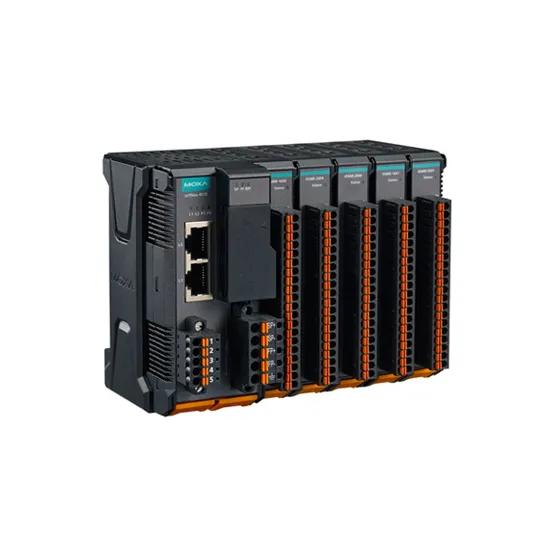

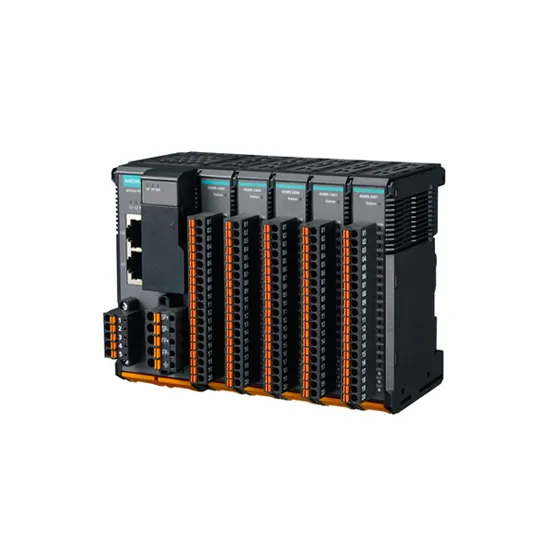

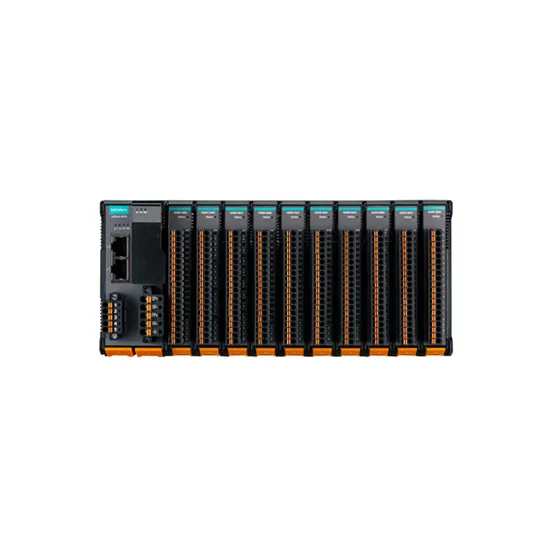

MOXA ioThinx 4510 Modular Remote I/O Adapter
MOXA ioThinx 4510 Modular Remote I/O Adapter
- Model: ioThinx 4510
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The ioThinx 4510 Series is an advanced modular remote I/O product with a unique hardware and software design, making it an ideal solution for a variety of industrial data acquisition applications. The ioThinx 4510 Series has a unique mechanical design that reduces the amount of time required for installation and removal, simplifying deployment and maintenance. In addition, the ioThinx 4510 Series supports Modbus RTU Master protocol for retrieving field site data from serial meters and also supports OT/IT protocol conversion. Easy Tool-Free Installation and Removal The ioThinx 4500 Series has a unique mechanical design that reduces the amount of time required for installation and removal.
In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN-rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN-rail. Removing all of the modules from a DIN-rail is also easy using the latch and release tab.
Certifications
Features
- 2 X 10/100Mbps T(x) ports, 1 x RS-232/422 or 2 x RS-485
- Supports up to 32 I/O modules
- Built-in Modbus RTU gateway function
- Supports Modbus/SNMP/RESTful API
- -20 to 60°C operating temperature
Modular remote i/o : Input/Output Interface | |
Buttons | Reset button |
Expansion Slots | Up to 32 |
Isolation | 3k VDC or 2k Vrms |
Modular remote i/o : Ethernet Interface | |
10/100BaseT(X) Ports (RJ45 connector) | 2, 1 MAC address (Ethernet bypass) |
Magnetic Isolation Protection | 1.5 kV (built-in) |
Modular remote i/o : Ethernet Software Features | |
Configuration Options | Web Console (HTTP/HTTPS), Windows Utility (IOxpress) |
Industrial Protocols | Modbus TCP Server (Slave), RESTful API, SNMPv1/v2c/v3, MQTT |
Management | SNMPv1/v2c/v3, DHCP Client, IPv4, HTTP, UDP, TCP/IP |
Modular remote i/o : Serial Interface | |
Connector | Spring-type Euroblock terminal |
Serial Standards | RS-232/422/485 |
Number of Ports | 1 x RS-232/422 or 2 x RS-485 (2 wire) |
Baudrate | 1200 bps to 115.2 kbps |
Flow Control | RTS/CTS |
Parity | None, Even, Odd |
Stop Bits | 1, 2 |
Data Bits | 8 |
Modular remote i/o : Serial Signals | |
RS-232 | TxD, RxD, RTS, CTS, GND |
RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
RS-485-2w | Data+, Data-, GND |
Modular remote i/o : Serial Software Features | |
Industrial Protocols | Modbus RTU Client (Master) |
Modular remote i/o : System Power Parameters | |
Power Connector | Spring-type Euroblock terminal |
Number of Power Inputs | 1 |
Input Voltage | 12 to 48 VDC |
Power Consumption | 800 mA @ 12 VDC |
Over-Current Protection | 1 A @ 25°C |
Over-Voltage Protection | 55 VDC |
Output Current | 1 A (max.) |
Modular remote i/o : Field Power Parameters | |
Power Connector | Spring-type Euroblock terminal |
Number of Power Inputs | 1 |
Input Voltage | 12/24 VDC |
Over-Current Protection | 2.5 A @ 25°C |
Over-Voltage Protection | 33 VDC |
Output Current | 2 A (max.) |
Modular remote i/o : General | |
MTBF | 1,451,040 hrs |
Modular remote i/o : Physical Characteristics | |
Wiring | Serial cable, 16 to 28 AWG, Power cable, 12 to 26 AWG |
Strip Length | Serial cable, 9 to 10 mm, Power cable, 12 to 13 mm |
Housing | Plastic |
Dimensions | 42.3 x 99 x 75 mm (1.67 x 3.9 x 2.95 in) |
Weight | 173.5 g (0.382 lb) |
Installation | DIN-rail mounting |
Operating Temperature | -20 to 60°C (-4 to 140°F) |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Ambient Relative Humidity | 5 to 95% (non-condensing) |
Altitude | Up to 4000 m |
EMC | EN 55032/24 |
EMI | CISPR 32, FCC Part 15B Class A |
EMS | IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF |
Shock | IEC 60068-2-27 |
Vibration | IEC 60068-2-6 |
