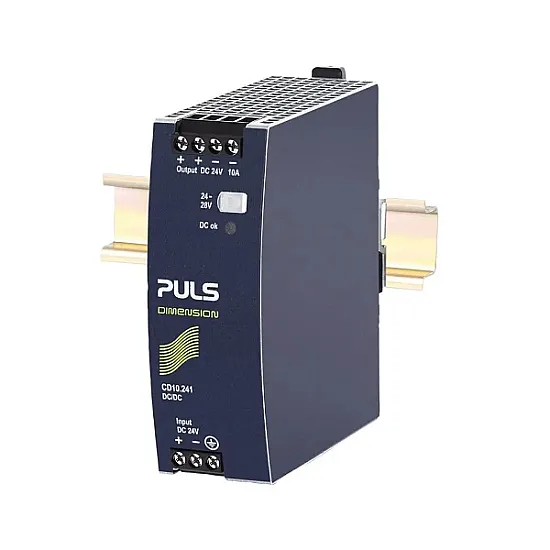

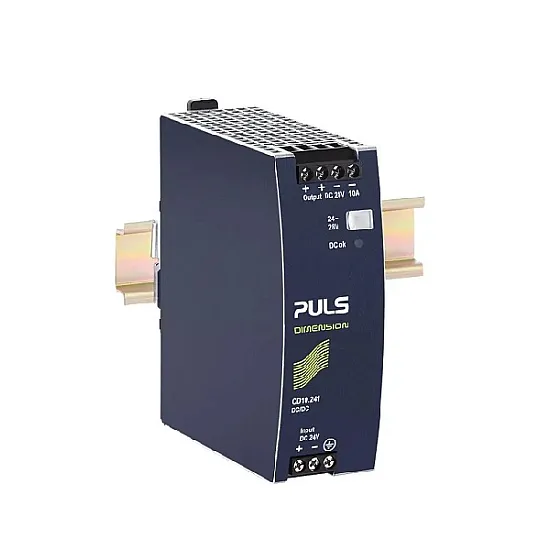

PULS CD10.241 DC/DC Converter

Introduction

The CD10.241 is a DIN-rail mountable DC/DC converter of the DIMENSION series which provides a floating, stabilized, and galvanically separated SELV/PELV output voltage.

The CD-Series is part of the DIMENSION power supply family. The most outstanding features of CD10.241 are the high efficiency, the small size, and the wide operating temperature range. The CD-Series includes all the essential basic functions.

The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C. High immunity to transients and power surges as well as low electromagnetic emission and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.

Certifications

Features

• 24V DC-Input

• Isolated 24Vdc Output

• Efficiency 94.2%

• Width only 42mm

• 20% Output Power Reserves

• Full Power Between -25°C and +60°C

• Soft-start Function

• Minimal Inrush Current Surge

• Reverse Input Polarity Protection
