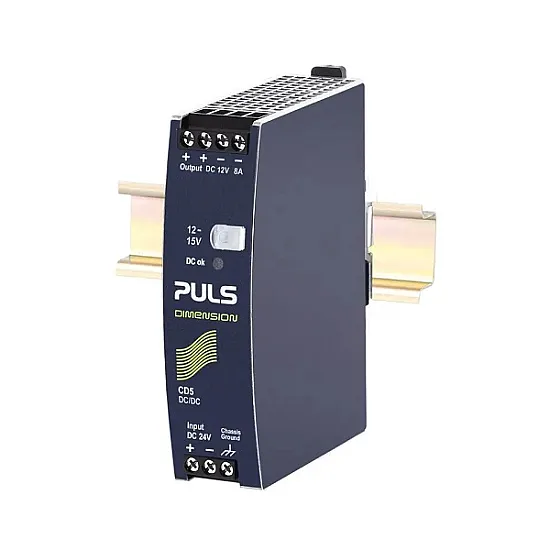

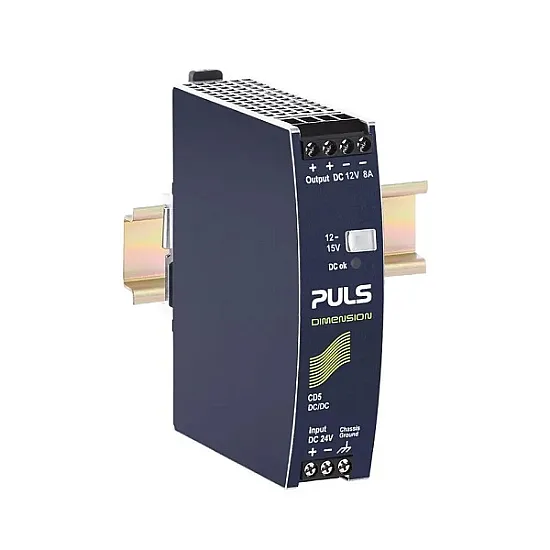

PULS CD5.121 DC/DC Converter
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The Dimension CD-Series offer DIN-rail DC/DC converters in the 92-120W output power range in a very compact housing. These DC/DC converters are allowed to run with a battery or similar sources.
The CD5.121 converts a 24V voltage to a 12V voltage. The CD5.121 includes all the essential basic functions and has a power reserve of 20% included. This extra power can be used continuously up to +45°C. The output is electrically isolated from the input in a safe way. The input is protected against reversed voltages and contains a soft start function.
Certifications
Features
- 24V DC-input
- Isolated 12Vdc output
- Efficiency up to 88.2%
- Width only 32mm
- 20% output power reserves
- Full power between -25°C and +60°C
- Soft-start function included
- Minimal inrush current surge
- Reverse input polarity protection
