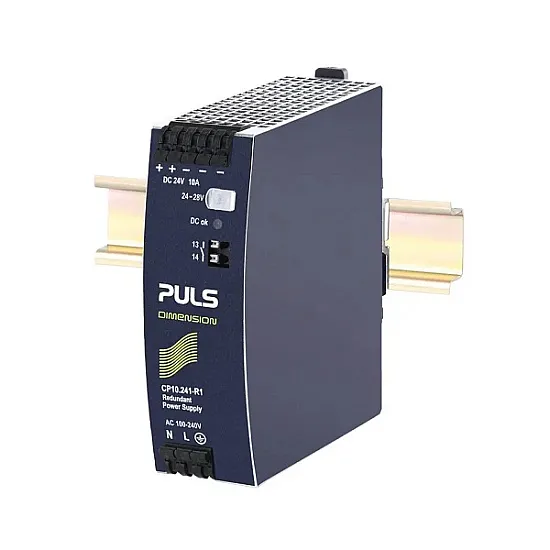

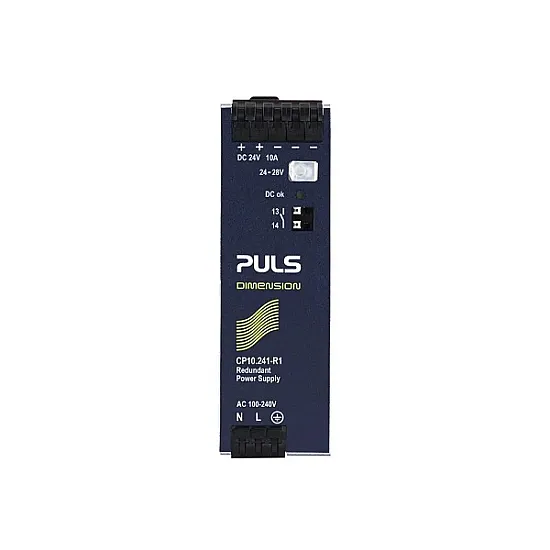

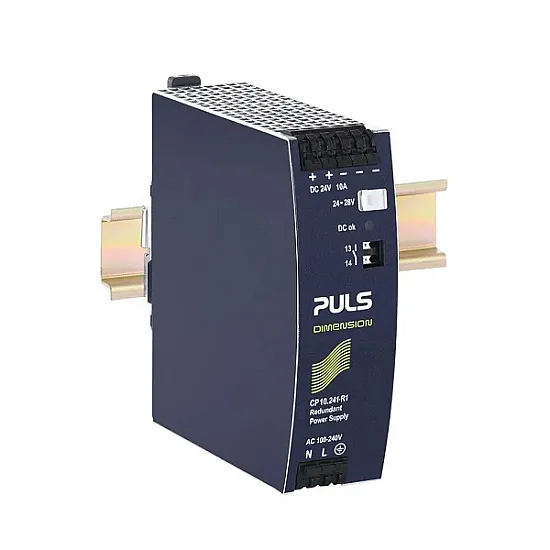

PULS CP10.241-R1 Power supply
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The Dimension CP-Series are cost-optimized power supplies without compromising quality, reliability, and performance. The most outstanding features of the CP10.241–R1/-R2/-R3 units are the high efficiency, electronic inrush current limitation, active PFC, wide operational temperature range, and extraordinarily small size. The units include a decoupling MOSFET for building 1+1 or n+1 redundant power supply systems. These redundancy power supplies come with three connection terminal options; screw terminals, spring clamp terminals or plug connector terminals which allow replacement on an active application.
CP10.242-R2 version feature an enhanced DC input voltage range. With high immunity to transients and power surges, low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package, makes this unit suitable for nearly every application.
Certifications
Features
- Built-in Decoupling Mosfet for 1+1 and n+1 Redundancy
- Efficiency up to 94.7%
- 20% Output Power Reserves
- Safe HiccupPLUS Overload Mode
- Easy Fuse Breaking – 3 times nominal current for 12ms
- Active Power Factor Correction (PFC)
- Minimal Inrush Current Surge
- Current Sharing Feature Included
- DC-OK Relay Contact
- Quick-connect spring-clamp terminals
