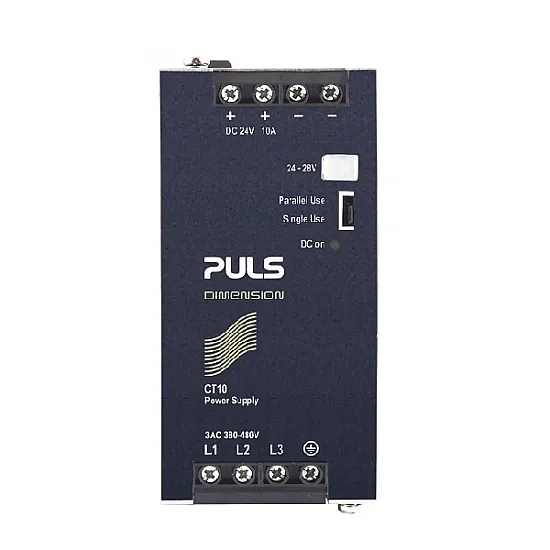

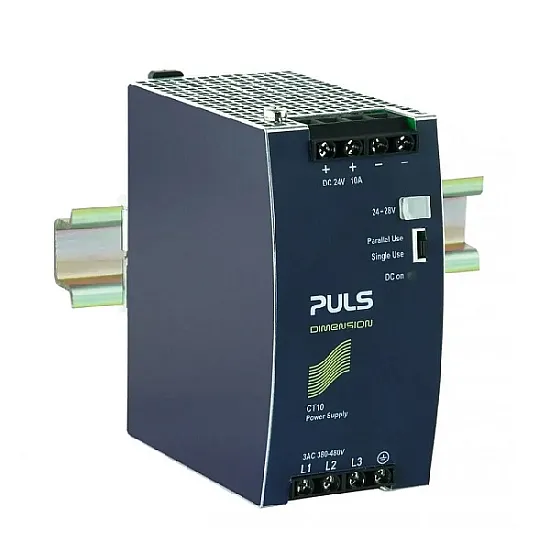

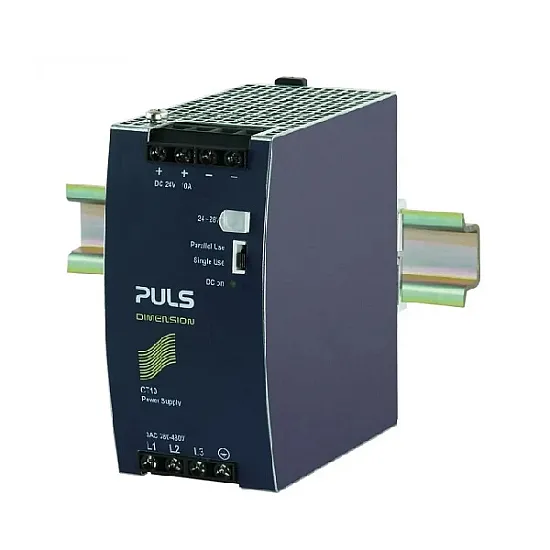

PULS CT10.241-C1 DIN-rail Power Supply

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction

The Dimension C-Series are cost-optimized power supplies without compromising quality, reliability, and performance. The C-Series is part of the DIMENSION power supply family. The most outstanding features of CT10.241 are the high efficiency, electronic inrush current limitation, active input transient filter, and wide operational temperature range. The small size is achieved by synchronous rectification and further technological design details.

The CT10.241-C1 is equipped with conformal-coated PC boards preferred for applications in harsh areas. The C-Series includes all the essential basic functions. The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C. Additionally, the CT10.241 can deliver 3 times the nominal output current for 10ms which helps to trip fuses on faulty output branches.


Certifications




Features

  • 3AC 380-480V Wide-range Input
  • 2 or 3-Phase Operation Possible
  • Width only 62mm
  • Efficiency up to 92.9% Due to Synchronous Rectifier
  • Excellent Partial Load Efficiency
  • 20% Output Power Reserves
  • Easy fuse tripping Due to High Overload Current
  • Input -Transient Blanking Circuit Included
  • Minimal Inrush Current Surge
  • Three Input Fuses Included
  • Current Sharing Feature for Parallel Use
  • Full Power Between -25°C and +60°C
