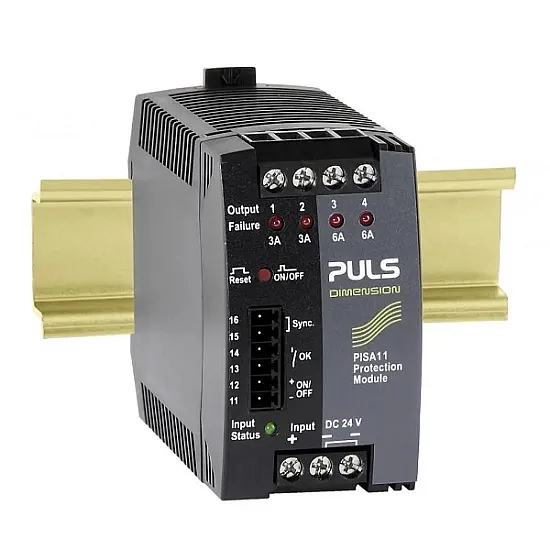

PULS PISA11.410 Protection Module

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction

This protection module fulfills two basic functions. First, it distributes the current of a large power source to four lower current output channels and therefore allows for smaller wires to be used. The second function is to permit only so much current on the outputs that the input voltage of this unit (which corresponds to the output voltage of the power supply) does not fall below 21V. This ensures a safe and uninterrupted supply voltage for sensitive equipment, such as PLCs, controls, or sensors, when they are connected directly to the same power supply as the PISA module. Less critical loads that are not affected by short voltage interruptions or that could even be the cause of a fault on the 24V power supply are connected to one of the four current-controlled output channels of the PISA module.


Certifications




Features

  • One Input and Four Current Controlled Outputs
  • Ensures Sufficient Supply Voltage for Critical Loads even in the Event of an Fault
  • Protects Small Cable Sizes against Overload
  • Hassle-free Turn-on of Loads with Large Input Capacitors
  • NEC Class 2 Compliant (1A and 2A Model)
  • Wide Temperature Range between -25°C and +70°C
  • On/Off Function of Outputs
  • Compact Design, Width only 45mm
  • Remote Monitoring and Control Functions
