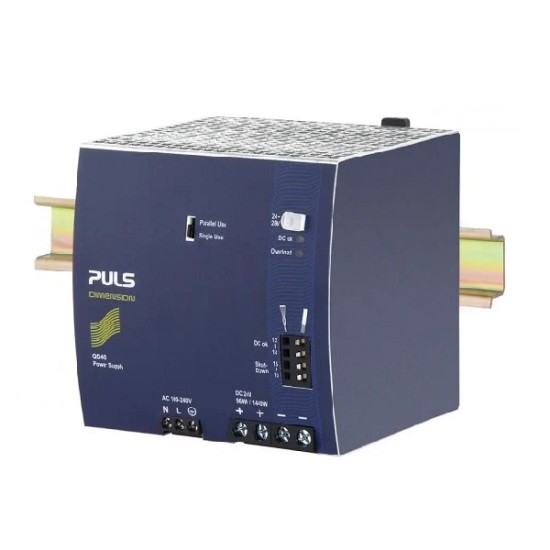

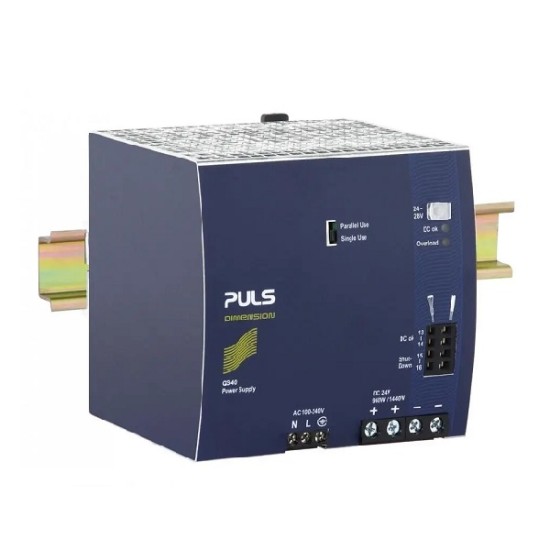

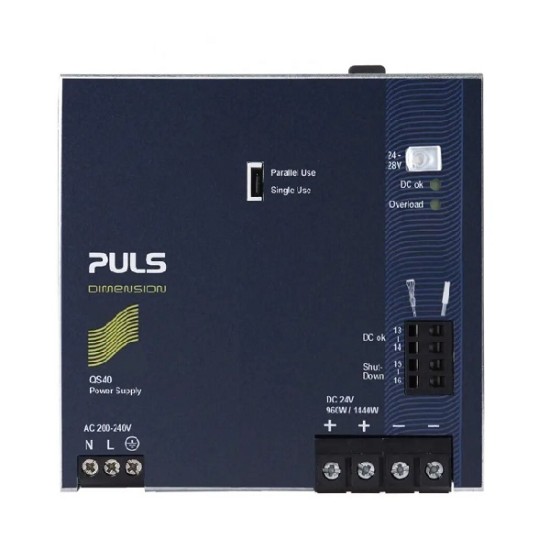

PULS QS40.361 DIN-rail Power Supply

PULS QS40.361 DIN-rail Power Supply
  • Model: QS40.361
$0.00
Ex Tax: $0.00

PULS QS40.361 FEATURES

  • AC 100 - 240V Wide-range Input
  • Width of  only 125mm, a Weight of  only 1.9kg
  • 94.6% Full Load and Excellent Partial Load Efficiencies
  • 50% BonusPower®, 1440W for up to 4s
  • 70A High Peak Current for 10ms for Easy Fuse Tripping
  • Safe HiccupPLUS Overload Mode
  • Active PFC (Power Factor Correction)
  • Negligible Low Input Inrush Current Surge
  • Full Power Between -25°C and +60°C
  • Current Sharing Feature for Parallel Use
  • Internal Data Logging for Troubleshooting Included
  • Remote Control of Output Voltage
  • DC-OK Relay Contact
  • Shut-down Input
  • ATEX and IECEx Approved
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

PULS QS40.361 INTRODUCTION

The most outstanding features of this Dimension QS40.361 DIN-rail power supply are the extremely high efficiency and the small size, which are achieved by a synchronous rectification, a bridgeless PFC circuit, and additional unique design details.
Large power reserves of 150% and built-in large-sized output capacitors support the starting of heavy loads such as DC motors or capacitive loads. In many cases, this allows the use of a unit from a lower wattage class, which saves space and money.
High immunity to transients and power surges as well as low electromagnetic emissions makes usage in nearly every environment possible. The integrated input fuse as well as the near-zero input inrush current make installation and usage simple. Diagnostics are easy due to the DC-OK relay, a green DC-OK LED and the red overload LED. A large international approval package for a variety of applications makes this unit suitable for nearly every application.

As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS QS40.361 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the QS40.241 and QS40.481 models in the PULS DIN-Rail Power Supplies for 1-phase Systems Series.

PULS QS40.361 CERTIFICATIONS



PULS Power Supply : Input Data
Input Voltage Range AC: 90 to 264 VAC
Nominal Input Voltage -
Input Frequency Range 50 to 60 Hz
Input Current At 120 to 230 VAC: 8.6 to 4.5A
Power Factor At 120 to 230 VAC: typ. 0.99 to 0.99
Crest Factor At 120 to 230 VAC: typ. 1.53 to 1.56
Inrush Current At 120 to 230 VAC: typ. 17 to 11A peak
Input Fuse Yes
PULS Power Supply : Output Data
Output Voltage Range 36 to 42 V
Nominal Output Voltage 36 VDC
Output Current 22.9 A at 42 V, 26.7 A at 36 V
Output Power 960 W
Power Boost -
Output Capacitance typ. 4700µF
PULS Power Supply : Protection Features
Overload Protection Yes
Reverse Input Polarity Protection No
Over-Temperature Protection Yes
Input Transient Protection Yes: MOV
Output Transient Protection No
Short Circuit Protection Yes
Output Overvoltage Protection Yes: typ. 45.5 VDC; max. 48 VDC
PULS Power Supply : General
MTBF SN 29500: 300000 h
Connection Method Screw terminals
AC/DC OK AC: Yes
LED Indicators 1 green LED
Remote ON / OFF Function -
IO-Link Interface -
PULS Power Supply : Physical Characteristics
Operating Temperature -25° to 70°C
Storage Temperature -40° to 85°C
Relative Humidity Range 5 to 95% r.H
Altitude Range 0 to 2000m
Derating Between +60 to +70 °C: 24 W/°C
Dimensions 125 mm x 124 mm x 127 mm
Weight 1900 g
Mounting Type DIN rail
Housing -
Standards and Certifications CCC, UKCA, WEEE, REACH, EU, VDMA 24364, ISA-71.04-1985, IEC 60068-2-60, Marine (ABS), Marine (DNV), Class I Div 2, IECEx, ATEX, UL 60950-1, IEC 60950-1, IEC 61010-2-201, UL 508, IEC 60068-2-27, IEC 60068-2-6
