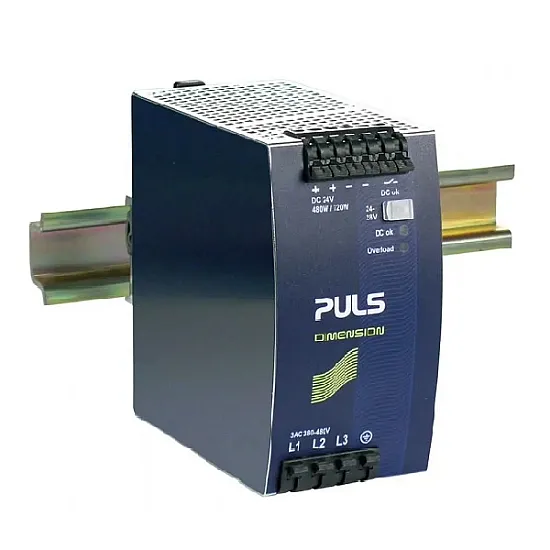

PULS QT20.241 DIN-rail Power Supply

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction

The most outstanding features of the DIMENSION QSeries DIN-rail power supplies are the extremely high efficiencies and the compact sizes which are achieved by synchronous rectification and other unique design details. Large power reserves of 150% support the starting of heavy loads such as DC motors or capacitive loads. In many cases, this allows the use of a unit from a lower wattage class which saves space and money. High immunity to transients and power surges as well as low electromagnetic emission makes usage in nearly every environment possible.

The integrated output power manager and virtually no input inrush current make installation and usage simple with no jumper and switches necessary. Diagnostics are easy due to the DC-OK relay, a green DC-OK LED and the red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every application.


Certifications




Features

  • 3AC 380-480V Wide-range Input
  • Also Specified for 2-Phase Operation
  • Extra Long Lifetime
  • 95% Full Load and Excellent Partial Load Efficiencies
  • Width only 65mm, Weight only 870g
  • 50% BonusPower®, 720W for up to 4s
  • Active Power Factor Correction PFC
  • Active Filtering of Input Transients
  • Full Power Between -25°C and +60°C
  • Extremely Low Input Inrush Current Surge
  • DC-OK Relay Contact
  • Quick-connect Spring-clamp Terminals
