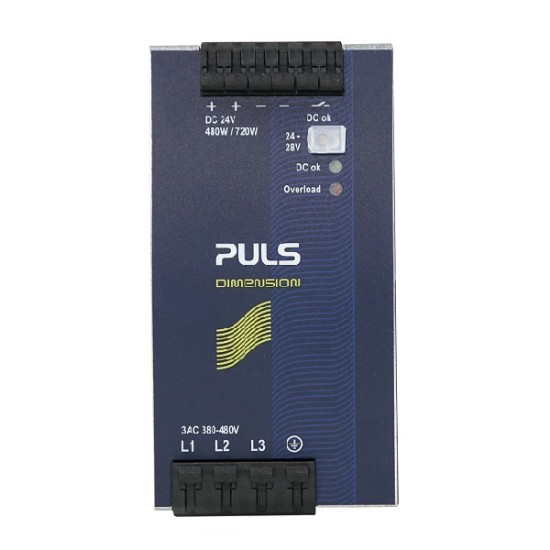

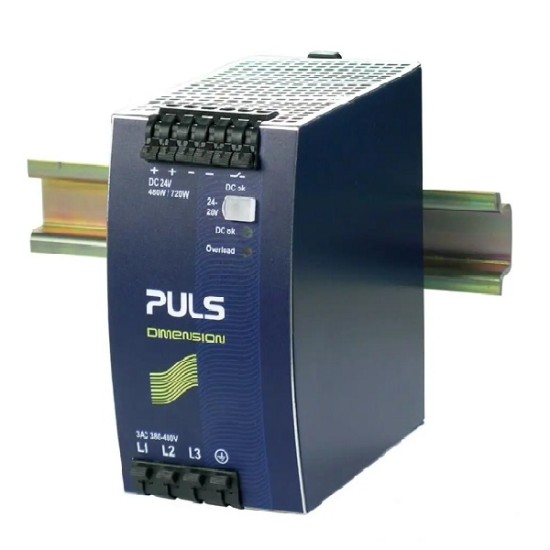

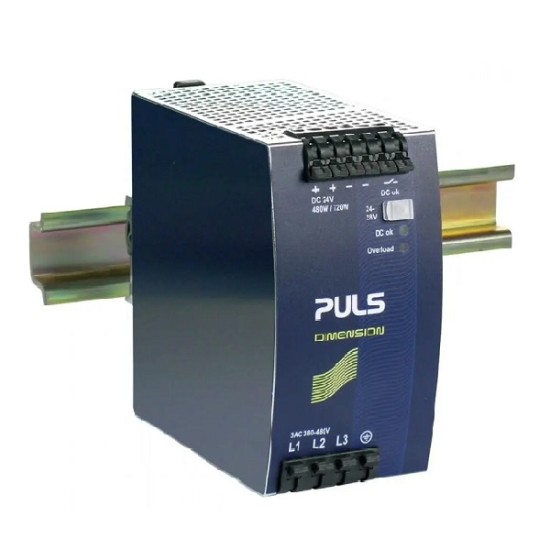

PULS QT20.241 DIN-rail Power Supply

PULS QT20.241 DIN-rail Power Supply
  • Model: QT20.241
$0.00
Ex Tax: $0.00

PULS QT20.241 FEATURES

  • 3AC 380 - 480V Wide-range Input
  • Also Specified for 2-Phase Operation
  • Extra Long Lifetime
  • 95% Full Load and Excellent Partial Load Efficiencies
  • Width of only 65mm, a Weight of only 870g
  • 50% BonusPower®, 720W for up to 4s
  • Active Power Factor Correction PFC
  • Active Filtering of Input Transients
  • Full Power Between -25°C and +60°C
  • Extremely Low Input Inrush Current Surge
  • DC-OK Relay Contact
  • Quick-connect Spring-clamp Terminals
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

PULS QT20.241 INTRODUCTION

The most outstanding features of the DIMENSION QSeries DIN-rail power supplies are the extremely high efficiencies and the compact sizes, which are achieved by synchronous rectification and other unique design details. Large power reserves of 150% support starting heavy loads such as DC motors or capacitive loads. In many cases, this allows using a unit from a lower wattage class, saving space and money. High immunity to transients and power surges, as well as low electromagnetic emission, makes usage in nearly every environment possible.
The integrated output power manager and virtually no input inrush current make installation and usage simple, with no jumpers and switches necessary. Diagnostics are easy due to the DC-OK relay, a green DC-OK LED, and the red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation, and a large international approval package for a variety of applications makes this unit suitable for nearly every application.

As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS QT20.241 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the QT20.361 and QT20.241-C1 models in the PULS DIN-Rail Power Supplies for 3-phase Systems Series.

PULS QT20.241 CERTIFICATIONS



PULS Power Supply : Input Data
Input Voltage Range AC: 323 to 552 VAC
Nominal Input Voltage -
Input Frequency Range 50 to 60 Hz
Input Current At 400 to 480 VAC: 0.79 to 0.65A
Power Factor At 400 to 480 VAC: 0.94 to 0.95A
Crest Factor -
Inrush Current 3A peak
Input Fuse No
PULS Power Supply : Output Data
Output Voltage Range 24 to 28 V
Nominal Output Voltage 24 VDC
Output Current 17.5 A at 28 V, 20 A at 24 V
Output Power 480 W
Power Boost -
Output Capacitance typ. 950µF
PULS Power Supply : Protection Features
Overload Protection Yes
Reverse Input Polarity Protection No
Over-Temperature Protection Yes
Input Transient Protection Yes: MOV
Output Transient Protection No
Short Circuit Protection Yes
Output Overvoltage Protection Yes: typ. 32 VDC; max. 35 VDC
PULS Power Supply : General
MTBF SN 29500: 690000 h
Connection Method Spring clamps
AC/DC OK AC: Yes
LED Indicators 1 green LED
Remote ON / OFF Function -
IO-Link Interface -
PULS Power Supply : Physical Characteristics
Operating Temperature -25° to 70°C
Storage Temperature -40° to 85°C
Relative Humidity Range 5 to 95% r.H
Altitude Range 0 to 2000m
Derating Between +60 to +70 °C: 12 W/°C
Dimensions 65 mm x 124 mm x 127 mm
Weight 870 g
Mounting Type DIN rail
Housing -
Standards and Certifications EAC, Marine, SEMI F47, Class I Div 2, UL 60950-1, UL 508, IEC 60950-1, EC, IEC 60068-2-27, IEC 60068-2-64
