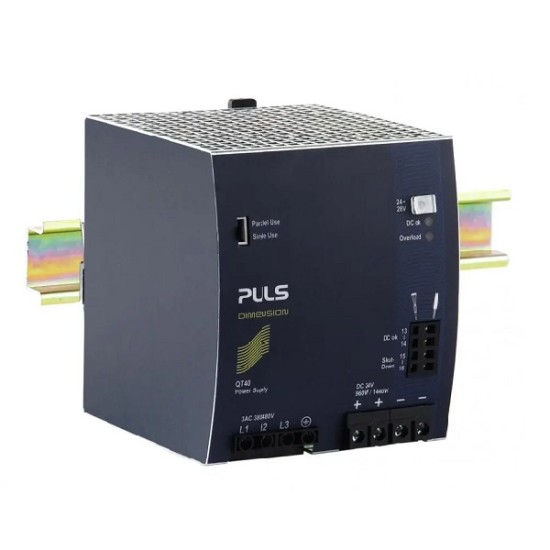

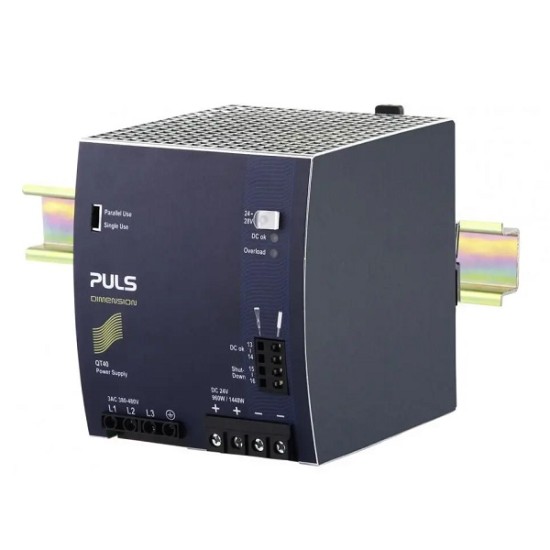

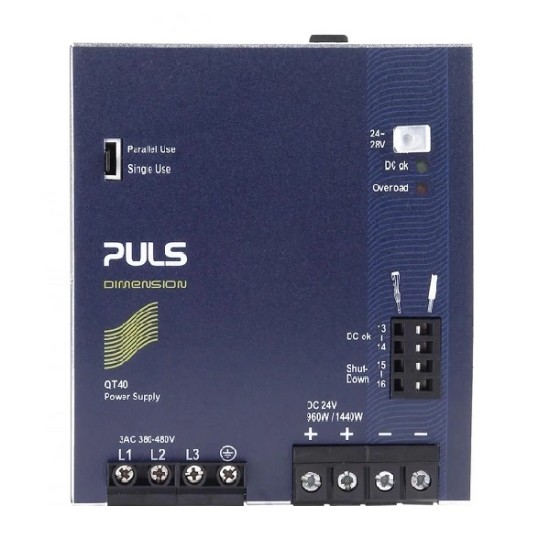

PULS QT40.241 DIN-rail Power Supply

PULS QT40.241 DIN-rail Power Supply
  • Model: QT40.241
$0.00
Ex Tax: $0.00

PULS QT40.241 FEATURES

  • 3AC 380 - 480V Wide-range Input
  • Three Input Fuses Included
  •  Width of only 110mm, a Weight of only 1.5kg
  • 95.3% Full Load and Excellent Partial Load Efficiencies
  • 50% BonusPower®, 1440W for up to 4s
  • 110A Peak Current for 25ms for Easy Fuse Tripping
  • Active PFC (Power Factor Correction)
  • Active Filtering of Input Transients
  • Negligible Low Input Inrush Current Surge
  • Full Power Between -25°C and +60°C
  • Current Sharing Feature for Parallel Use
  • Remote Control of Output Voltage
  • DC-OK Relay Contact
  • Shut-down Input
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

PULS QT40.241 INTRODUCTION

The most outstanding features of the DIMENSION QSeries DIN-rail power supplies are the extremely high efficiencies and the compact sizes, which are achieved by synchronous rectification and other unique design details. Large power reserves of 150% support starting heavy loads such as DC motors or capacitive loads. In many cases, this allows using a unit from a lower wattage class, saving space and money. High immunity to transients and power surges, as well as low electromagnetic emission, makes usage in nearly every environment possible.
The integrated output power manager and virtually no input inrush current make installation and usage simple, with no jumpers and switches necessary. Diagnostics are easy due to the DC-OK relay, a green DC-OK LED, and the red overload LED. Unique quick-connect spring-clamp terminals allow a safe and fast installation, and a large international approval package for a variety of applications makes this unit suitable for nearly every application.

As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS QT40.241 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the QT40.361 and QT40.242 models in the PULS DIN-Rail Power Supplies for 3-phase Systems Series.

PULS QT40.241 CERTIFICATIONS



PULS Power Supply : Input Data
Input Voltage Range AC: 323 to 528 VAC
Nominal Input Voltage -
Input Frequency Range 50 to 60 Hz
Input Current At 400 to 480 VAC: 1.58 to 1.3A
Power Factor At 400 to 480 VAC: 0.92 to 0.93A
Crest Factor -
Inrush Current At 400 to 480 VAC: 4.5 to 4.5Apeak
Input Fuse No
PULS Power Supply : Output Data
Output Voltage Range 24 to 28 V
Nominal Output Voltage 24 VDC
Output Current 34.3 A at 28 V, 40 A at 24 V
Output Power 960 W
Power Boost -
Output Capacitance typ. 10200µF
PULS Power Supply : Protection Features
Overload Protection Yes
Reverse Input Polarity Protection No
Over-Temperature Protection Yes
Input Transient Protection Yes: MOV
Output Transient Protection No
Short Circuit Protection Yes
Output Overvoltage Protection Yes: typ. 30 VDC; max. 32 VDC
PULS Power Supply : General
MTBF SN 29500: 375000 h
Connection Method Screw terminals
AC/DC OK AC: Yes
LED Indicators 1 green LED
Remote ON / OFF Function -
IO-Link Interface -
PULS Power Supply : Physical Characteristics
Operating Temperature -25° to 70°C
Storage Temperature -40° to 85°C
Relative Humidity Range 5 to 95% r.H
Altitude Range 0 to 2000m
Derating Between +60 to +70 °C: 24 W/°C
Dimensions 110 mm x 124 mm x 127 mm
Weight 1500 g
Mounting Type DIN rail
Housing -
Standards and Certifications KC, WEEE, REACH, EU, VDMA 24364, SEMI F47, Marine (DNV), IEC 61010-2-201, UL 61010-2-201, IEC 60068-2-27, IEC 60068-2-6
