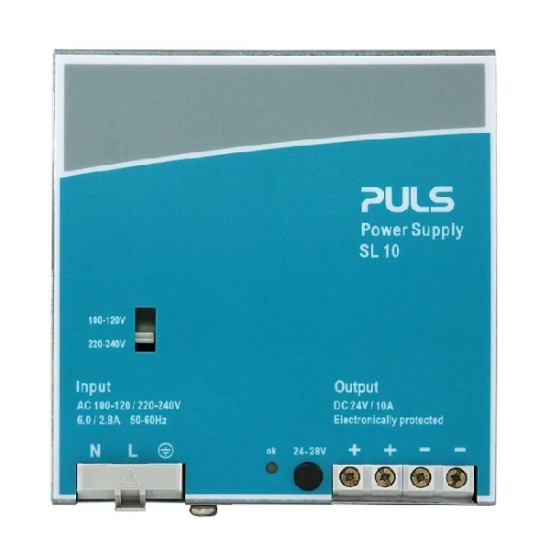

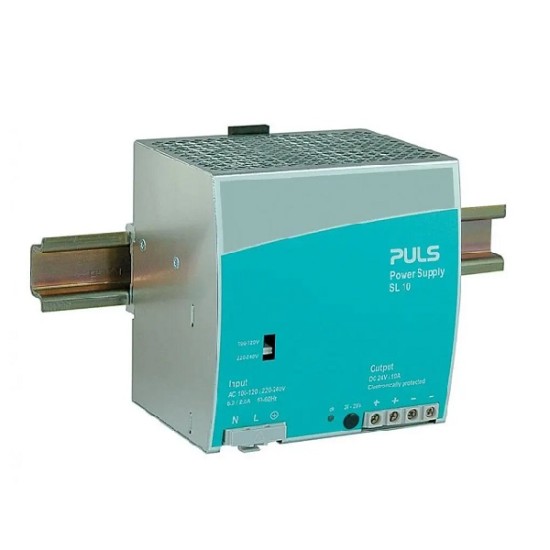

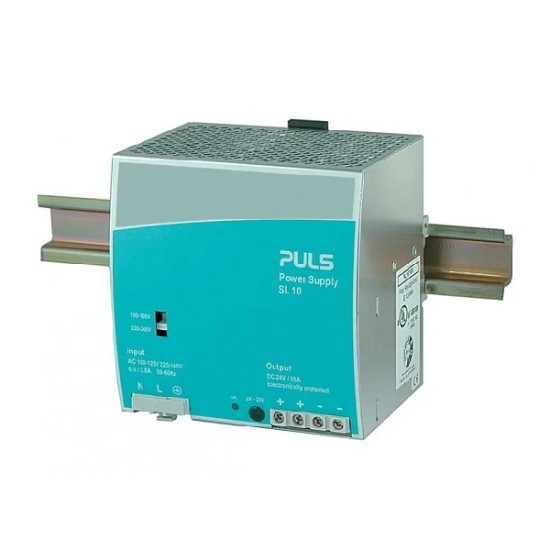

PULS SL10.104 DIN-rail Power Supply








PULS SL10.104 DIN-rail Power Supply
- Model: SL10.104
$0.00
Ex Tax: $0.00
PULS SL10.104 FEATURES
- Input: AC 230/115V, DC 240 to 375V
- Output: 12-15V/180W
- PULS Overload Design™: 20% Power boost up to 215W; high overload current, no switch-off
- Robust mechanics and EMC
- DC ok LED
- Inrush current limiting and Overtemperature protection

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
PULS SL10.104 INTRODUCTION
The SL10.104 is a DIN-rail power supply with AC 230/115V, DC 240 to 375V Input.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS SL10.104 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the SL10.106 and SL10.105 models in the PULS DIN-rail Power Supplies for 1-phase Systems Series.
PULS SL10.104 CERTIFICATIONS
PULS Power Supply : Input Data | |
Input Voltage Range | AC: 85 to 264 VAC, DC: 240 to 375 VDC |
Nominal Input Voltage | - |
Input Frequency Range | 47 to 63 Hz |
Input Current | Switch in 115V position: < 5A, switch in 230V position: < 2.3A |
Power Factor | At 120 to 230 VAC: 0.64 to 0.54A |
Crest Factor | - |
Inrush Current | At 120 to 230 VAC: 45 to 51A |
Input Fuse | No |
PULS Power Supply : Output Data | |
Output Voltage Range | 12 to 15 V |
Nominal Output Voltage | 12 VDC |
Output Current | 12 A at 15 V, 15 A at 12 V |
Output Power | 180 W |
Power Boost | Up to 215W |
Output Capacitance | - |
PULS Power Supply : Protection Features | |
Overload Protection | Yes |
Reverse Input Polarity Protection | No |
Over-Temperature Protection | Yes |
Input Transient Protection | No |
Output Transient Protection | No |
Short Circuit Protection | Yes |
Output Overvoltage Protection | Yes: typ. 19V |
PULS Power Supply : General | |
MTBF | SN 29500: 425000 h |
Connection Method | Screw terminals |
AC/DC OK | AC/DC: Yes |
LED Indicators | 1 green LED |
Remote ON / OFF Function | - |
IO-Link Interface | - |
PULS Power Supply : Physical Characteristics | |
Operating Temperature | 0° to 70°C |
Storage Temperature | -40° to 85°C |
Relative Humidity Range | 5 to 95% r.H |
Altitude Range | - |
Derating | Between +60 to +70 °C: typ. 5 W/K |
Dimensions | 120 mm x 124 mm x 102 mm |
Weight | 980 g |
Mounting Type | DIN rail |
Housing | Sealed metal |
Standards and Certifications | IEC 60950, UL 508, UL 60950, EMC |
