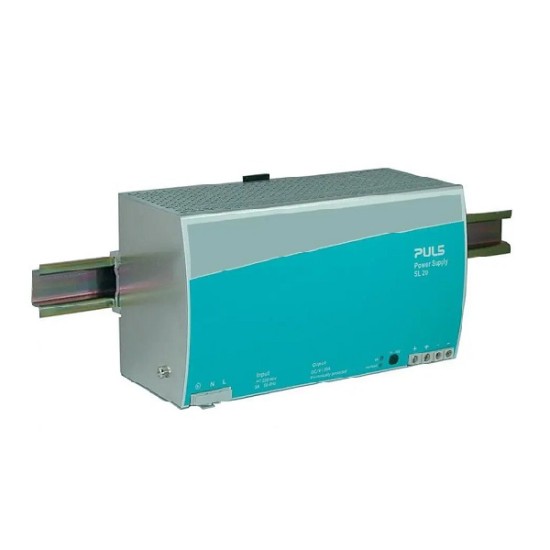

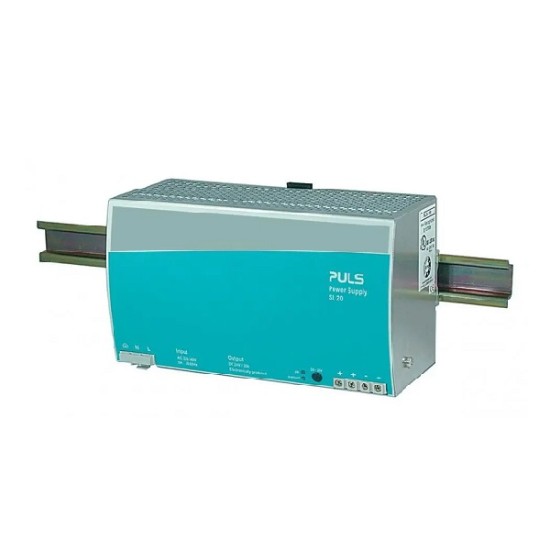

PULS SL20.101 DIN-rail Power Supply








PULS SL20.101 DIN-rail Power Supply
- Model: SL20.101
$0.00
Ex Tax: $0.00
PULS SL20.101 FEATURES
- Input: AC 230V
- Output: 24-28V / 480W (600W)
- 91% efficiency
- Ideal for parallel operation
- Simple fusing

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
PULS SL20.101 INTRODUCTION
The SL20.101 is a DIN-rail power supply with an AC 230V Input.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS SL20.101 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the SL20.113 and SL20.100 models in the PULS DIN-rail Power Supplies for 1-phase Systems Series.
PULS SL20.101 CERTIFICATIONS
PULS Power Supply : Input Data | |
Input Voltage Range | AC: 400 to 480 VAC |
Nominal Input Voltage | - |
Input Frequency Range | 47 to 63 Hz |
Input Current | 5A |
Power Factor | - |
Crest Factor | - |
Inrush Current | At 264 VAC: typ. 33A |
Input Fuse | No |
PULS Power Supply : Output Data | |
Output Voltage Range | 24 to 28 V |
Nominal Output Voltage | 24 VDC |
Output Current | 17.1 A at 28 V, 20 A at 24 V |
Output Power | 480 W |
Power Boost | - |
Output Capacitance | - |
PULS Power Supply : Protection Features | |
Overload Protection | Yes |
Reverse Input Polarity Protection | No |
Over-Temperature Protection | No |
Input Transient Protection | No |
Output Transient Protection | No |
Short Circuit Protection | Yes |
Output Overvoltage Protection | Yes: typ. 33V |
PULS Power Supply : General | |
MTBF | SN 29500: 310000 h |
Connection Method | Screw terminals |
AC/DC OK | AC: Yes |
LED Indicators | 1 green LED |
Remote ON / OFF Function | - |
IO-Link Interface | - |
PULS Power Supply : Physical Characteristics | |
Operating Temperature | 0° to 70°C |
Storage Temperature | -25° to 85°C |
Relative Humidity Range | 5 to 95% r.H |
Altitude Range | - |
Derating | Between +60 to +70 °C: typ. 12W/K |
Dimensions | 220 mm x 124 mm x 102 mm |
Weight | 2400 g |
Mounting Type | DIN rail |
Housing | - |
Standards and Certifications | IEC 60950, UL 508, UL 60950, EMC |
