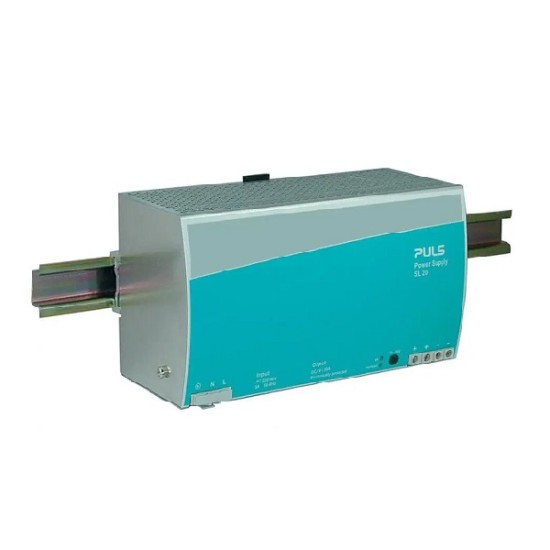

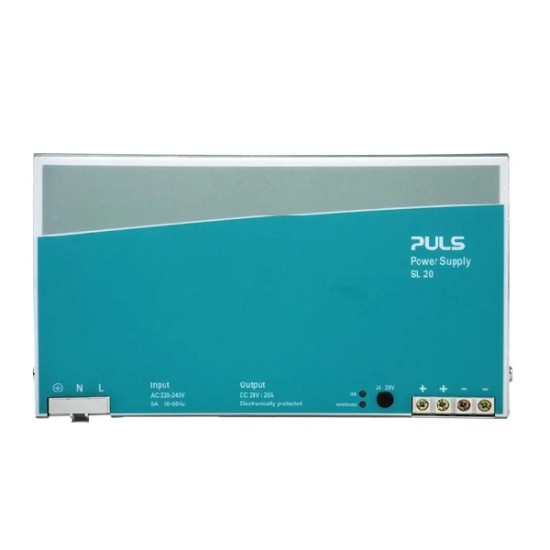

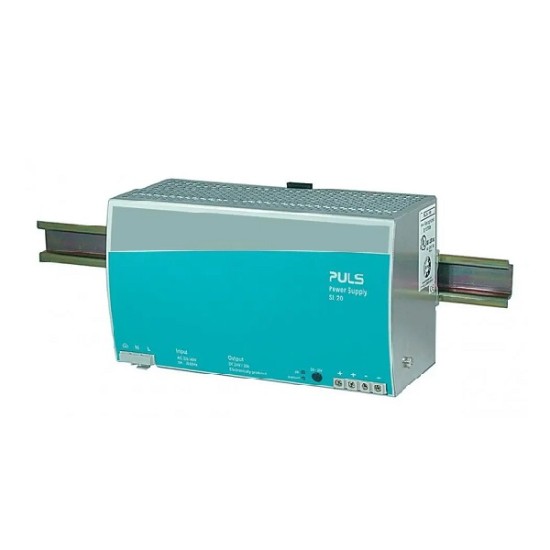

PULS SL20.301 DIN-rail Power Supply








PULS SL20.301 DIN-rail Power Supply
- Model: SL20.301
$0.00
Ex Tax: $0.00
PULS SL20.301 FEATURES
- Input: 3 AC 400V / 3 AC 480V
- Output: 24 to 28V / 480W (600W)
- 92% efficiency
- Ideal for parallel operation
- Simple fusing

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
PULS SL20.301 INTRODUCTION
The SL20.301 is a DIN-rail power supply with 3 AC 400V / 3 AC 480V Input.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS SL20.301 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the SL20.300 and SL20.303 models in the PULS DIN-rail Power Supplies for 3-phase Systems Series.
PULS SL20.301 CERTIFICATIONS
PULS Power Supply : Input Data | |
Input Voltage Range | AC: 408 to 576 VAC, DC: 550 to 820 VDC |
Nominal Input Voltage | - |
Input Frequency Range | 47 to 63 Hz |
Input Current | 3 x 1.5 A |
Power Factor | - |
Crest Factor | - |
Inrush Current | At 440 VAC: < 15A, at 480 VAC: < 17A |
Input Fuse | No |
PULS Power Supply : Output Data | |
Output Voltage Range | 24 to 28 V |
Nominal Output Voltage | 24 VDC |
Output Current | 17.1 A at 28 V, 20 A at 24 V |
Output Power | 480 W |
Power Boost | - |
Output Capacitance | - |
PULS Power Supply : Protection Features | |
Overload Protection | Yes |
Reverse Input Polarity Protection | No |
Over-Temperature Protection | No |
Input Transient Protection | No |
Output Transient Protection | No |
Output Overvoltage Protection | Yes: typ. 32V |
PULS Power Supply : General | |
MTBF | SN 29500: 310000 h |
Connection Method | Screw terminals |
AC/DC OK | AC/DC: Yes |
LED Indicators | 1 green LED |
Remote ON / OFF Function | - |
IO-Link Interface | - |
PULS Power Supply : Physical Characteristics | |
Operating Temperature | 0° to 70°C |
Storage Temperature | -25° to 85°C |
Relative Humidity Range | 5 to 95% r.H |
Altitude Range | - |
Derating | Between +60 to +70 °C: typ. 12W/K |
Dimensions | 220 mm x 124 mm x 102 mm |
Weight | 1800 g |
Mounting Type | DIN rail |
Housing | Sealed metal |
Standards and Certifications | IEC 60950, UL 508, UL 60950, EMC, EN50178, EN60204 |
