Proxim Stratum SX5-1042A-WD Point-to-Point Radio

Proxim Stratum SX5-1042A-WD Point-to-Point Radio
Proxim Stratum SX5-1042A-WD Point-to-Point Radio
Proxim Stratum SX5-1042A-WD Point-to-Point Radio
Proxim Stratum SX5-1042A-WD Point-to-Point Radio
Tags: Point-to-Point Radios

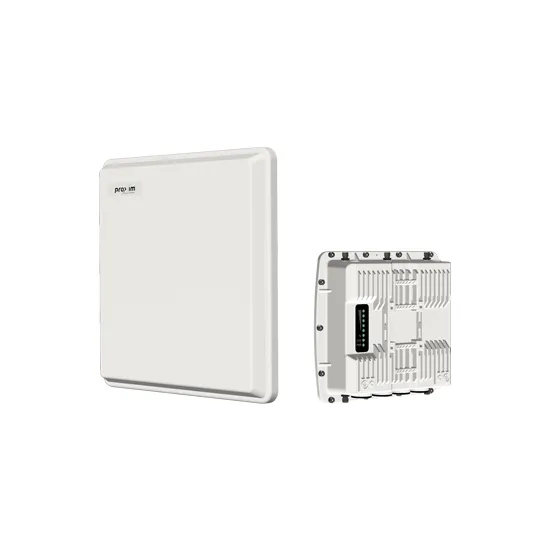

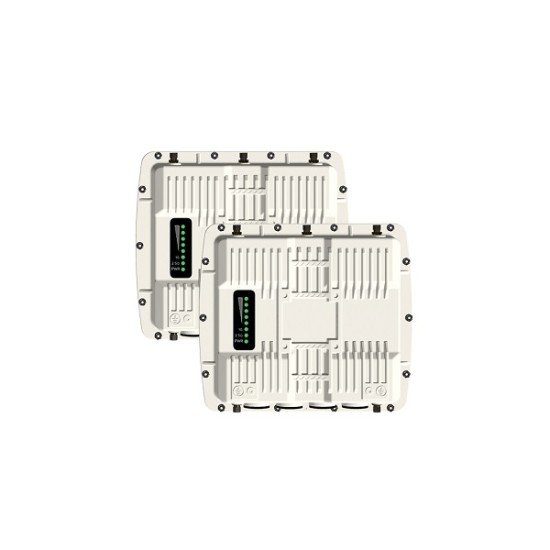

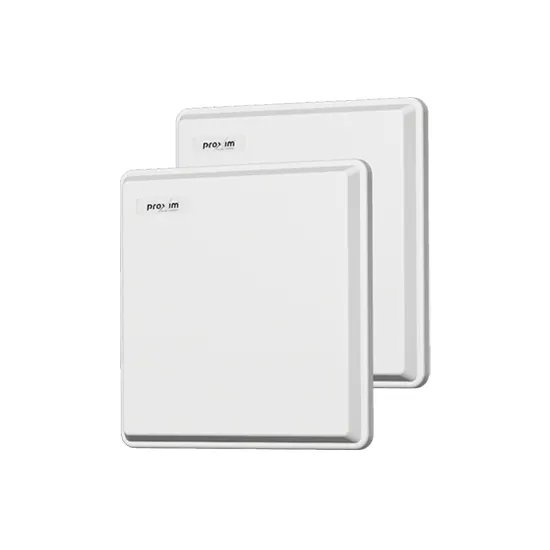

Proxim Stratum SX5-1042A-WD Point-to-Point Radio
  • Model: Stratum SX5-1042A-WD
Proxim Proxim
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Buy Now Enquire Now
Add to Wish List Compare this Product
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction

The Stratum™ X5 is the first in a new series of ultra-high-performance point-to-point and Point to Multipoint radio endpoints.  The Stratum™ X5 is a 5 GHz, MIMO 4x4 point-to-point radio with greater than 1.5 Gbps throughput, and is ideally suited to high-capacity backhaul applications. Model SX5-1040A is a connectorized unit purpose build for external quad polarity antennas where specific antenna patterns or gain adjustments are needed.


Certifications



Features

  • Up to 1.58 Gbps Throughput
  • Wide Band Radio - 5.150 – 5.850 GHz
  • 2.5G Ethernet with optional 10G SFP+ optical transceiver cage
  • AES 128-bit encryption is upgradeable to 256-bit

  • Full tilt and swivel mounting kit included

Point-to-point Radio : Interfaces
Wired Ethernet One auto MDI-X RJ45 2.5 Gbps Ethernet with US PoE in One auto MDI-X RJ45 1 Gbps Ethernet with US PoE out
Wireless Protocol WORP® (Wireless Outdoor Router Protocol)
Point-to-point Radio : Radio Specifications
MIMO 2×2:2 and 4×4:4
Modulation OFDM BPSK-QAM1024
Frequency 5.150 – 5.925 GHz (Subject to Country Regulations)
Channel Size 20, 40 and 80 MHz (80+80 and 160 MHz via future upgrade)
TX Power Up to 26 dBm (dual chain) or 29 dBm (quad chain)
TX Power Control 0 – 21 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Other Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support
Point-to-point Radio : Antenna
Antenna Type Integrated 4×4 MIMO 18 dBi Quad Polarized 19 degree Panel Antenna plus Four RP-SMA Connectors
Point-to-point Radio : Management
Remote Telnet and SSH 2.0, Web GUI and TLS 1.3, TFTP, SNMP v1/v2c/v3
Other Syslog, SNTP and local time, Spectrum analyzer
Point-to-point Radio : Security
Encryption AES 128 (AES 256 via license upgrade)
Authentication Internal MAC Address Control List, Radius-based Authentication (with VLAN and QoS provisioning)
Point-to-point Radio : Network
Modes Bridging, (Routing to be added by future firmware update)
IP Stack IPv4 and IPv6 simultaneously
VLAN 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Point-to-point Radio : Power Requirement
Power Consumption 25 W typical in MIMO 4×4 mode
Power Supply 802.3at/bt compliant
Point-to-point Radio : Physical Characteristics
Temperature OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity 100% relative humidity
IP Rating IP67
Dimensions Packaged 16.34 x 16.34 x 16.85 in (415 x 415 x 485 mm)
Dimensions Unpackaged 14.60 x 14.60 x 3.82 in (371 x 371 x 97 mm)
Weight (PACKAGED) 30.42 lbs (13.8 kg)
Weight (UNPACKAGED) 6.61 lbs (3.0 kg)
Standards and Certifications USA: FCC part 15B class A (EMC), part 15C (Bluetooth) and part 15E (5 GHz radio) CANADA: RSS-247 issue 2, RSS-102 issue 5, ICES-003 issue 7 Europe: RSS-247 issue 2, RSS-102 issue 5, ICES-003 issue 7
Safety IEC 62368-1:2014 & 60950-22:2016 CAN/CSA C22.2 No 62368-1:14 & No 60950-22:17 EN 62368-1:2014 + A11:2017 & 60950-22:2017
Wind Loading 180 km/h (112.5 mph)
Point-to-point Radio : General
MTBF 450 000 hours, 2-year warranty, ServPak Extended Support available.
Point-to-point Radio : Package Checklist
Package Contents One Stratum SX5-1042A with integrated antenna plus four RP-SMA connectors, Five (SX5-1042A) RP-SMA weather proofing caps, Two M25 weather proofing cable glands, One power injector and country-specific power cords, One full-axis mounting kits, One Grounding kits, One Quick Installation Guides
