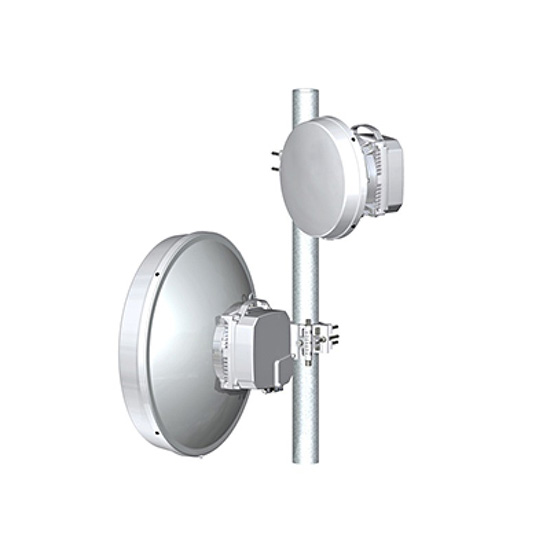

Proxim Tsunami GX-824-MM-LNK-A60 Point-to-Point Radio

Tags: Point-to-Point Radios , Point-to-Point , Radios , Tsunami GX-824

Model: Tsunami GX-824-MM-LNK-A60

Proxim

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

Proxim Tsunami GX-824-MM-LNK-A60 FEATURES

Two Gigabit Ethernet 1000Base-T (RJ45) Auto MDIX ports with 10k jumbo frame support
One Optic Fiber 1000Base-SX / 1000Base-LX / 1000Base-BX port
1 foot – 30 centimeters, 35.5 dBi, 2 foot – 60 centimeters, 41 dBi, 3 foot – 90 centimeters, 44 dBi, 4 foot – 120 centimeters, 46 dBi
900 Mbps full duplex (1800 Mbps true aggregate) [660 Mbps full duplex (1320 Mbps true aggregate) in the USA and Canada]
IP65

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

Proxim Tsunami GX-824-MM-LNK-A60 INTRODUCTION

Tsunami® GX-824 is a very high throughput, extremely reliable, and cost-effective, all outdoor unlicensed point-to-point (PtP) microwave solution operating in the 24 GHz band. With its capacity of up to 900 Mbps full-duplex (1.8 Gbps aggregate), hitless ACM, and modulation schemes up to 1024QAM, Tsunami® GX-824 brings a new dimension to the microwave links market and can be used as an adequate alternative to 60 and 80 GHz millimeter wave links.

As an Authorized Distributor of Proxim, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy Proxim Tsunami GX-824-MM-LNK-A60 Point-to-Point Radio online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the Tsunami GX-824-MM-LNK-A30 and Tsunami GX-824-MM-LNK-A120 models in the Proxim Tsunami GX-824 Series.

Wireless Radio : Interfaces
Ethernet	Two Gigabit Ethernet 1000Base-T (RJ45) Auto MDIX ports with 10k jumbo frame support , One Optic Fiber 1000Base-SX / 1000Base-LX / 1000Base-BX port
Wired Ethernet	-
Wireless Protocol	-
Extension	-
Management	Diagnostic channel with Ethernet / RS-232 interface, Antenna alignment voltage (BNC)
Wireless Radio : Radio Specifications
Radio Type	Point-to-Point
MIMO	-
Modulation	QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 1024QAM with Hitless adaptive coding & modulation (ACM)
Frequency	Frequency Range 24.000 to 24.250GHz [24.050 to 24.250 in the USA and Canada]
Channel Size	Wideband support. Configurable from 3.5 to 112 MHz [3.5 to 80 MHz for the USA and Canada]
Data Rate	-
TX Power	From -27 to +5 dBm
TX Power Control	Automatic Transmit Power Control (ATPC)
Throughput	900 Mbps full duplex (1800 Mbps true aggregate) [660 Mbps full duplex (1320 Mbps true aggregate) in the USA and Canada]
Other	Dynamic Channel Selection (DCS) based on interference detection, and Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support
Wireless Radio : Antenna
Antenna Type	Integrated with the ODU
Beam Width	-
Receive Gain	-
Transmit Gain	-
Wireless Radio : Network
Modes	-
IP Stack	-
Latency	< 90 μs @ 900 Mbps
Gateway Features	-
VLAN	802.1Q (4096 VLAN IDs) and QinQ
Wireless Radio : Management
Remote	Proprietary GX-824 Manager, telnet (CLI)
SNMP	SNMP v1, Enterprise MIB
Bluetooth Low Energy	-
Multi-Language Support	-
Other	Spectrum analyzer
Wireless Radio : Security
Encryption	AES 256 bits
Authentication	-
802.1X Support	Not Supported
Wireless Radio : Wireless
AP-AP Communications	-
RF Environment	-
Other	-
Wireless Radio : General
MTBF	-
Wireless Radio : Power Requirement
Input Power	48 VDC (support from 36 to 72 VDC )
Output Power	-
Power Consumption	Up to 27 W
Power Standards	-
Wireless Radio : Physical Characteristics
Temperature	OPERATING TEMPERATURE -31 to +131 ºF (-35 to +55ºC)
Humidity	100%
IP Rating	IP65
Dimensions Packaged	5.2 x 10 x 11.8 in. (133 x 255 × 301 mm)
Dimensions Unpackaged	-
Weight (PACKAGED)	11.2 lbs (5.1 kg) without antenna
Weight (UNPACKAGED)	-
Standards and Certifications	-
Safety	-
Wind Loading	70 Mph (112 km/h) Operational, 125 Mph (200 km/h) Survival
Wireless Radio : Standards and Protocols
Synchronization	-
Wireless Radio : Package Checklist
Package Contents	Two Tsunami® GX-824 ODU, Two antennas, Two Mounting Kits, One Quick Installation Guide
