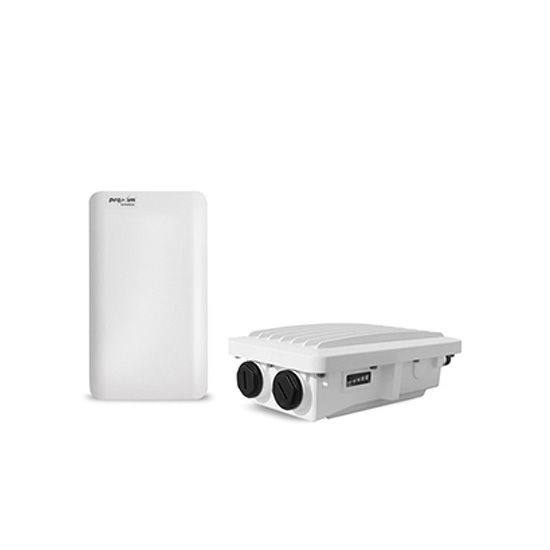

Proxim Tsunami MP-10100-CPA-50-US Point-to-multiPoint Radio

Proxim Tsunami MP-10100-CPA-50-US Point-to-multiPoint Radio
Tags: Point-to-Multipoint Radios
Proxim Tsunami MP-10100-CPA-50-US Point-to-multiPoint Radio
  • Model: Tsunami MP-10100-CPA-50-US
Proxim Proxim
Based on 0 reviews. - Write a review
$0.00
Ex Tax: $0.00
Add to Cart
Buy Now Enquire Now
Add to Wish List Compare this Product
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction

Proxim introduces the Tsunami® MP-10100 CPE/CPA, a compact client device with license-controlled throughput based on the very high capacity, high power, extremely reliable, and cost-effective, Tsunami 10100 series. The Tsunami® MP-10100 CPE/CPA supports the following features specifically for last miles access, video surveillance, or mobility applications requiring high-speed broadband wireless access.


Certifications




    Features

    • Allows flexible bandwidth allocation for service tiers
    • Field upgradable 50, 100, 150, or 200 Mbps of throughput (license upgradeable)
    • Provides flexible channel planning with support for 4.900 to 5.925 GHz
    • Advanced encryption protects over-the-air transmission via AES-128
    • Uses Proxim’s Wireless Outdoor Routing Protocol (WORP®) to prevent snooping
    • Radio mutual authentication eliminates unauthorized use of the system by rogue subscriber units and man-in-the-middle attacks
    Point-to-Multipoint Radio : Interfaces
    Wired Ethernet One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in & Data
    Wireless Protocol WORP® (Wireless Outdoor Router Protocol)
    Point-to-Multipoint Radio : Antenna
    Antenna Type Two N-type Connectors with built-in Surge Protection
    Point-to-Multipoint Radio : Radio Specifications
    TX Power Up to 28 dBm (dual chain)
    MIMO 2x2:2
    Modulation OFDM with BPSK, QPSK, QAM16, QAM64, QAM256
    Frequency 4.900 – 5.925 GHz (Subject to Country Regulations)
    Channel Size 80 MHz, 40 MHz and 20 MHz (±5ppm channel accuracy)
    Data Rate MCS 0 to 9 with Dynamic Data Rate Selection
    Throughput License controlled to 50, 100, 150 or 200 Mbps
    TX Power Control 0 - 27 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
    Other Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support
    Point-to-Multipoint Radio : Management
    Remote Telnet and SSH, Web GUI and SSL/TLS1.2, TFTP, SNMPv3
    SNMP SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
    Other Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
    Point-to-Multipoint Radio : Standards and Protocols
    Synchronization Pass-through IEEE 1588v2 Ethernet Synchronization
    Point-to-Multipoint Radio : Security
    Encryption AES 128
    Authentication Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
    Point-to-Multipoint Radio : Network
    Modes Bridging, Routing (RIP v2 and IP tunneling)
    IP Stack IPv4 and IPv6 simultaneously
    Gateway Features DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
    VLAN 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
    Point-to-Multipoint Radio : Power requirements
    Power Input 36 to 57 VDC via Ethernet port(Power over Ethernet), 12 VDC via Access port, Power should not be provided simultaneously on both ports
    Power Output 12 VDC on Access port
    Power Consumption 17 Watt typical, 22 Watt max
    Point-to-Multipoint Radio : Physical characteristics
    Safety UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 (part -1 and -22)
    Temperature OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
    Humidity 100% relative humidity
    IP Rating IP67
    Dimensions Packaged 11.81x10.83x5.31 in (300x275x135 mm)
    Dimensions Unpackaged 5.02x8.68x2.85 in (127.5x220.5x72.5 mm)
    Weight (PACKAGED) 6.39 lbs (2.9 kg)
    Weight (UNPACKAGED) 2.75 lbs (1.250 kg)
    Standards and Certifications USA: FCC 90Y + 15E (UNII 15.247), Canada: IC RSS 102 + RSS 111 + RSS 247, Europe: RED EN 301 489-1 + EN 301-489-17 + EN 301 893 + EN 302 502, Railway: EN 50155 + EN 50121 + EN 61373
    Point-to-Multipoint Radio : Package Checklist
    Package Contents One Tsunami® MP-10150-CPE-xxx with integrated dual polarized antenna Or One Tsunami® MP-10100-CPA-xxx with two N-type surge protected connectors, One power injector and country specific power cord, One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Wall / Pole mounting kit (MP-10150-CPE-xxx) Or One Pole mounting kit (MP-10100-CPA-xxx), One Grounding kit, One Quick Installation Guide
    Point-to-Multipoint Radio : General
    MTBF 250 000 hours
