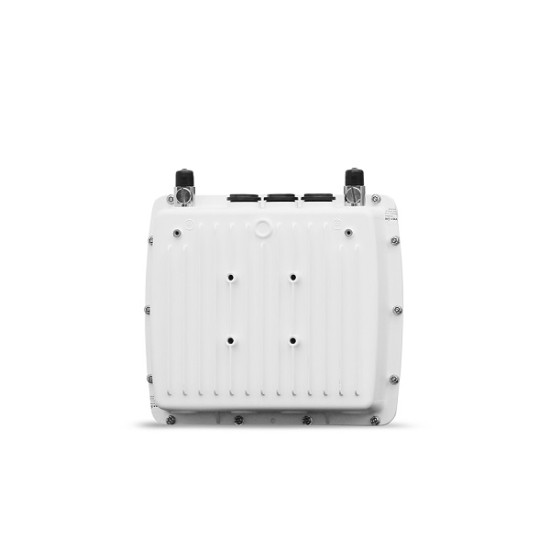

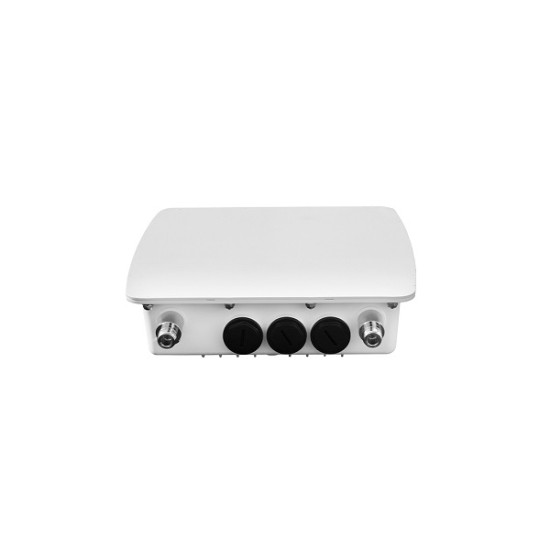

Proxim Tsunami MP-10100L-SUA-US Point-to-multiPoint Radio

Tags: Point-to-Multipoint Radios

Model: Tsunami MP-10100L-SUA-US

Proxim

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

Introduction

The Tsunami® MP-10100L product family is a series of very high throughput, reliable and cost-effective, near-line-of-sight point-to-multipoint wireless products. The Tsunami® MP-10100L series enables a lower cost of entry into a high bandwidth Point to Multipoint network. The ability to upgrade the products to support 80 Mhz channel and deliver 630Mbps.

Certifications

Features

Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data)
Two N-type Connectors with built-in Surge Protection
2x2:2 MIMO
IP67

Point-to-Multipoint Radio : Interfaces
Wired Ethernet	Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data)
Wireless Protocol	WORP® (Wireless Outdoor Router Protocol)
Point-to-Multipoint Radio : Antenna
Antenna Type	Two N-type Connectors with built-in Surge Protection
Point-to-Multipoint Radio : Radio Specifications
TX Power	Up to 28 dBm (dual chain)
MIMO	2x2:2
Modulation	OFDM with BPSK, QPSK, QAM16, QAM64, QAM256
Frequency	4.900 – 5.925 GHz (Subject to Country Regulations)
Channel Size	40 MHz and 20 MHz (±5ppm channel accuracy)
Data Rate	MCS 0 to 9 with Dynamic Data Rate Selection
TX Power Control	0 - 27 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Other	Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support
Point-to-Multipoint Radio : Management
Remote	Telnet and SSH, Web GUI and SSL/TLS, TFTP, SNMPv3
SNMP	SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
Other	Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
Point-to-Multipoint Radio : Standards and Protocols
Synchronization	Pass-through IEEE 1588v2 Ethernet Synchronization
Point-to-Multipoint Radio : Security
Encryption	AES 128
Authentication	Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
Point-to-Multipoint Radio : Network
Modes	Bridging, Routing (RIP v2 and IP tunneling)
IP Stack	IPv4 and IPv6 simultaneously
Gateway Features	DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
VLAN	802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Point-to-Multipoint Radio : Power requirements
Power Input	36 to 57 VDC via Ethernet port1 (Power over Ethernet), 12 VDC via Access port, Power should not be provided simultaneously on both ports
Output Power	48 to 57 VDC – 25 Watt on Ethernet port2 (PoE – software controlled), 12 VDC on Access port
Power Consumption	17 Watt typical
Point-to-Multipoint Radio : Physical characteristics
Safety	UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 (part -1 and -22)
Temperature	OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity	100% relative humidity
IP Rating	IP67
Dimensions Packaged	14.56 x 13.0 x 7.87 in (370 x 331 x 200 mm)
Dimensions Unpackaged	9.84 x 8.66 x 2.83 in (250 x 220 x 72 mm)
Weight (PACKAGED)	9.92 lbs (4.5 kg)
Weight (UNPACKAGED)	4.20 lbs (1.9 kg)
Standards and Certifications	USA: FCC 90Y + 15E (UNII 15.247), Canada: IC RSS 102 + RSS 111 + RSS 247, Europe: RED EN 301 489-1 + EN 301-489-17 + EN 301 893 + EN 302 502, Railway: EN 50155 + EN 50121 + EN 61373
Wind Loading	200 km/h (125 Mph)
Point-to-Multipoint Radio : Package Checklist
Package Contents	One Tsunami® MP-10100L-BSU/SUA with two N-type surge protected connectors Or One Tsunami® MP-10150L-BS9/BS1/SUR with integrated dual polarized antenna, One power injector and country specific power cord, One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Wall / Pole mounting kit, One Antenna alignment (RJ11) dongle, One Grounding kit, One Quick Installation Guide
Point-to-Multipoint Radio : General
MTBF	250 000 hours
