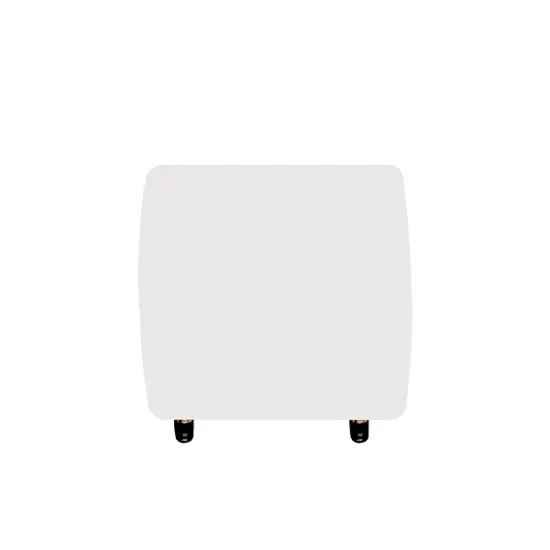

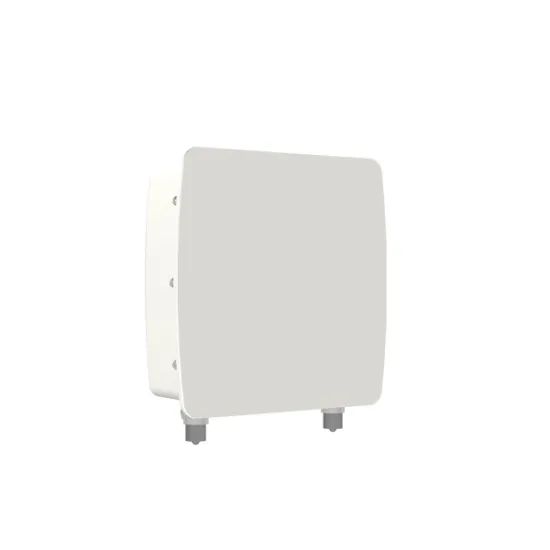

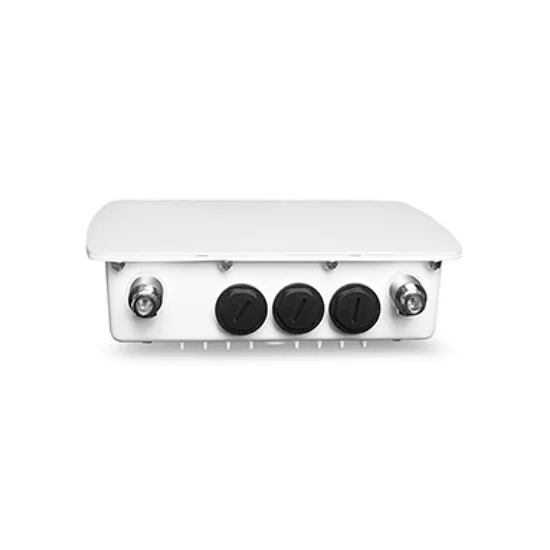

Proxim Tsunami MP-10100S-SUA-US Point-to-multiPoint Radio

Tags: Point-to-Multipoint Radios , Point-to-Multipoint , Radios , Tsunami MP-10100S Series

Proxim Tsunami MP-10100S-SUA-US Point-to-multiPoint Radio

Model: Tsunami MP-10100S-SUA-US

Proxim

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

Proxim Tsunami MP-10100S-SUA-US FEATURES

2 x auto MDI-X RJ45 10/100/1000Mbps Ethernet
Two N-type Connectors with built-in Surge Protection
2x2:2 MIMO
IP67

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

Proxim Tsunami MP-10100S-SUA-US INTRODUCTION

The Tsunami® MP-10100S is an extremely secure version of the Tsunami® MP-10100, a very high throughput, high power, especially reliable, and cost-effective, near-line-of-sight point-to-multipoint wireless solution. The Tsunami® MP-10100S supports the following features that make it ideal for video surveillance, Government, or mobility applications that need ultra-secure, very high-speed broadband wireless access.

As an Authorized Distributor of Proxim, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy Proxim Tsunami MP-10100S-SUA-US Point-to-MultiPoint Radio online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the Tsunami MP-10150S-SUR-US and Tsunami MP-10150S-BS9-US models in the Proxim Tsunami MP-10100S Series.

Proxim Tsunami MP-10100S-SUA-US CERTIFICATIONS

Wireless Radio : Interfaces
Ethernet	-
Wired Ethernet	Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data)
Wireless Protocol	WORP® (Wireless Outdoor Router Protocol)
Extension	-
Management	-
Wireless Radio : Radio Specifications
Radio Type	Point-to-multiPoint
MIMO	2x2:2
Modulation	OFDM with BPSK, QPSK, QAM16, QAM64, QAM256
Frequency	4.900 – 5.925 GHz (Subject to Country Regulations)
Channel Size	80 MHz, 40 MHz and 20 MHz
Data Rate	MCS 0 to 9 with Dynamic Data Rate Selection
TX Power	Up to 28 dBm (dual chain)
TX Power Control	0 - 27 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Throughput	80 MHz: Up to 672 Mbps, 40 MHz: Up to 324 Mbps, 20 MHz: Up to 137 Mbps
Other	Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature , Automatic Transmit Power Control (ATPC) with EIRP limit support
Wireless Radio : Antenna
Antenna Type	Two N-type Connectors with built-in Surge Protection
Beam Width	-
Receive Gain	-
Transmit Gain	-
Wireless Radio : Network
Modes	Bridging, Routing (RIP v2 and IP tunneling)
IP Stack	IPv4 and IPv6 simultaneously
Latency	-
Gateway Features	DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
VLAN	802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Wireless Radio : Management
Remote	Telnet and SSH, Web GUI and SSL, TFTP, SNMPv3
SNMP	SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
Bluetooth Low Energy	-
Multi-Language Support	-
Other	Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
Wireless Radio : Security
Encryption	AES 128 and AES 256
Authentication	Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
802.1X Support	Not Supported
Wireless Radio : Wireless
AP-AP Communications	-
RF Environment	-
Other	-
Wireless Radio : General
MTBF	250 000 hours
Wireless Radio : Power Requirement
Input Power	36 to 57 VDC via Ethernet port1 (Power over Ethernet), 12 VDC via Access port, Power should not be provided simultaneously on both ports
Output Power	48 to 57 VDC – 25 Watt on Ethernet port2 (PoE – software controlled), 12 VDC on Access port
Power Consumption	17 Watt typical
Power Standards	-
Wireless Radio : Physical Characteristics
Temperature	OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity	100% relative humidity
IP Rating	IP67
Dimensions Packaged	14.56 x 13.0 x 7.87 in (370 x 331 x 200 mm)
Dimensions Unpackaged	9.84 x 8.66 x 2.83 in (250 x 220 x 72 mm)
Weight (PACKAGED)	9.92 lbs (4.5 kg)
Weight (UNPACKAGED)	4.20 lbs (1.9 kg)
Standards and Certifications	USA: FCC 90Y + 15E (UNII 15.247), Railway: EN 50155 + EN 50121 + EN 61000-6-4 + EN 61373 + EN 45545-2
Safety	UL 60950, IEC 60950 (part -1 and -22)
Wind Loading	200 km/h (125 mph)
Wireless Radio : Standards and Protocols
Synchronization	Pass-through IEEE 1588v2 Ethernet Synchronization
Wireless Radio : Package Checklist
Package Contents	One Tsunami® MP-10100S-BSU/SUA with two N-type surge protected connectors Or One Tsunami® MP-10150S-BS9/SUR with integrated dual polarized antenna, One power injector and country specific power cord, One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Wall / Pole mounting kit, One Antenna alignment (RJ11) dongle, One Grounding kit, One Quick Installation Guide
