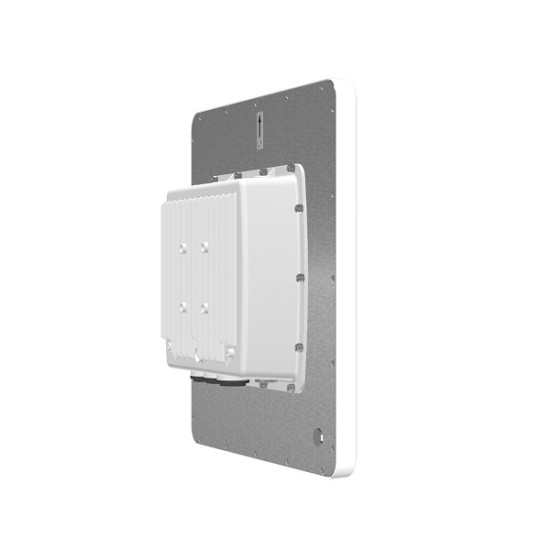

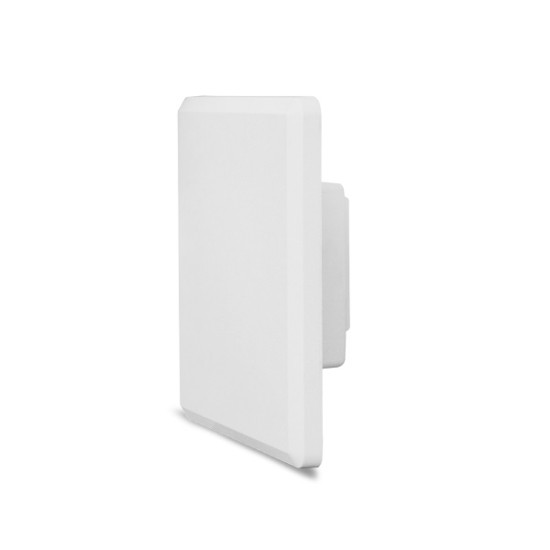

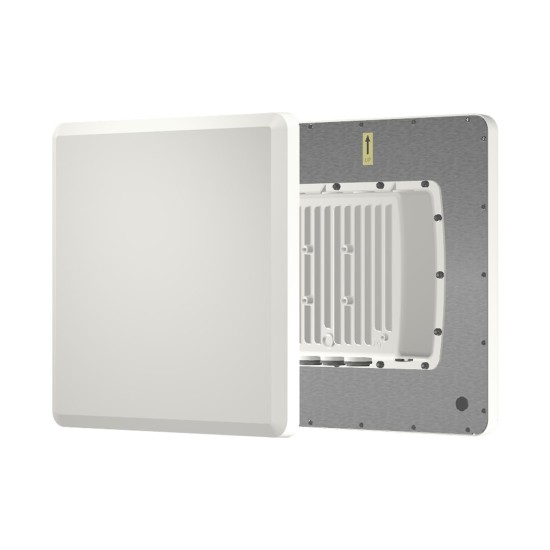

Proxim Tsunami MP-10250-SRX-US Point-to-Multipoint Radio
Proxim Tsunami MP-10250-SRX-US Point-to-Multipoint Radio
- Model: Tsunami MP-10250-SRX-US
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
The Tsunami® MP-10250 BeamX product family uses a beam steering antenna and a secondary, look-ahead scan radio to avoid interference and maximize the use of the available radio spectrum. The Tsunami® 10250, builds on the successful 10000 product line, and is extremely robust in the face of high ambient RF interference delivers more Mbps, and opens up an additional 5GHz spectrum.
The Tsunami® MP-10250-BeamX device supports the following features for applications that include last-mile access or video surveillance, both of which need prioritized and continuous high-speed broadband wireless access.
Certifications
Features
- IP67
- MIMO 2x2
- 16 dBi BeamX antenna
- Two auto MDI-X RJ45 10/100/1000Mbps Ethernet
- Base Station Unit
Point-to-Multipoint Radio : Interfaces | |
Wired Ethernet | Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data) |
Wireless Protocol | WORP® (Wireless Outdoor Router Protocol) |
Point-to-Multipoint Radio : Antenna | |
Beam Width | 17° spanning over ± 30° sector |
Receive Gain | 16 dBi (11 dBi before 5.150 GHz) |
Transmit Gain | 20 dBi (11 dBi before 5.150 GHz ) |
Point-to-Multipoint Radio : Radio Specifications | |
TX Power | Up to 28 dBm (dual chain) |
MIMO | 2x2:2 and 0x2:2 (scan radio) |
Modulation | OFDM with BPSK, QPSK, QAM16, QAM64, QAM256 |
Frequency | 4.900 – 5.850 GHz (Subject to Country Regulations) |
Channel Size | 80 MHz, 40 MHz and 20 MHz |
Data Rate | MCS 0 to 9 with Dynamic Data Rate Selection |
TX Power Control | 0 - 27 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit |
Other | Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support |
Point-to-Multipoint Radio : Management | |
Remote | Telnet and SSH, Web GUI and SSL, TFTP, SNMPv3 |
SNMP | SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB |
Other | Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer |
Point-to-Multipoint Radio : Standards and Protocols | |
Synchronization | Pass-through IEEE 1588v2 Ethernet Synchronization |
Point-to-Multipoint Radio : Security | |
Encryption | AES 128, upgradeable to AES 256 |
Authentication | Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning) |
Point-to-Multipoint Radio : Network | |
Modes | Bridging, Routing (RIP v2 and IP tunneling) |
IP Stack | IPv4 and IPv6 simultaneously |
Gateway Features | DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS |
Point-to-Multipoint Radio : Power requirements | |
Input Power | 36 to 57 VDC via Ethernet port1 (Power over Ethernet), 12 VDC via Access port, Power should not be provided simultaneously on both ports |
Output Power | 48 to 57 VDC – 25 Watt on Ethernet port2 (PoE – software controlled), 12 VDC on Access port |
Power Consumption | 30 Watt typical, 40 Watt maximum |
Point-to-Multipoint Radio : Physical characteristics | |
Safety | UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 (part -1 and -22) |
Temperature | OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit) |
Humidity | 100% relative humidity |
IP Rating | IP67 |
Dimensions Packaged | 18.46 x 7.05 x 21.57 in (469 x 179 x 548 mm) |
Dimensions Unpackaged | 14 x 14 x 3.40 in (371 x 371 x 85 mm) |
Weight (PACKAGED) | 13.67 lbs (6.2 kg) |
Weight (UNPACKAGED) | 7.27 lbs (3.3 kg) |
Standards and Certifications | USA: FCC 90Y + 15E (UNII 15.247), Canada: IC RSS 102 + RSS 111 + RSS 247, Europe: RED EN 301 489-1 + EN 301-489-17 + EN 301 893 + EN 302 502 |
Wind Loading | 200 km/h (125 mph) |
Point-to-Multipoint Radio : Package Checklist | |
Package Contents | One Tsunami® MP-10250-SRX with integrated BeamX antenna and scan radio, One power injector and country specific power cord, One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Wall / Pole mounting kit, One Antenna alignment (RJ11) dongle, One Grounding kit, One Quick Installation Guide |
Point-to-Multipoint Radio : General | |
MTBF | 250 000 hours |
