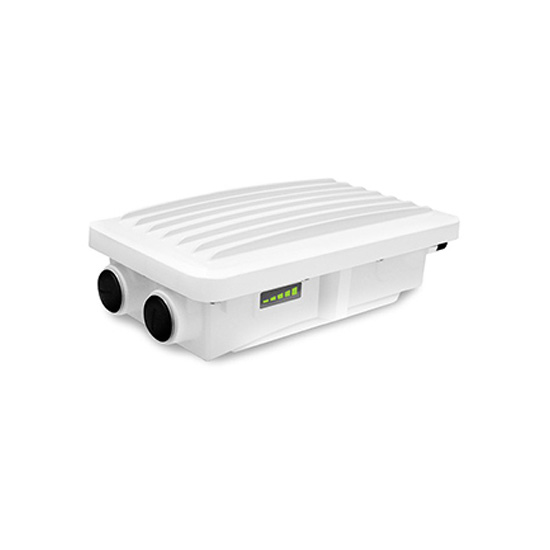

Proxim Tsunami MP-825-BS3-100-US Point-to-multiPoint Radio

Tags: Point-to-Multipoint Radios

Model: Tsunami MP-825-BS3-100-US

Proxim

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

Introduction

The compact and robust form factor of the Tsunami® Multipoint 820 series is an ideal solution for urban wireless deployments. It is eminently suitable for discrete mounting in city streets and offers high reliability for the connection of Video Surveillance, traffic monitoring, and traffic light management systems.

The Tsunami® Multipoint 820 series is also adapted for in-vehicle mounting and supports transparent roaming for data on the move.

Certifications

Features

100 Mbps
MIMO 2x2
N-Type Connectors

Point-to-Multipoint Radio : Interfaces
Wired Ethernet	One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in
Wireless Protocol	WORP® (Wireless Outdoor Router Protocol) or WORP sync
Point-to-Multipoint Radio : Antenna
Antenna Type	Integrated 15 dBi dual Polarized (H+V) panel antenna (12 dBi before 5.000 GHz and 14 dBi beyond 5.850 GHz)
Point-to-Multipoint Radio : Radio Specifications
TX Power	Up to 26 dBm (dual chain)
MIMO	2x2 MIMO
Modulation	OFDM with BPSK, QPSK, QAM16, QAM64
Frequency	4.900 - 5.925 GHz (Subject to Country Regulations)
Channel Size	40 MHz, 20 MHz, 10 MHz, 5 MHz channel bandwidths
Data Rate	MCS 0 to 15 for High Throughput mode (6.5 – 300 Mbps) with Dynamic Data Rate Selection BPSK, QPSK, 16-QAM and 64-QAM for legacy mode (6Mbps - 54Mbps)
Throughput	Up to 100 Mbps, 32 subscriber max
TX Power Control	0 – 15 dB, in 0.5 dB steps. Automatic TPC with configurable EIRP limit
Other	Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature , Automatic Transmit Power Control (ATPC) with EIRP limit support
Point-to-Multipoint Radio : Management
Remote	Telnet and SSH, Web GUI and SSL, TFTP, SNMPv3
SNMP	SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
Local	RS-232 serial (RJ11 to DB-9 dongle provided)
Other	Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
Point-to-Multipoint Radio : Standards and Protocols
Synchronization	Synchronize internal clock to Pulse Per Second signal recieved from either GPS module connected to RJ11 serial port or Ethernet Synchronization module connected to RJ45 ethernet port
Point-to-Multipoint Radio : Security
Encryption	AES-CCM 128 bits
Authentication	Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
Point-to-Multipoint Radio : Network
Modes	Bridging, Routing (RIP v2 and IP tunneling)
IP Stack	IPv4 and IPv6 simultaneously
Gateway Features	DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
VLAN	802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Point-to-Multipoint Radio : Physical characteristics
Safety	UL 60950-1/22, CAN/CSA-C22.2 No. 60950-1/22, IEC 60950-1/22, EN 60950-1/22
Temperature	OPERATING -40º to 55ºC (-40º to 131º Fahrenheit), STORAGE -55º to 70ºC (-67º to 158º Fahrenheit)
Humidity	Max 100% relative humidity (non-condensing)
IP Rating	IP67
Dimensions Packaged	11.81x10.83x5.31 in (300x275x135 mm)
Dimensions Unpackaged	4.96x8.62x2.58 in (126x219x65.5 mm)
Weight (PACKAGED)	7.27 lbs (3.3 Kg)
Weight (UNPACKAGED)	2.10 lbs (0.950 kg)
Wind Loading	180 km/h (112 mph)
Point-to-Multipoint Radio : Package Checklist
Package Contents	One Tsunami® MP-820-BSU-100 with two N-type surge protected connectors Or One Tsunami® MP-825-BS3-100 with 15 dBi integrated antenna Or One Tsunami® MP-820-SUA-50+/SUA-100 with two N-type surge protected connectors Or One Tsunami® MP-825-SUR-50+/SUR-100 with 15 dBi integrated antenna, One 32 W power injector with country specific power cord, One Wall / Pole mounting kit (Tsunami MP-825-BS3/SUR) Or One Pole mounting Kit (Tsunami MP-820-BSU/SUA), One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Serial (RJ-11 to DB9) dongle, One Grounding kit, One Quick Installation Guide
Point-to-Multipoint Radio : General
MTBF	350,000 hours
