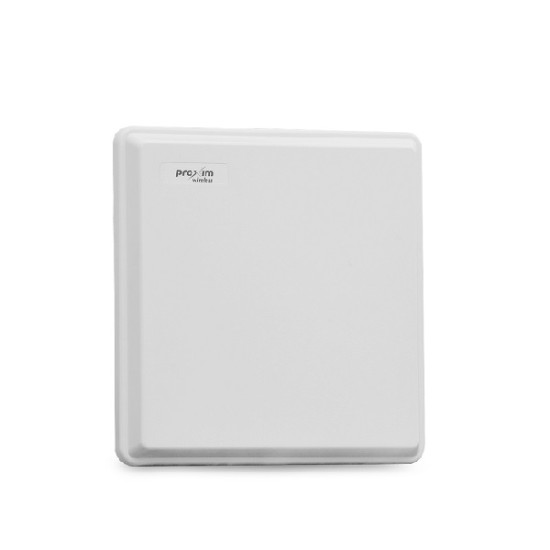

Proxim Tsunami MP-8260-BS9-WD Point-to-multiPoint Radio

Tags: Point-to-Multipoint Radios , Point-to-Multipoint , Radios , Tsunami 8260 Series

Proxim Tsunami MP-8260-BS9-WD Point-to-multiPoint Radio

Model: Tsunami MP-8260-BS9-WD

Proxim

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

Proxim Tsunami MP-8260-BS9-WD FEATURES

2 x auto MDI-X RJ45 10/100/1000Mbps Ethernet
Integrated 2x2 MIMO 16dBi Dual Polarized 90-degree Sector Antenna
2x2:2 MIMO
IP67

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

Proxim Tsunami MP-8260-BS9-WD INTRODUCTION

The Tsunami® MP-8260 series is the latest in our range of 6.4 GHz point-to-multipoint products. They support a data rate that delivers up to 300 Mbps over a 40 MHz channel. Designed specifically to work with the MP-826-CPE and MP-826-CPA products, the Tsunami® MP-8260 benefits from all features of the latest Tsunami® MultiPoint products but with the benefit of operating in the 6.4 GHz band.
The Tsunami® MP-8260 Base Stations combined with the MP-826-CPE is an ideal solution for large-scale wireless deployments and provides an excellent value proposition to WISPs planning wireless broadband last-mile access deployments.
This platform also features carrier-grade prioritization. The platform supports multiple service classes and is able to prioritize voice, video, and data applications to enable granular management of customer service features.

As an Authorized Distributor of Proxim, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy Proxim Tsunami MP-8260-BS9-WD Point-to-Multipoint Radio online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the Tsunami MP-8260-BSU-WD and Tsunami MP-8260-SUA-WD models in the Proxim Tsunami 8260 Series.

Point-to-Multipoint Radio : Interfaces
Wired Ethernet	Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data)
Wireless Protocol	WORP® (Wireless Outdoor Router Protocol)
Point-to-Multipoint Radio : Antenna
Antenna Type	Integrated 2x2 MIMO 16dBi Dual Polarized 90 degree Sector Antenna
Point-to-Multipoint Radio : Radio Specifications
TX Power	Up to 25 dBm (dual chain)
MIMO	2x2:2
Modulation	OFDM with BPSK, QPSK, QAM16, QAM64
Frequency	5.900 – 6.425 GHz (Subject to Country Regulations)
Channel Size	40 MHz, 20 MHz, 10 MHz, 5 MHz
Data Rate	MCS 0 to 9 with Dynamic Data Rate Selection
TX Power Control	0 - 22 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Other	Dynamic Channel Selection (DCS) based on interference detection, Automatic Transmit Power Control (ATPC) with EIRP limit support
Point-to-Multipoint Radio : Management
Remote	Telnet and SSH, Web GUI and SSL, TFTP, SNMPv3
SNMP	SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
Other	Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
Point-to-Multipoint Radio : Standards and Protocols
Synchronization	Pass-through IEEE 1588v2 Ethernet Synchronization
Point-to-Multipoint Radio : Security
Encryption	AES 128
Authentication	Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
Point-to-Multipoint Radio : Network
Modes	Bridging, Routing (RIP v2 and IP tunneling)
IP Stack	IPv4 and IPv6 simultaneously
Gateway Features	DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
VLAN	802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Point-to-Multipoint Radio : Power Requirements
Power Input	36 to 57 VDC via Ethernet port1 (Power over Ethernet), 12 VDC via Access port, Power should not be provided simultaneously on both ports
Power Output	48 to 57 VDC – 25 Watt on Ethernet port2 (PoE – software controlled), 12 VDC on Access port
Power Consumption	18 Watt typical
Point-to-Multipoint Radio : Physical Characteristics
Safety	UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 (part -1 and -22)
Temperature	OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity	100% relative humidity
IP Rating	IP67
Dimensions Packaged	18.46 x 7.05 x 21.57 in (469 x 179 x 548 mm)
Dimensions Unpackaged	14.57 x 14.57 x 4.21 in (370 x 370 x 107 mm)
Weight (PACKAGED)	13.67 lbs (6.2 kg)
Weight (UNPACKAGED)	7.27 lbs (3.3 kg)
Wind Loading	200 km/h (124.2 mph)
Point-to-Multipoint Radio : Package Checklist
Package Contents	One Tsunami® MP-8260-BSU/SUA with two N-type surge protected connectors Or One Tsunami® MP-8260-BS9 with integrated dual polarized antenna, One power injector and country specific power cord, One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Wall / Pole mounting kit, One Antenna alignment (RJ11) dongle, One Grounding kit, One Quick Installation Guide
Point-to-Multipoint Radio : General
MTBF	250 000 hours
