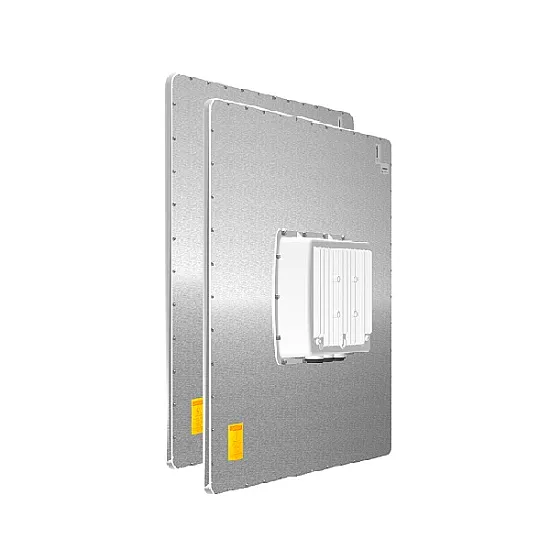

Proxim Tsunami QB-10150-LKL-WD Point-to-Point Radio

Tags: Point-to-Point Radios

Model: Tsunami QB-10150-LKL-WD

Proxim

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

Introduction

Proxim Wireless is a leader and an early innovator in wireless technology providing high-speed, long-range broadband wireless solutions. Proxim introduces the Tsunami® QB-10100, a very high throughput, high power, extremely reliable and cost-effective, near-line-of-sight point-to-point (PtP) wireless backhaul solution.

Tsunami® QB-10100 supports the following key features that are critical for carriers, wireless service providers, and Government organizations that need very high-speed carrier-class wireless backhaul.

Certifications

Features

Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data)
2x2:2 MIMO
Integrated 2x2 MIMO 28dBi Dual Polarized 2 feet Panel Antenna
IP67

Point-to-point Radio : Interfaces
Wired Ethernet	Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data)
Wireless Protocol	WORP® (Wireless Outdoor Router Protocol)
Point-to-point Radio : Radio Specifications
MIMO	2x2:2
Modulation	OFDM with BPSK, QPSK, QAM16, QAM64, QAM256
Frequency	4.900 – 5.925 GHz (Subject to Country Regulations)
Channel Size	80 MHz, 40 MHz and 20 MHz (±5ppm channel accuracy)
Data Rate	MCS 0 to 9 with Dynamic Data Rate Selection
TX Power	Up to 28 dBm (dual chain)
TX Power Control	0 - 27 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Other	Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support
Point-to-point Radio : Antenna
Antenna Type	Integrated 2x2 MIMO 28dBi Dual Polarized 2 feet Panel Antenna
Point-to-point Radio : Management
Remote	Telnet and SSH, Web GUI and SSL/TLS, TFTP, SNMPv3
SNMP	SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
Other	Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
Point-to-point Radio : Standards and Protocols
Synchronization	Pass-through IEEE 1588v2 Ethernet Synchronization
Point-to-point Radio : Security
Encryption	AES 128
Authentication	Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
Point-to-point Radio : Network
Modes	Bridging (support LACP through external switches), Routing (RIP v2 and IP tunneling)
IP Stack	IPv4 and IPv6 simultaneously
Gateway Features	DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
VLAN	802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Point-to-point Radio : Power Requirement
Power Input	36 to 57 VDC via Ethernet port1 (Power over Ethernet), 12 VDC via Access port, Power should not be provided simultaneously on both ports
Power Consumption	17 Watt typical
Point-to-point Radio : Physical Characteristics
Temperature	OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity	100% relative humidity
IP Rating	IP67
Dimensions Packaged	27.55 x 6.85 x 27.55 in (700 x 174 x 700 mm)
Dimensions Unpackaged	23.62 x 23.62 x 3.85 in (600 x 600 x 92 mm)
Weight (PACKAGED)	23.15 lbs (10.5 kg)
Weight (UNPACKAGED)	14.33 lbs (6.5 kg)
Standards and Certifications	USA: FCC 90Y + 15E (UNII 15.247), Canada: IC RSS 102 + RSS 111 + RSS 247, Europe: RED EN 301 489-1 + EN 301-489-17 + EN 301 893 + EN 302 502
Safety	UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 (part -1 and -22)
Wind Loading	180 km/h (112.5 mph)
Point-to-point Radio : General
MTBF	250 000 hours
Point-to-point Radio : Package Checklist
Package Contents	One Tsunami® QB-10100-LNK with two N-type surge protected connectors (Two QB-10100-EPA) Or One Tsunami® QB-10150-LNK with integrated 22 dBi dual polarized antenna (Two QB-10150-EPR) Or One Tsunami® QB-10150-LKL with integrated 28 dBi dual polarized antenna (Two QB-10150-EPL), Two power injector and country specific power cord, Two Connector weatherproofing kit (Includes all recommended weatherproofing material), Two Wall / Pole mounting kit, Two Antenna alignment (RJ11) dongle, Two Grounding kit, Two Quick Installation Guide
