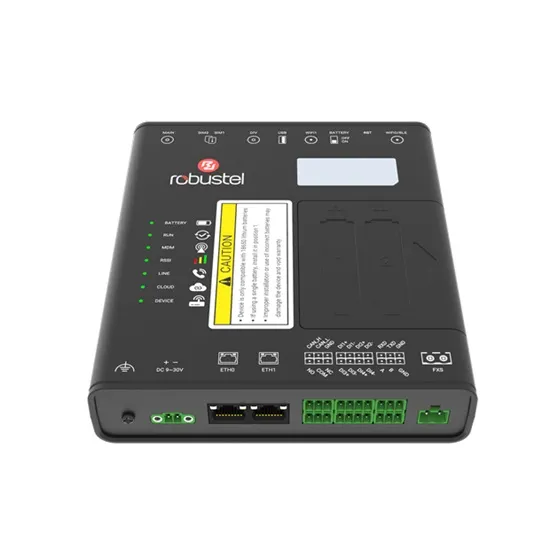

ROBUSTEL EV8100-A-4L-A04JP (B126005) Elevator Voice Gateway

Tags: Gateways , Elevator IoT , Industrial IoT (IIoT) , Smart Industrial IoT Gateway , EV8100 Elevator Voice Gateway

ROBUSTEL EV8100-A-4L-A04JP (B126005) Elevator Voice Gateway

Model: EV8100-A-4L-A04JP (B126005)

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

ROBUSTEL EV8100-A-4L-A04JP (B126005) FEATURES

Country/Region: JP
VoIP and VoLTE supported, VoLTE as a backup voice communication line
Battery holder for EN 81-28 and AS1735 compliance
Highly stable 4G/3G/2G cellular connectivity with global band coverage
High-performance compute engine with 8 GB eMMCFlash for running complex customer applications
‘Docker’ containerization supported
1 x RS232, 1 x RS485 +1 x CAN for connection to industrial/legacy devices
4 x DI & 1 x Relay for simple monitoring and control
Dual SIM card slots for redundant communications
802.11ac Wi-Fi (optional) supporting AP and Client modes
Bluetooth (optional), Bluetooth 5.2 compliant
Supports C, C++, Java, Python, Node.js, etc. for users to develop their applications
More than 50,000 applications from the Debian repository are currently available
Wireguard/IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN+ more VPN options
Supports RCMS- Robustel’s router/gateway management platform for effective management of large estates of devices

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

ROBUSTEL EV8100-A-4L-A04JP (B126005) INTRODUCTION

Robustel’s EV8100 is an advanced elevator voice gateway that supports voice transmission over VolP and VoLTE. This enables seamless communication between a cellular network and the elevator’s intercom system. This next-generation device offers multiple interfaces and allows for seamless remote monitoring and management of the elevator’s communication system, making it easy to address any issues or malfunctions quickly and efficiently. With its advanced features and robust design, the EV8100 is a reliable and essential safety solution for any modern building.

As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL EV8100-A-4L-A04JP (B126005) Elevator Voice Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the EV8100-A-4L-A06GL (B126001) and EV8100-A-4L-A34AU (B126003) models in the ROBUSTEL EV8100 Elevator Voice Gateway.

ROBUSTEL EV8100-A-4L-A04JP (B126005) CERTIFICATIONS

3G Modem : Interface
SIM card slot	2 x Mini SIM (2FF)
Ethernet Ports	2 x RJ45, 10/100 Mbps, LAN or WAN
USB	1 x USB 2.0 (host), Type A, 5V, 500mA
Digital Input and Output	4 x DI (Wet contact) + 1 x Relay (Dry contact)
Serial port	1 x RS232 + 1 x RS485 + 1 x CAN
Alert Output	-
Cellular Standards	-
Band Options	4G: LTE FDD : B1/B3/B8/B18/B19/B26; LTE TDD : B41, 3G:B1/B6/B8/B19
Cellular Antenna Connectors	SMA-K
WLAN Standards	No
WLAN Antenna Connector	No
GPS Antenna Connector	No
3G Modem : Radio specifications
Radio Connection type	No
Maximum data transfer speed of 2G	-
Maximum data transfer speed of 3G	-
Maximum data transfer speed of 4G	-
WiFi Radio Frequency	No
3G Modem : Software Specifications
VPN	IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN, Wireguard
Firewall	DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management	Web, CLI, SMS
Routing Redundancy	-
Time Management	-
3G Modem : Standards and protocols
Protocols	PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, HTTPs, ARP, VLAN, SSH2, DDNS, etc
3G Modem : Features and capabilities
Send and receive SMS	Yes
3G Modem : Security
Security and Encryption	-
Authentication	-
3G Modem : Power Requirements
Power Connector	2-pin 3.5 mm terminal block with lock
Power Consumption (Output Adapter)	Idle: 4W, Data Link: 25W(peak)
Input Voltage	9V to 30V DC
POE Support	-
Input Current	-
Reverse Polarity Protection	-
3G Modem : Buttons
Power button	No
Reset	1 x RST
3G Modem : LED Indicators
MTBF	-
Operating mode	Elevator Voice Gateway
LED Indicators	1 x Battery, 1 x RUN, 1 x Line, 1 x MDM, 1 x RSSI, 1 x Cloud, 1 x Device
3G Modem : Physical Characteristics
Dimensions	170 x 150 x 35 mm

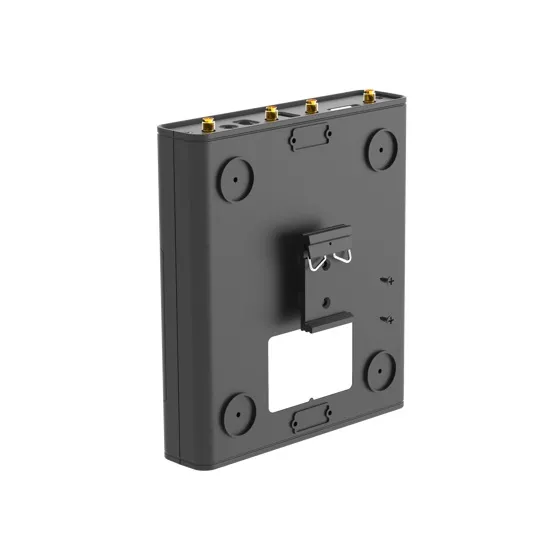

Installations	Desktop, wall mounting, and 35 mm DIN rail mounting, Optional magnetic mounting
Housing	Plastic
Weight	470 g
Operating Temperature	-20 to 60 °C (Without battery): 0 to 45 °C (With battery) Note: The battery can be charged at 0 to 35°C
Storage Humidity	-
Storage Temperature	-40 to 85 °C (Without battery), -20 to 35 °C (With battery for long term)
Type of Use	Environmental
Standards and Certifications	EMI, EMS, CE, UKCA, FCC, IC, PTCRB, Verizon, AT&T
