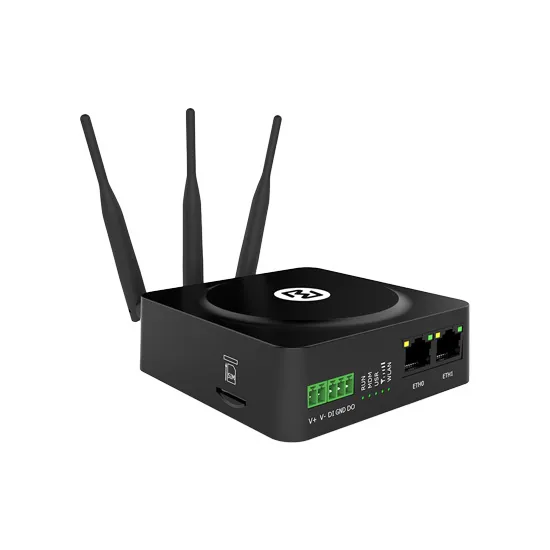

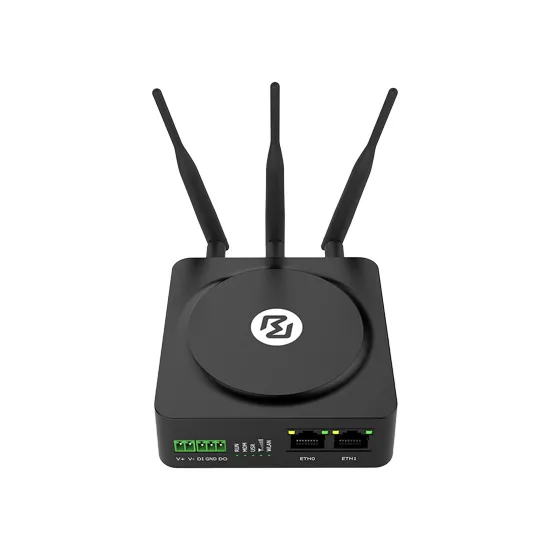

ROBUSTEL R1510-4L (B048703) Industrial Cellular VPN Router

ROBUSTEL R1510-4L (B048703) Industrial Cellular VPN Router
  • Model: R1510-4L (B048703)
$0.00
Ex Tax: $0.00

ROBUSTEL R1510-4L (B048703) FEATURES

  • Highly stable 2G/3G/4G cellular connections
  • Ethernet, Wifi, and 4G internet connection options with auto-failover
  • Free cloud management platform –RCMS
  • Fully programmable Linux environment with excellent SDK Documentation
  • RobustVPN provides a fixed IP address on ANY SIM card
  • Full SMS control for diagnosis and recovery from data network problems
  • Very small footprint for space-constrained applications
  • Wall-mount and DIN-rail mounting options are available
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

ROBUSTEL R1510-4L (B048703) INTRODUCTION

Robustel’s R1510 router is a Dual Ethernet port (LAN + WAN) 3G/4G router with advanced software functions at a very competitive price point. The R1510 has many unique software innovations including, but not limited to:

RobustVPN: Highly flexible hosted VPN service so customers can easily enjoy a “fixed IP router”

Data-Guard: Invaluable failsafe in case of a system failure and runaway data usage Smart

Reboot: SMS tool to push roaming SIMs from a non-working to a working state

Smart Roaming: Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.

RCMS: is Robustel’s free router monitoring service that is fully compatible with the R2011. It allows the customer to see a location overview of their routers quickly and simply on a map. Features such as data usage, signal strength, current network, and much more can then be viewed on a per-router basis. Over-the-air updates are supported for Firmware, router configuration, and Apps serving as essential ‘insurance’ if anything is not quite right during deployment.

As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL R1510-4L (B048703) Industrial Cellular VPN Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the R1510-4L (B048701) and R1510-4L (B048704) models in the ROBUSTEL R1510 Series.

ROBUSTEL R1510-4L (B048703) CERTIFICATIONS



3G Modem : Interface
SIM card slot 1 Mini SIM (2 FF)
Ethernet Ports 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
USB -
Digital Input and Output 1 x DI (wet contact) + 1 x DO (wet contact)
Serial port -
Alert Output -
Cellular Standards Cat 4
Band Options 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD: B40, 3G: WCDMA: B1/B2/B5/B8 2G: GSM: B2/B3/B5/B8
Cellular Antenna Connectors SMA-K
WLAN Standards 802.11 b/g/n, supports AP and Client modes
WLAN Antenna Connector RP-SMA-K (External antenna)
3G Modem : Radio specifications
Radio Connection type No
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency No
3G Modem : Software Specifications
VPN IPSec, OpenVPN, GRE, Wireguard
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS
Routing Redundancy -
Time Management -
3G Modem : Standards and protocols
Protocols PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
3G Modem : Features and capabilities
Send and receive SMS Yes
3G Modem : Security
Security and Encryption -
Authentication -
3G Modem : Power Requirements
Power Connector 2-pin 3.5 mm female socket
Power Consumption (Output Adapter) Idle: 100 mA@12 V, Data Link: 500 mA (peak) @12 V
Input Voltage 9 to 36 VDC
POE Support No
Input Current -
Reverse Polarity Protection -
3G Modem : Buttons
Power button No
Reset 1 x RST
3G Modem : LED Indicators
MTBF -
Operating mode Cellular VPN Router
LED Indicators 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x Wi-Fi
3G Modem : Physical Characteristics
Dimensions 91.5 x 91.5 x 31.5 mm
Installations Desktop, wall mounting, and 35 mm DIN rail mounting
Housing Plastic
Weight 150 g
Operating Temperature -25 to 70 °C
Storage Humidity -
Storage Temperature -40 to 85 °C
Type of Use Environmental
Standards and Certifications EMI, EMS, WEEE, CRC, URSEC, RCM, NOM, SUBTEL, MTC, ENACOM, ARCOTEL
