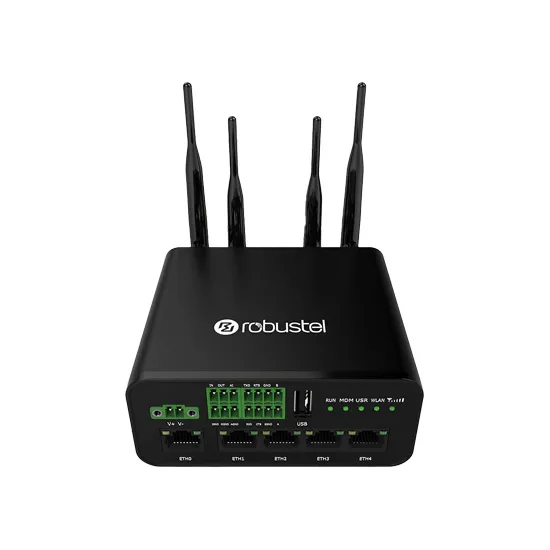

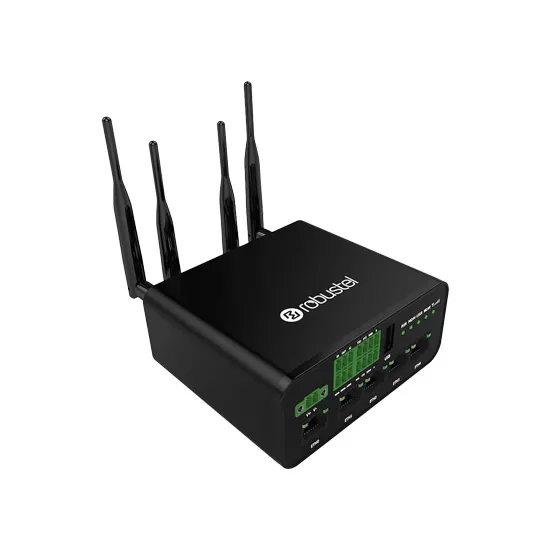

ROBUSTEL R1520-4L Global IoT Router






ROBUSTEL R1520-4L Global IoT Router
- Model: R1520-4L
$0.00
Ex Tax: $0.00
ROBUSTEL R1520-4L FEATURES
- Global 4G frequency coverage for all continents
- Huge investment in Global certifications for all major countries
- Free Cloud Management platform for easy global monitoring
- 802.3at compliant POE interface for simple powering
- E-mark certification for in-vehicle use
- Unique “Smart Roaming” capability for enhanced roaming SIM management
- Support Dual SIMs & WIFI/Ethernet as WAN
- RobustVPN – hosted service providing a “fixed IP” router
- Wireguard/IPsec/OpenVPN/DMVPN supported

Over 40 Years in Business
Successful track record across Canada

Full Engineering Services
A powerhouse to provide consultation, training, and support

Strong Brand Portfolio
Top-notch products from superb global and local suppliers

Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
ROBUSTEL R1520-4L INTRODUCTION
The R1520 Global router is Robustel’s latest addition to the popular ROBUSTEL R1520 Series. The Global variant has been designed for companies that want a simple one-size-fits-all-all for global 4G deployments. Traditionally, 4G routers have had to be supplied on a ‘per region’ basis due to cost and certification issues, but the R1520 Global changes all that with global 4G (LTE) frequencies and a massive investment by Robustel in Global certifications.
As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL R1520-4L Global IoT Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
ROBUSTEL R1520-4L CERTIFICATIONS
3G Modem : Interface | |
SIM card slot | 2 Mini SIMs (2FF) |
Ethernet Ports | 5 x 10/100 Mbps, 5 LAN by default, can be configured as 1 WAN + 4 LAN |
USB | 1 x 480Mbps high-speed USB 2.0 interface |
Digital Input and Output | 1 x DI + 1 x DO, wet contact |
Serial port | 1 x RS232 + 1 x RS485 |
Alert Output | - |
Cellular Standards | - |
Band Options | 4G (LTE FDD): B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28; 4G (LTE TDD): B38/B39/B40/B41, 3G: B1/B2/B4/B5/B6/B8/B19, 2G: 850/900/1800/1900MHz |
Cellular Antenna Connectors | SMA-K |
WLAN Standards | 802.11 b/g/n, supports AP and Client modes |
WLAN Antenna Connector | RP-SMA-K |
GPS Antenna Connector | GPS/GLONASS/BeiDou/Galileo |
3G Modem : Radio specifications | |
Radio Connection type | No |
Maximum data transfer speed of 2G | - |
Maximum data transfer speed of 3G | - |
Maximum data transfer speed of 4G | - |
WiFi Radio Frequency | No |
3G Modem : Software Specifications | |
VPN | IPsec, OpenVPN, GRE |
Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
Management | Web, CLI, SMS |
Routing Redundancy | - |
Time Management | - |
3G Modem : Standards and protocols | |
Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
3G Modem : Features and capabilities | |
Send and receive SMS | Yes |
3G Modem : Security | |
Security and Encryption | WEP, WPA, WPA2, 64/128 AES, TKIP |
Authentication | - |
3G Modem : Power Requirements | |
Power Connector | 2-pin 3.5 mm socket with lock |
Power Consumption (Output Adapter) | Idle: 100 mA@12 V, Data Link: 1.0 A (peak) @12 V |
Input Voltage | 9 to 36V DC |
POE Support | No |
Input Current | - |
Reverse Polarity Protection | No |
3G Modem : Buttons | |
Power button | No |
Reset | 1 x RST button |
3G Modem : LED Indicators | |
MTBF | - |
Operating mode | IoT Gateway |
LED Indicators | 1 x RUN, 1 x MDM, 1 x USR, 1 x RSSI, 1 x Wi-Fi |
3G Modem : Physical Characteristics | |
Dimensions | 105 x 90 x 46 mm |
Installations | Desktop, wall mounting, and 35 mm DIN rail mounting |
Housing | Plastic |
Weight | 250 g |
Operating Temperature | -25 to 70 °C |
Storage Humidity | - |
Storage Temperature | -40 to 85 °C |
Type of Use | Environmental |
Standards and Certifications | EMC, EMI, EMS, E-Mark, RCM, CE, UKCA, FCC, IC, PTCRB, AT&T, Verizon, ICASA, TDRA, NTC, IMDA, NBTC, SIRIM, MTC, EAC*, Anatel, Rogers, CRC, SUBTEL, Enacom, URSEC, KCC, NOM, POSTEL, ARCOTEL, WEEE |
