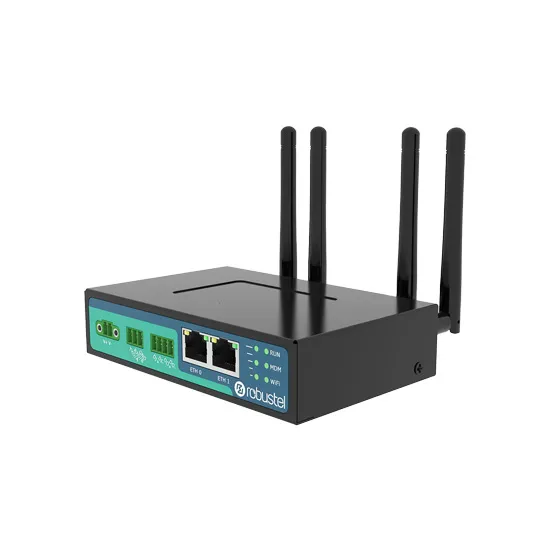

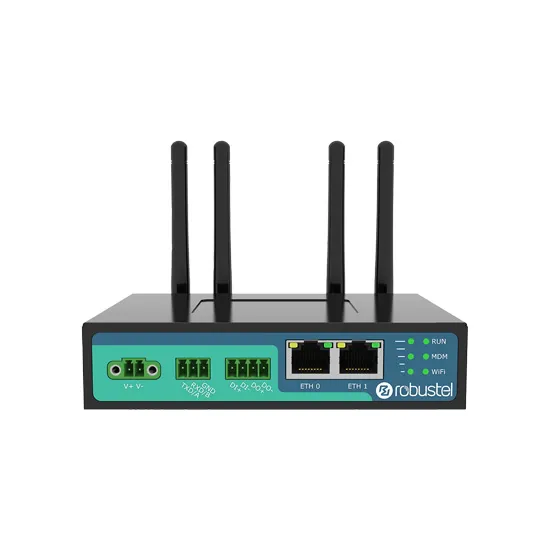

ROBUSTEL R2010-B-4L-A03AU Dual-SIM VPN IoT Gateway






- Model: R2010-B-4L-A03AU
ROBUSTEL R2010-B-4L-A03AU FEATURES
- PoE-PD input voltage
- Country/Region: South America, Oceania
- Certification: RCM, E-mark
- Dual-SIM redundancy for continuous cellular network connections
- Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup, and ICMP detection
- WAN – Static/DHCP Client
- RobustOS + SDK + Apps
- IPsec/OpenVPN/GRE/Wireguard VPN capabilities
- Management and maintenance via Web/RCMS Cloud
- Auto reboot via SMS/time schedule
- Robust industrial design (9 to 36 V DC, desktop or wall mounting, or DIN rail mounting)




ROBUSTEL R2010-B-4L-A03AU INTRODUCTION
The R2010 considers customers' varying budgetary, interface, and connectivity requirements to create a simple and cost-competitive networking solution for customers deploying IoT solutions in industrial environments such as water, gas, electricity, factory automation, and warehousing.
The R2010 runs on Robustel’s own Linux-based Operating System, RobustOS. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization by using C and C++. It also provides rich Apps to meet fragmented IoT market demands such as:
Highly flexible hosted VPN service so customers can easily enjoy a “fixed IP Gateway”
Data-Guard
Invaluable failsafe in case of a system failure and runaway data usage
Smart Reboot
SMS tool to push roaming SIMs from a non-working to a working state
Smart Roaming
It provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.
As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL R2010-B-4L-A03AU Dual-SIM VPN IoT Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the R2010-A-4L-A03AU and R2010-A-4L-A12EU models in the ROBUSTEL R2010 Series.
ROBUSTEL R2010-B-4L-A03AU CERTIFICATIONS
3G Modem : Interface | |
SIM card slot | 2 x Mini SIM (2FF) |
Ethernet Ports | 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN |
USB | - |
Digital Input and Output | 1 x DI, 1 x DO |
Serial port | RS232 or RS485 (software configurable) |
Alert Output | - |
Cellular Standards | Cat 4 |
Band Options | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD: B40, 3G: WCDMA: B1/B2/B5/B8, 2G: GSM: B2/B3/B5/B8 |
Cellular Antenna Connectors | SMA-K |
WLAN Standards | 802.11 b/g/n, supporting AP and Client modes |
WLAN Antenna Connector | RP-SMA-K |
GPS Antenna Connector | No |
3G Modem : Radio specifications | |
Radio Connection type | No |
Maximum data transfer speed of 2G | - |
Maximum data transfer speed of 3G | - |
Maximum data transfer speed of 4G | - |
WiFi Radio Frequency | No |
3G Modem : Software Specifications | |
VPN | IPsec, OpenVPN, GRE, WireGuard |
Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
Management | Web, CLI, SMS |
Routing Redundancy | - |
Time Management | - |
3G Modem : Standards and protocols | |
Protocols | PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
3G Modem : Features and capabilities | |
Send and receive SMS | Yes |
3G Modem : Security | |
Security and Encryption | WEP, WPA, WPA2, WPA3, 64/128 AES, TKIP |
Authentication | - |
3G Modem : Power Requirements | |
Power Connector | 2-pin 3.5 mm female socket |
Power Consumption (Output Adapter) | Idle: 60 mA@12 V, Data link: 580mA (peak)@12 V |
Input Voltage | 9 to 36 V DC |
POE Support | Yes |
Input Current | - |
Reverse Polarity Protection | - |
3G Modem : Buttons | |
Power button | No |
Reset | 1 x RST |
3G Modem : LED Indicators | |
MTBF | - |
Operating mode | Built-in |
LED Indicators | 1 x RUN, 1 x MDM, 1 x WIFI, 3 x RSSI |
3G Modem : Physical Characteristics | |
Dimensions | 127 x 82 x 30 mm |
Installations | Desktop, wall mounting, and 35 mm DIN rail mounting |
Housing | Metal |
Weight | 350 g |
Operating Temperature | -35 to 75 °C |
Storage Humidity | - |
Storage Temperature | -40 to 85 °C |
Type of Use | Environmental |
Standards and Certifications | EMS, EMI, RCM, E-mark |
