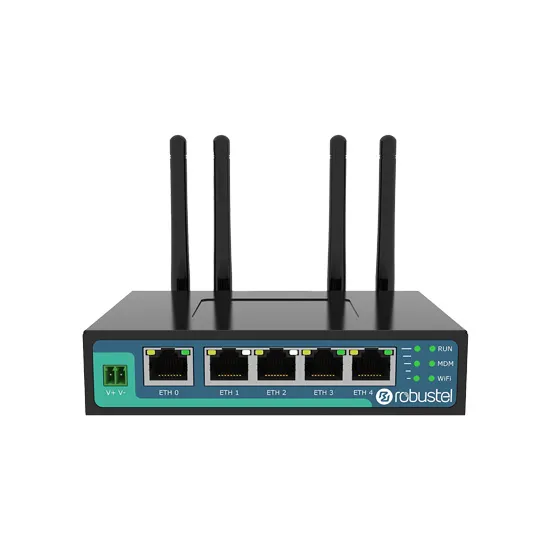

ROBUSTEL R2011-A-4L-A23CN Versatile IoT Router

ROBUSTEL R2011-A-4L-A23CN Versatile IoT Router
  • Model: R2011-A-4L-A23CN
$0.00
Ex Tax: $0.00

ROBUSTEL R2011-A-4L-A23CN FEATURES

  • Country/Region: China, India
  • CCC Certification
  • Dual-SIM redundancy for continuous cellular network connections
  • Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup, and ICMP detection
  • WAN – Static/DHCP Client
  • RobustOS + SDK + Apps
  • IPsec/OpenVPN/GRE/Wireguard VPN capabilities
  • Management and maintenance via Web/RCMS Cloud
  • Auto reboot via SMS/schedule
  • Robust industrial design (9 to 36 V DC, desktop or wall mounting, or DIN rail mounting)
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

ROBUSTEL R2011-A-4L-A23CN INTRODUCTION

The Robustel R2011 Industrial Cellular Router is a rugged, versatile 4G router with 5 Ethernet ports, dual SIM single standby capability, and advanced functions for mission-critical IoT or M2M applications. The R2011 runs on Robustel’s own Linux-based Operating System, RobustOS. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization using C and C++. It also provides rich Apps to meet fragmented IoT market demands such as:

RobustVPN: Highly flexible hosted VPN service so customers can easily enjoy a “fixed IP router”
Data-Guard: Invaluable failsafe in case of a system failure and runaway data usage.Smart
Reboot: SMS tool to push roaming SIMs from a non-working to a working state.
Smart Roaming: Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.
RCMS: is Robustel’s free router monitoring service that is fully compatible with the R2011. It allows the customer to see a location overview of their routers quickly and simply on a map. Features such as data usage, signal strength, current network, and much more can then be viewed on a per-router basis. Over-the-air updates are supported for Firmware, router configuration, and Apps, serving as essential ‘insurance’ if anything is not quite right during deployment.

As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL R2011-A-4L-A23CN Dual-SIM VPN IoT Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the R2011-A-4L-A12EU and R2011-B-4L-A23CN models in the ROBUSTEL R2011 Series.

ROBUSTEL R2011-A-4L-A23CN CERTIFICATIONS



3G Modem : Interface
SIM card slot 2 x Mini SIM (2FF)
Ethernet Ports 5 x 10/100 Mbps, 5 x LAN or 4 x LAN + 1 x WAN
USB -
Digital Input and Output -
Serial port -
Alert Output -
Cellular Standards Cat 4
Band Options 4G: LTE FDD: B1/B3/B5/B8; LTE TDD: B34/B38/B39/B40/B41, 3G: WCDMA: B1/B5/B8, 2G: GSM: B3/B8
Cellular Antenna Connectors SMA-K
WLAN Standards 802.11 b/g/n, supporting AP and Client modes
WLAN Antenna Connector RP-SMA-K
GPS Antenna Connector No
3G Modem : Radio specifications
Radio Connection type No
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency No
3G Modem : Software Specifications
VPN IPsec, OpenVPN, GRE, WireGuard
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS
Routing Redundancy -
Time Management -
3G Modem : Standards and protocols
Protocols PPPoE, TCP, UDP, DHCP, NAT, DNS, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
3G Modem : Features and capabilities
Send and receive SMS Yes
3G Modem : Security
Security and Encryption WEP, WPA, WPA2, WPA3, 64/128 AES, TKIP
Authentication -
3G Modem : Power Requirements
Power Connector 2-pin 3.5 mm female socket
Power Consumption (Output Adapter) Idle: 70 mA@12 V, Data link: 660 mA (peak)@12 V
Input Voltage 9 to 36 V DC
POE Support No
Input Current -
Reverse Polarity Protection -
3G Modem : Buttons
Power button No
Reset 1 x RST
3G Modem : LED Indicators
MTBF -
Operating mode Built-in
LED Indicators 1 x RUN, 1 x MDM, 1 x Wi-Fi, 3 x RSSI
3G Modem : Physical Characteristics
Dimensions 127 x 82 x 30 mm
Installations Desktop, wall mounting, and 35 mm DIN rail mounting
Housing Metal
Weight 350 g
Operating Temperature -35 to 75°C
Storage Humidity -
Storage Temperature -40 to 85°C
Type of Use Environmental
Standards and Certifications EMI, EMS, CCC
