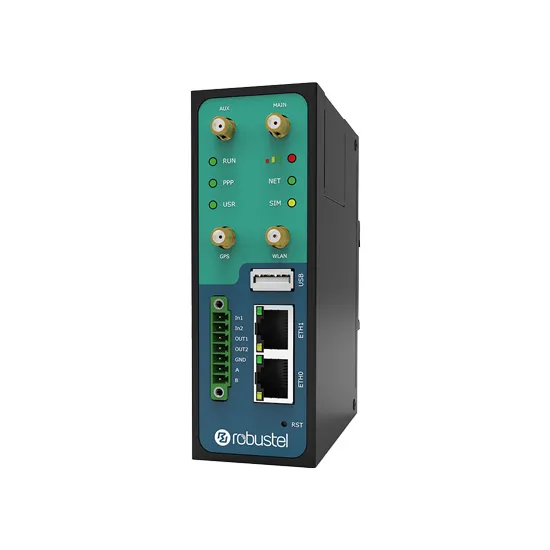

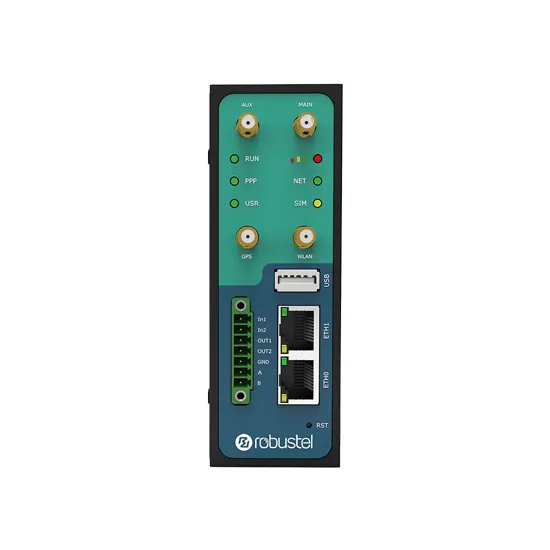

ROBUSTEL R3000-4L (B018728) Industrial LTE Router






- Model: R3000-4L (B018728)
ROBUSTEL R3000-4L (B018728) FEATURES
- Country/Region: Oceania, South America
- RCM, ANATEL, CRC, MTC, ENACOM, ASEP Certifications
- The option Backup Mode to support WWAN1+WWAN2 Cold, WWAN1+WAN/WLAN warm, and loading balancing backup mode
- Supports IPv6
- RobustOS + SDK + App
- IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
- Management and maintenance via Web/CLI/SNMP/RCMS
- Robust industrial design (9 to 60V DC, desktop or wall mounting, or DIN rail mounting)




ROBUSTEL R3000-4L (B018728) INTRODUCTION
The Robustel Industrial Dual SIM Cellular VPN Router (R3000) is a rugged cellular router offering state-of-the-art mobile connectivity for machine-to-machine (M2M) applications. R3000 is used extensively in industrial applications such as pipeline monitoring, water treatment, Gas and electricity distribution networks, and many similar environments where a hardened product with bulletproof cellular communications is required. R3000 has extensive overvoltage protection, high EMC immunity, and a DIN-rail / panel mount form factor, making it ideal for use in any industrial automation enclosure.
The following software features are present on R3000:
RobustVPN: Highly flexible hosted VPN service so customers
can easily enjoy a “fixed IP router”
Data-Guard: Invaluable failsafe in case of a system failure and runaway data
usage.e Smart
You can also find the R3000-4L (B018735) and R3000-4L (B018745) models in the ROBUSTEL R3000 LTE Router Series.
ROBUSTEL R3000-4L (B018728) CERTIFICATIONS
3G Modem : Interface | |
SIM card slot | 2 x Mini SIM (2FF) |
Ethernet Ports | 2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN |
USB | 1 x USB 2.0 host, up to 480 Mbps |
Digital Input and Output | 2 x DI (Support dry contact) + 2 x DO (wet contact) |
Serial port | 1 x RS232 + 1 x RS485 |
Alert Output | - |
Cellular Standards | Cat 4 |
Band Options | 4G: LTE FDD:B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD: B40, 3G: WCDMA: B1/B2/B5/B8, 2G: GSM: B2/B3/B5/B8 |
Cellular Antenna Connectors | SMA-K |
WLAN Standards | No |
WLAN Antenna Connector | No |
GPS Antenna Connector | No |
3G Modem : Radio specifications | |
Radio Connection type | No |
Maximum data transfer speed of 2G | - |
Maximum data transfer speed of 3G | - |
Maximum data transfer speed of 4G | - |
WiFi Radio Frequency | No |
3G Modem : Software Specifications | |
VPN | IPsec, OpenVPN, GRE, WireGuard |
Firewall | DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
Management | Web, CLI, SMS |
Routing Redundancy | - |
Time Management | - |
3G Modem : Standards and protocols | |
Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
3G Modem : Features and capabilities | |
Send and receive SMS | Yes |
3G Modem : Security | |
Security and Encryption | - |
Authentication | - |
3G Modem : Power Requirements | |
Power Connector | 3-pin 5 mm female socket with lock |
Power Consumption (Output Adapter) | Idle: 100 mA@12 V, Data link: 400 mA (peak) @12 V |
Input Voltage | 9 to 60 VDC |
POE Support | No |
Input Current | - |
Reverse Polarity Protection | - |
3G Modem : Buttons | |
Power button | No |
Reset | 1 x RST |
3G Modem : LED Indicators | |
MTBF | - |
Operating mode | Built-in |
LED Indicators | 1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET, 1 x SIM |
3G Modem : Physical Characteristics | |
Dimensions | 125 x 104 x 43.5 mm |
Installations | Desktop, wall mounting, and 35 mm DIN rail mounting |
Housing | Metal |
Weight | 570 g |
Operating Temperature | -40 to 75 °C |
Storage Humidity | - |
Storage Temperature | -40 to 85 °C |
Type of Use | Environmental |
Standards and Certifications | EMI, EMS, RCM, ANATEL, CRC, MTC, ENACOM |
