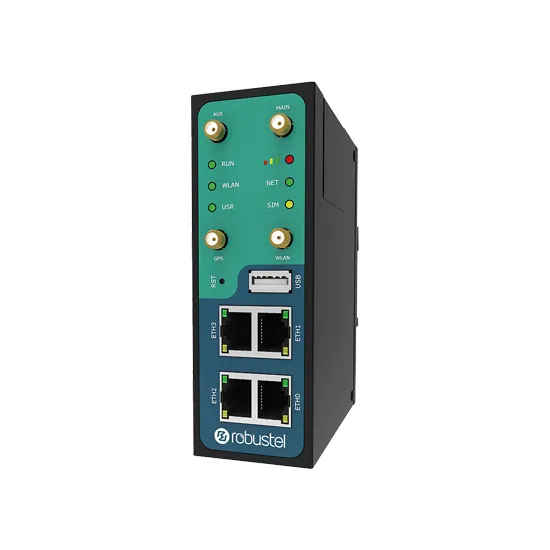

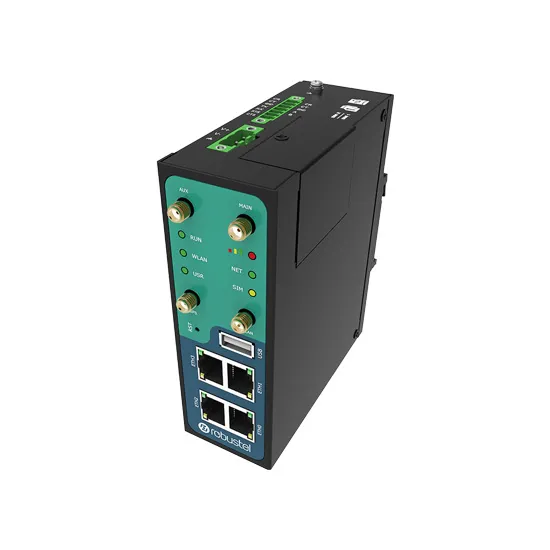

ROBUSTEL R3000-L4L (B025712) Lite Dual-SIM VPN Gateway

ROBUSTEL R3000-L4L (B025712) Lite Dual-SIM VPN Gateway
  • Model: R3000-L4L (B025712)
$0.00
Ex Tax: $0.00

ROBUSTEL R3000-L4L (B025712) FEATURES

  • Country/Region: Oceania, South America
  • RCM, CRC, SUBTEL, MTC, ENACOM, URSEC Certifications
  • Dual SIM redundancy for persistent 2G/3G/4G cellular network connections
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN
  • Management and maintenance via Web/CLI/SMS/SNMP/RCMS
  • Robust industrial design (9 to 36V DC, desktop or wall mounting, or DIN rail mounting)
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

ROBUSTEL R3000-L4L (B025712) INTRODUCTION

The Robustel Industrial Dual SIM Cellular VPN Router (R3000 Lite) is a rugged cellular router offering state-of-the-art mobile connectivity for machine-to-machine (M2M) applications. R3000 Lite is used extensively in industrial applications such as pipeline monitoring, water treatment, Gas and electricity distribution networks, and many similar environments where a hardened product with bulletproof cellular communications is required. R3000 Lite has extensive overvoltage protection, high EMC immunity, and a DIN-rail / panel mount form factor, making it ideal for use in any industrial automation enclosure.

The following software features are present on R3000 Lite:

RobustVPN: Highly flexible hosted VPN service so customers can easily enjoy a “fixed IP router”

Data-Guard: Invaluable failsafe in case of a system failure and runaway data usage.e Smart

Reboot: SMS tool to push roaming SIMs from a non-working to a working state

Smart Roaming: Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.

RCMS: is Robustel’s free router monitoring service that is fully compatible with the R3000. It allows the customer to see a location overview of their routers quickly and simply on a map. Features such as data usage, signal strength, current network, and much more can then be viewed on a per-router basis. Over-the-air updates are supported for Firmware, router configuration, and Apps, serving as essential ‘insurance’ if anything is not quite right during deployment.

As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL R3000-L4L (B025712) Lite Dual-SIM VPN Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

ROBUSTEL R3000-L4L (B025712) CERTIFICATIONS



3G Modem : Interface
SIM card slot 2 x Mini SIM (2FF)
Ethernet Ports 1 x 10/100 Mbps LAN port
USB 1 x USB 2.0 host, up to 480 Mbps
Digital Input and Output -
Serial port 1 x RS232 + 1 x RS485
Alert Output -
Cellular Standards Cat 4
Band Options 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD: B40, 3G: WCDMA: B1/B2/B5/B8, 2G: GSM: B2/B3/B5/B8
Cellular Antenna Connectors SMA-K
WLAN Standards No
WLAN Antenna Connector No
GPS Antenna Connector No
3G Modem : Radio specifications
Radio Connection type No
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency No
3G Modem : Software Specifications
VPN IPsec, OpenVPN, GRE
Firewall DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Management Web, CLI, SMS
Routing Redundancy -
Time Management -
3G Modem : Standards and protocols
Protocols PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
3G Modem : Features and capabilities
Send and receive SMS Yes
3G Modem : Security
Security and Encryption -
Authentication -
3G Modem : Power Requirements
Power Connector 3.5 mm terminal block
Power Consumption (Output Adapter) Idle: 100 mA@12 V, Data link: 400 mA (peak) @12 V
Input Voltage 9 to 36 VDC
POE Support No
Input Current -
Reverse Polarity Protection -
3G Modem : Buttons
Power button No
Reset 1 x RST
3G Modem : LED Indicators
MTBF -
Operating mode Built-in
LED Indicators 1 x RUN, 1 x PPP, 1 x USR, 3 x RSSI
3G Modem : Physical Characteristics
Dimensions 105 x 98 x 29.5 mm
Installations Desktop, wall mounting, and 35 mm DINrail mounting
Housing Metal
Weight 305 g
Operating Temperature -40 to 75 °C
Storage Humidity -
Storage Temperature -40 to 85 °C
Type of Use Environmental
Standards and Certifications EMI, EMS, RCM, CRC, SUBTEL, MTC, ENACOM, URSEC
