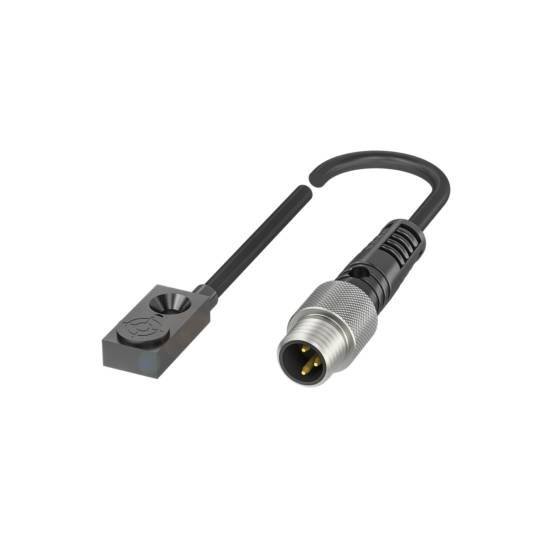

BALLUFF BES01YM INDUCTIVE STANDARD SENSOR
- Model: BES01YM
BALLUFF BES01YM FEATURES
- Connection: M8x1-Male, 3-pin
- Operating temperature: -25 to 70 °C
- IP rating: IP67
- Shielded and unshielded versions
- Plug or cable connection
BALLUFF BES01YM INTRODUCTION
Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.
The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES01YM INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES04R1 and BES04R4 models in the BALLUFF Inductive Standard Sensors.
BALLUFF BES01YM CERTIFICATIONS
Inductive Sensors : Interface | |
Output Characteristic | PNP normally open (NO) |
Inductive Sensors : Electrical Connection | |
Connection | M8x1-Male, 3-pin, Cable with connector, 0.30 m, PUR |
Polarity Reversal Protected | Yes |
Inductive Sensors : Electrical Data | |
Protection Class | - |
Ripple | 15 % |
Switching Frequency | 3000 Hz |
Operating Voltage Ub | 10 to 30 VDC |
Current (Ie) | 100 mA |
Inductive Sensors : Range/Distance | |
Measuring Range | 2.5 mm |
Assured Operating Distance Sa | 2.2 mm |
Real Switching Distance sr | 2.5 mm |
Inductive Sensors : Physical and Environmental Characteristics | |
Dimension | 16 x 8 x 4.7 mm |
Weight | - |
Installation | non-flush |
Operating Temperature | -25 to 70 °C |
Housing | PA 6, GF30 |
IP Rating | IP67 |
Tightening Torque | - |
MTTF | 830 a |
Standards and Approvals | CE, UKCA, cULus, WEEE, IEC 60947-5-2 |
