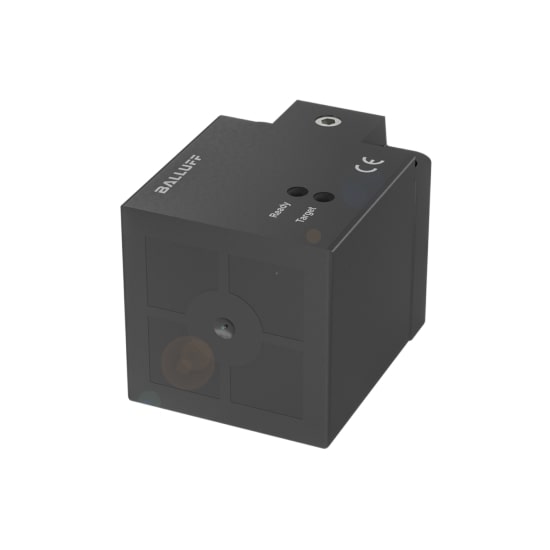

BALLUFF BES021E INDUCTIVE STANDARD SENSOR

BALLUFF BES021E INDUCTIVE STANDARD SENSOR
  • Model: BES021E
$0.00
Ex Tax: $0.00

BALLUFF BES021E CERTIFICATIONS

  • Connection: M12x1-Male, 4-pin, A-coded
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Shielded and unshielded versions
  • Plug or cable connection

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

BALLUFF BES021E INTRODUCTION

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.


As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES021E INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the BES01YF and BES01YJ models in the BALLUFF Inductive Standard Sensors.

BALLUFF BES021E CERTIFICATIONS



    Inductive Sensors : Interface
    Output Characteristic PNP normally open/normally closed (NO/NC)
    Inductive Sensors : Electrical Connection
    Connection M12x1-Male, 4-pin, A-coded
    Polarity Reversal Protected Yes
    Inductive Sensors : Electrical Data
    Protection Class II
    Ripple 15 %
    Switching Frequency 50 Hz
    Operating Voltage Ub 10 to 30 VDC
    Current (Ie) 200 mA
    Inductive Sensors : Range/Distance
    Measuring Range 30 mm
    Assured Operating Distance Sa 24 mm
    Real Switching Distance sr 30 mm
    Inductive Sensors : Physical and Environmental Characteristics
    Dimension 40 x 40 x 62 mm
    Weight -
    Installation non-flush
    Operating Temperature -25 to 70 °C
    Housing PBT
    IP Rating IP67
    Tightening Torque 40 Nm
    MTTF 675 a
    Standards and Approvals CE, UKCA, cULus, WEEE, IEC 60947-5-2
