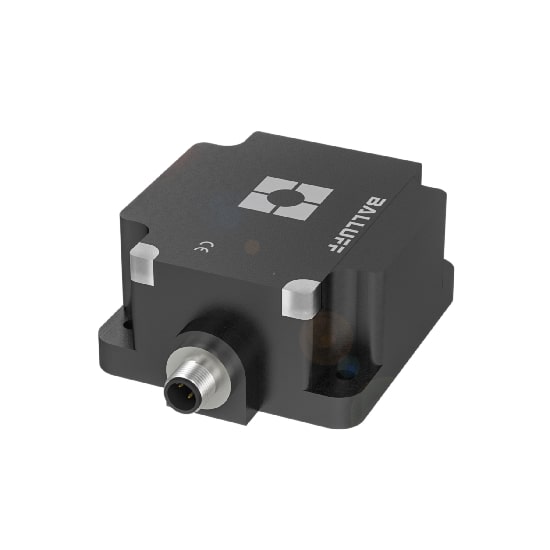

BALLUFF BES0225 INDUCTIVE STANDARD SENSOR

BALLUFF BES0225 INDUCTIVE STANDARD SENSOR
  • Model: BES0225
$0.00
Ex Tax: $0.00

BALLUFF BES0225 FEATURES

  • Connection: M12x1-Male, 4-pin, A-coded
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Shielded and unshielded versions
  • Plug or cable connection
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

BALLUFF BES0225 INTRODUCTION

Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.


As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES0225 INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the BES008E and BES008F models in the BALLUFF Inductive Standard Sensors.


BALLUFF BES0225 CERTIFICATIONS



Inductive Sensors : Interface
Output Characteristic PNP normally open/normally closed (NO/NC)
Inductive Sensors : Electrical Connection
Connection M12x1-Male, 4-pin, A-coded
Polarity Reversal Protected Yes
Inductive Sensors : Electrical Data
Protection Class II
Ripple 10 %
Switching Frequency 50 Hz
Operating Voltage Ub 10 to 55 VDC
Current (Ie) 200 mA
Inductive Sensors : Range/Distance
Measuring Range 40 mm
Assured Operating Distance Sa 32 mm
Real Switching Distance sr 40 mm
Inductive Sensors : Physical and Environmental Characteristics
Dimension 106 x 80 x 40 mm
Weight -
Installation for flush mounting
Operating Temperature -25 to 70 °C
Housing PBT, GF30
IP Rating IP67
Tightening Torque -
MTTF 455 a
Standards and Approvals CE, UKCA, WEEE, IEC 60947-5-2
