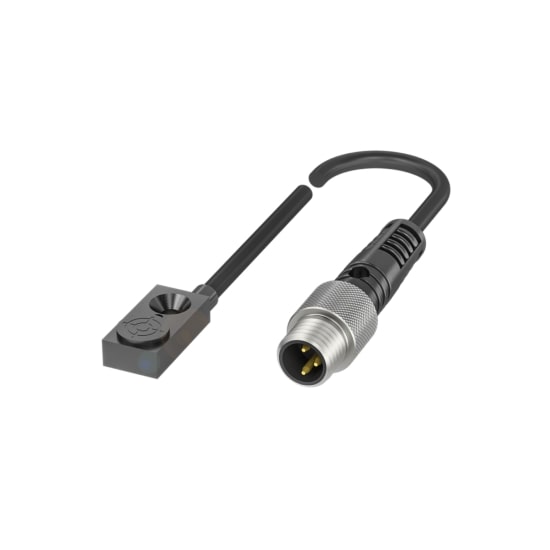

BALLUFF BES0447 INDUCTIVE STANDARD SENSOR

BALLUFF BES0447 INDUCTIVE STANDARD SENSOR
  • Model: BES0447
$0.00
Ex Tax: $0.00

    BALLUFF BES0447 FEATURES

    • Connection: M8x1-Male, 3-pin, Cable with connector, 0.30 m, PUR
    • Operating temperature: -25 to 70 °C
    • IP rating: IP67
    • Shielded and unshielded versions
    • Plug or cable connection

    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    BALLUFF BES0447 INTRODUCTION

    Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

    The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.


    BALLUFF BES0447 CERTIFICATIONS



    Sensor : Basic features
    Approval/Conformity CE, UKCA, cULus, WEEE
    Basic standard IEC 60947-5-2
    Sensor : Display/Operation
    Function Indicator Yes
    Power Indicator No
    Sensor : Electrical Connection
    Cable diameter D 2.40 mm
    Cable length L 0.3 m
    Number of conductors _
    Sensor : Electrical Data
    Operating Voltage Ub 10 to 30 VDC
    Output Resistance Ra Open emitter
    Protection Class _
    Switching Frequency 3000 Hz
    Sensor : Environmental Conditions
    EN 60068-2-27, Shock Half-sinus, 30 g , 11 ms
    EN 60068-2-6, Vibration 55 Hz, amplitude 1 mm, 3x30 min
    Sensor : Functional Safety
    MTTF (40 °C) 830 a
    Sensor : Interface
    Switching Output PNP normally closed (NC)
    Sensor : Material
    Housing Material PA 6, GF30
    Material Jacket PUR
    Material Sensing Surface PA 6, GF30
    Sensor : Mechanical Data
    Dimension 16 x 8 x 4.7 mm
    Installation non-flush
    Size 16x8x4.7
    Sensor : Range/Distance
    Assured Operating Distance Sa 2.2 mm
    Rated Operating Distance Sn 2.5 mm
    Real Switching Distance sr 2.5 mm
