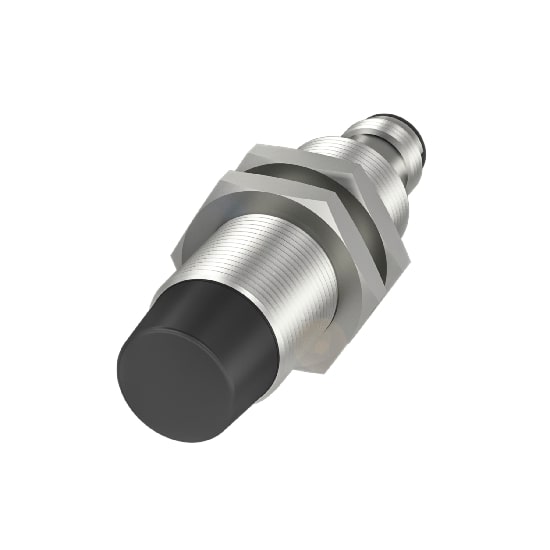

BALLUFF BES044J INDUCTIVE STANDARD SENSOR
- Model: BES044J
BALLUFF BES044J FEATURES
- Connection: M12x1-Male, 3-pin, A-coded
- Operating temperature: -40 to 85 °C
- IP rating: IP68
- Trademark: Global
- Shielded and unshielded versions
- Plug or cable connection
BALLUFF BES044J INTRODUCTION
Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.
The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES044J INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES00A2 and BES00A3 models in the BALLUFF Inductive Standard Sensors.
BALLUFF BES044J CERTIFICATIONS
Inductive Sensors : Interface | |
Output Characteristic | NPN normally open (NO) |
Inductive Sensors : Electrical Connection | |
Connection | M12x1-Male, 3-pin, A-coded |
Polarity Reversal Protected | Yes |
Inductive Sensors : Electrical Data | |
Protection Class | II |
Ripple | 15 % |
Switching Frequency | 430 Hz |
Operating Voltage Ub | 10 to 30 VDC |
Current (Ie) | 200 mA |
Inductive Sensors : Range/Distance | |
Measuring Range | 16 mm |
Assured Operating Distance Sa | 12.8 mm |
Real Switching Distance sr | 16 mm |
Inductive Sensors : Physical and Environmental Characteristics | |
Dimension | Ø 18 x 66 mm |
Weight | - |
Installation | non-flush |
Operating Temperature | -40 to 85 °C |
Housing | Brass, Nickel-free coated |
IP Rating | IP68 |
Tightening Torque | 25 Nm |
MTTF | 389 a |
Standards and Approvals | CE, UKCA, cULus, WEEE, IEC 60947-5-2 |
