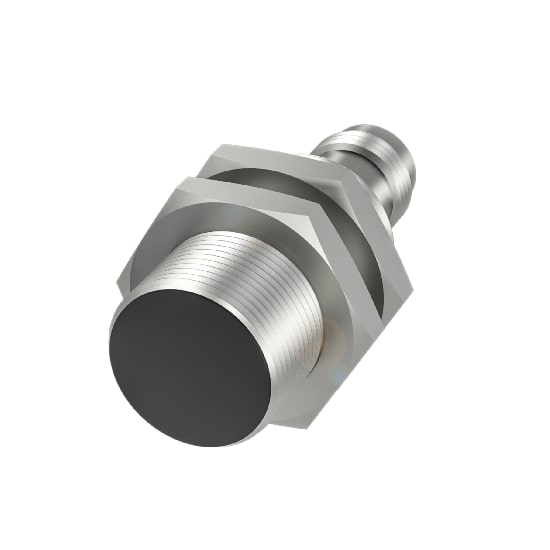

BALLUFF BES04R1 INDUCTIVE STANDARD SENSOR
BALLUFF BES04R1 INDUCTIVE STANDARD SENSOR
- Model: BES04R1
$0.00
Ex Tax: $0.00
![Over 40 Years in Business](https://www.manuauto.com/image/cache/catalog/Image/added%20value/Over-40-Years-in-Business-ManuAuto-60x60fill.png)
Over 40 Years in Business
Successful track record across Canada
![Full Engineering Services](https://www.manuauto.com/image/cache/catalog/Image/added%20value/Full-Engineering-Services-ManuAuto-60x60fill.png)
Full Engineering Services
A powerhouse to provide consultation, training, and support
![Strong Brand Portfolio](https://www.manuauto.com/image/cache/catalog/Image/added%20value/Strong-Brand-Portfolio-ManuAuto-60x60fill.png)
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
![Advanced Technologies](https://www.manuauto.com/image/cache/catalog/Image/added%20value/Advanced-Technologies-ManuAuto-60x60fill.png)
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.
The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
Certifications
Features
- Connection: M12x1-Male, 3-pin, A-coded
- Operating temperature: -40 to 85 °C
- IP rating: IP68
- Shielded and unshielded versions
- Plug or cable connection
Sensor : Basic features | |
Approval/Conformity | CE, UKCA, cULus, WEEE |
Basic standard | IEC 60947-5-2 |
Sensor : Display/Operation | |
Function Indicator | Yes |
Power Indicator | No |
Sensor : Electrical Connection | |
Cable diameter D | _ |
Cable length L | _ |
Number of conductors | _ |
Sensor : Electrical Data | |
Operating Voltage Ub | 10 to 30 VDC |
Output Resistance Ra | 33.0 kOhm + D |
Protection Class | II |
Switching Frequency | 2000 Hz |
Sensor : Environmental Conditions | |
EN 60068-2-27, Shock | Half-sinus, 30 g , 11 ms |
EN 60068-2-6, Vibration | 55 Hz, amplitude 1 mm, 3x30 min |
Sensor : Functional Safety | |
MTTF (40 °C) | 465 a |
Sensor : Interface | |
Switching Output | PNP normally closed (NC) |
Sensor : Material | |
Housing Material | Brass, Nickel-free coated |
Material Jacket | _ |
Material Sensing Surface | PBT |
Sensor : Mechanical Data | |
Dimension | Ø 18 x 46 mm |
Installation | for flush mounting |
Size | M8x1 |
Sensor : Range/Distance | |
Assured Operating Distance Sa | 4.0 mm |
Rated Operating Distance Sn | 5.0 mm |
Real Switching Distance sr | 5 mm |
