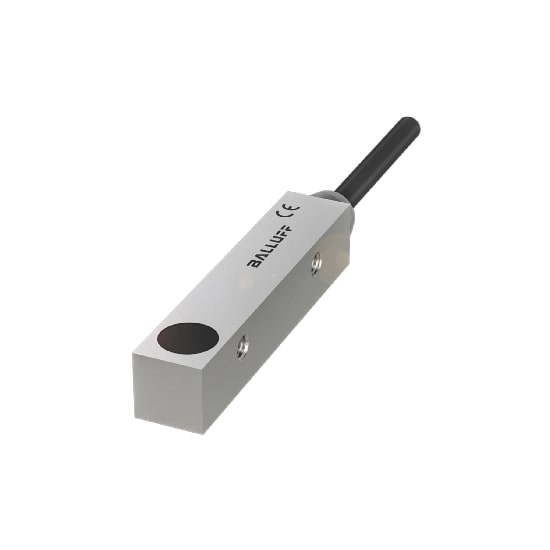

BALLUFF BES05NZ INDUCTIVE STANDARD SENSOR

Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

Introduction


Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.


Certifications




Features


  • Connection: M12x1-Male, 4-pin, Cable with connector, 0.3 m, PUR
  • Operating temperature: -25 to 70 °C
  • IP rating: IP67
  • Shielded and unshielded versions
  • Plug or cable connection
Sensor : Basic features
Approval/Conformity CE, UKCA, cULus, WEEE
Basic standard IEC 60947-5-2
Sensor : Display/Operation
Function Indicator Yes
Power Indicator No
Sensor : Electrical Connection
Cable diameter D 3.00 mm
Cable length L 0.3 m
Number of conductors _
Sensor : Electrical Data
Operating Voltage Ub 10 to 30 VDC
Output Resistance Ra 33.0 kOhm + D
Protection Class II
Switching Frequency 3000 Hz
Sensor : Environmental Conditions
EN 60068-2-27, Shock Half-sinus, 30 g , 11 ms
EN 60068-2-6, Vibration 55 Hz, amplitude 1 mm, 3x30 min
Sensor : Functional Safety
MTTF (40 °C) 830 a
Sensor : Interface
Switching Output PNP normally closed (NC)
Sensor : Material
Housing Material Zinc, Die casting
Material Jacket PUR
Material Sensing Surface PBT
Sensor : Mechanical Data
Dimension 40 x 8 x 8 mm
Installation for flush mounting
Size 8x8
Sensor : Range/Distance
Assured Operating Distance Sa 1.6 mm
Rated Operating Distance Sn 2 mm
Real Switching Distance sr 2 mm
