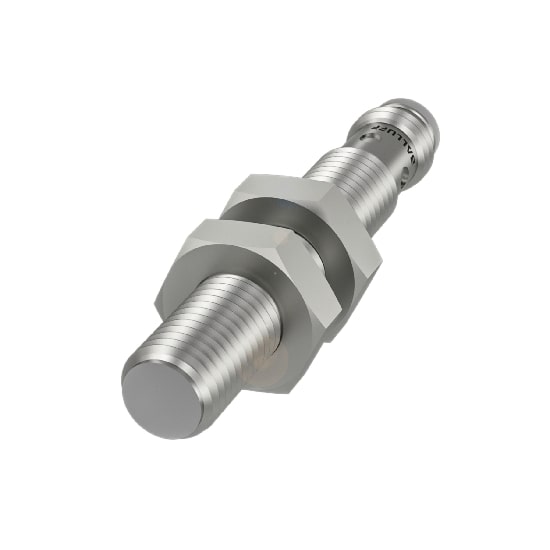

BALLUFF BES05P6 INDUCTIVE STANDARD SENSOR
- Model: BES05P6
BALLUFF BES05P6 FEATURES
- Connection: M8x1-Male, 3-pin
- Operating temperature: -40 to 85 °C
- IP rating: IP68
- Base type deviation: Pot core with 2K coating
- Shielded and unshielded versions
- Plug or cable connection
BALLUFF BES05P6 INTRODUCTION
Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.
The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES05P6 INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES00L2 and BES00L3 models in the BALLUFF Inductive Standard Sensors.
BALLUFF BES05P6 CERTIFICATIONS
Inductive Sensors : Interface | |
Output Characteristic | PNP normally open (NO) |
Inductive Sensors : Electrical Connection | |
Connection | M8x1-Male, 3-pin |
Polarity Reversal Protected | Yes |
Inductive Sensors : Electrical Data | |
Protection Class | II |
Ripple | 10 % |
Switching Frequency | 5000 Hz |
Operating Voltage Ub | 10 to 30 VDC |
Current (Ie) | 200 mA |
Inductive Sensors : Range/Distance | |
Measuring Range | 2 mm |
Assured Operating Distance Sa | 1.6 mm |
Real Switching Distance sr | 2 mm |
Inductive Sensors : Physical and Environmental Characteristics | |
Dimension | Ø 8 x 50 mm |
Weight | - |
Installation | for flush mounting |
Operating Temperature | -40 to 85 °C |
Housing | Stainless steel |
IP Rating | IP68 |
Tightening Torque | 8 Nm |
MTTF | 595 a |
Standards and Approvals | CE, UKCA, cULus, WEEE, IEC 60947-5-2 |
