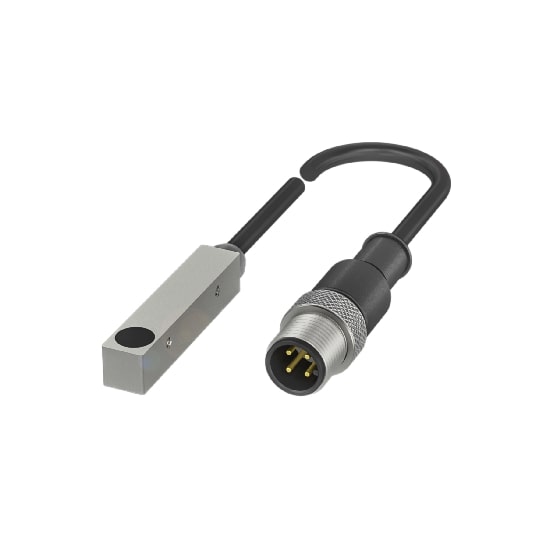

BALLUFF BES05RW INDUCTIVE STANDARD SENSOR
BALLUFF BES05RW INDUCTIVE STANDARD SENSOR
- Model: BES05RW
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
Introduction
Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.
The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.
Certifications
Features
- Connection: M12x1-Male, 4-pin, A-coded, Cable with connector, 0.3 m, PUR
- Operating temperature: -25 to 70 °C
- IP rating: IP67
- Application: Object detection
- Operating mode: SIO Mode, IO-Link Mode
- IO-Link Profil IDs: 0x0001 SSP0
- Shielded and unshielded versions
- Plug or cable connection
Sensor : Basic features | |
Approval/Conformity | CE, UKCA, cULus, WEEE |
Basic standard | IEC 60947-5-2 |
Sensor : Display/Operation | |
Function Indicator | Yes |
Power Indicator | No |
Sensor : Electrical Connection | |
Cable diameter D | 2.9 mm |
Cable length L | 0.3 m |
Number of conductors | _ |
Sensor : Electrical Data | |
Operating Voltage Ub | 10 to 30 VDC |
Output Resistance Ra | _ |
Protection Class | II |
Switching Frequency | 1200 Hz (SIO mode) |
Sensor : Environmental Conditions | |
EN 60068-2-27, Shock | Half-sinus, 30 g , 11 ms |
EN 60068-2-6, Vibration | 55 Hz, amplitude 1 mm, 3x30 min |
Sensor : Functional Safety | |
MTTF (40 °C) | 106 a |
Sensor : Interface | |
Switching Output | 2x PNP/NPN/push-pull NO/NC |
Sensor : Material | |
Housing Material | Zinc, Die casting, Nickel-free coated |
Material Jacket | PUR |
Material Sensing Surface | PBT |
Sensor : Mechanical Data | |
Dimension | 44 x 8 x 8 mm |
Installation | for flush mounting |
Size | 8x8 |
Sensor : Range/Distance | |
Assured Operating Distance Sa | _ |
Rated Operating Distance Sn | 2 mm |
Real Switching Distance sr | _ |
